User Manual for Night Detective 3x Quest 3M Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Night Detective 3x Quest 3M Night
- Product category: NV Monoculars & Multi-Systems Night Detective
- Brand: Night Detective
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Detective NV Monoculars & Multi-Systems
|
User manual for the Night Detective 3x Quest 3M Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Detective product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Detective user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Detective product will considerably shorten its lifespan!
|

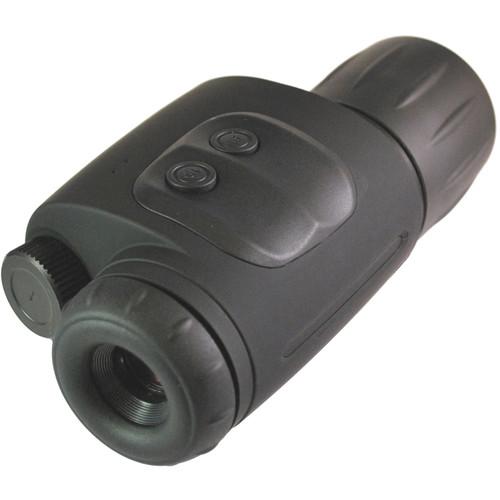

Product description The 3x Quest 3M Night Vision Monocular with black body from Night Detective has a 1st Generation intensifier tube with 24-30 lp/mm resolution, and features a multicoated 40mm f/1.2 lens system with 3x magnification, 12° angular field of view, 8" minimum focus distance water resistant construction. The 1st generation tube with provides a green and white images, the built-in infrared illumination helps you see objects and targets in complete darkness. With 3x magnification and 12° angular field of provide a good trade-off between the ability to see a magnified scene with a large enough field of view to see a more complete picture and minimal image jitter due to inherent unsteadiness of hands. If you accidentally become exposed to bright light while using the Quest 3M, the Automatic Bright Light Cut-off function will instantly turn off the device to prevent intensifier tube damage and momentary flash blindness to your eyes.
The water resistant housing with wide operating temperature range allows using this device during camping, wildlife observation and training sessions in a variety of outdoor conditions, including rain, humidity and temperature fluctuations. Additionally, the housing has a smooth rubberized armoring with an attached padded hand strap. The hand strap tightly binds your hand to the body of the Quest 3M and allows you holding the it effortlessly while freeing up your index and middle fingers to operate the device's menu. Also included with main unit is a soft case and objective lens cap. - Intensifier Tube and Optical Performance
-
- 1st Generation intensifier tube
- 24-30 lp/mm resolution
- Multicoated 40mm f/1.2 lens system
- 3x magnification
- 12° angular field of view
- 8" minimum focus distance
- Use and Handling
-
- Integrated IR illuminator allows visibility in total darkness
- Automatic Bright-Light Cut-off feature prevents tube damage and flash blindness
- Diopter adjustment
- Construction Details
-
- Smooth rubberized armoring
- Knurled objective lens housing for easy focusing
- Hand strap allows tight non-slip grip with freedom to operate menus
- Water resistant housing allows using in adverse weather conditions
UPC: 839912000019 In the Box Night Detective 3x Quest 3M Night Vision Monocular (Black) - Soft Case
- Objective Lens Cap
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Detective 3x Quest 3M Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Detective Quest 3M Specs | Intensifier Tube | Generation: 1
Resolution: 24-30 lp/mm | | Magnification | 3x | | Angle of View | 12° | | Field-of-View (@ 1000 Yds) | 628' @ 1000 yd (191 @ 1000 m) | | Minimum Focus Distance | 8.0" (20.3 cm) | | Lens System | 40mm f/1.2 | | Diopter Adjustment | Yes | | Infrared Illuminator | Yes | | Power Source | 1 x CR-123A battery | | Weatherproofing | Water resistant | | Operating Temperature Range | -4 to 104°F (-20 to 40°C) | | Dimensions | 7.1 x 2.2 x 3.0" (17.8 x 5.6 x 7.6 cm) | | Weight | 1 lb (453 g) | | | | Package Weight | 1.42 lb | | Box Dimensions (LxWxH) | 9.8 x 4.5 x 4.35" |
