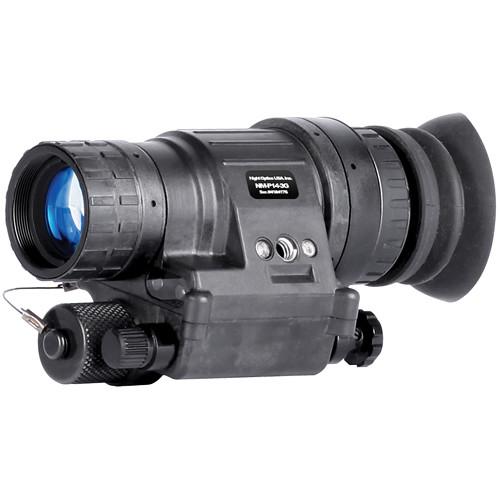

User Manual for Night Optics 1x Gated Gen 3 Sentry 14 Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Night Optics 1x Gated Gen 3
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
|
User manual for the Night Optics 1x Gated Gen 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The Gen 3 Gated Sentry 14 Night Vision Monocular from Night Optics features a gated Generation 3 intensifier tube, a multicoated 1x 26mm f/1.2 lens system, a built-in light sensor, a built-in infrared illuminator, and a waterproof housing submersible to 66'. While the Generation 3 tube provides very high resolution, brightness and image clarity, the gating tube operation helps extend life of the tube and improve resolution in higher lighting conditions. The 1x 26mm f/1.2 lens system allows a 40° wide angular field of view but can be upgraded to 2x, 3x, or 5x magnification with a lower field of view using optional objective lenses. This NVD can be used as handheld device, mounted to a riflescope or a head mount with optional adapters. To allow comfortable viewing experience for anyone wearing glasses, it provides a long 27 mm eye relief, a diopter adjustment and a wide rim rubber eyecup. The minimum focus with standard lens system is 10".
Beyond optical highlights, this night vision monocular features an number useful functions. The automatic brightness control maintains constant image brightness while you are moving through environments with various lighting conditions. The manual gain helps you control image brightness in very dark environments or when you are trying to improve visibility of long range targets. On the other hand, reducing gain manually can help improve image detail, resolution, and reduce saturation when you enter a scene with abundant infrared illumination. If you experience a burst of bright light which may damage or burn the intensifier tube or cause flash blindness to your eyes, the Bright Light Cut-off function will automatically turn off the intensifier tube. If you find yourself on a very fast-paced mission or training session, the automatic shut off function helps you save time and battery life by turning your device off when you detach it from a rifle, a head mount, or just hold it in an upright position. Additionally, for your convenience there are an infrared momentary and constant-on illumination modes, and a low battery and IR-on indicators.
The Sentry 14 Monocular is waterproof to 66', has a rubber eyecup, and includes a hard case, one sacrificial filter to protect the objective lens, one demist shield to protect the eyepiece optics from environment, and one AA battery. - Night Vision Features
-
- Gated Generation 3 intensifier tube
- Built-in infrared illuminator
- Built-in light sensor
- Optical Performance
-
- 1x magnification
- Upgradable to 2x, 3x or 5x with optional objectives
- 40° angular field of view
- 26mm f/1.2 lens system
- 10" minimum focus distance
- 27 mm eye relief
- +2 to -6 dioptric adjustment
- Use and Handling
-
- Automatic brightness control
- Bright Light Cut-off
- Manual gain control
- Low-battery and IR-on indicators
- Momentary or constant-on infrared illumination modes
- Auto off function when unmounted or in upright position
- Mountable to rifle or head mount with optional adapters
- Camera is adaptable to the eyepiece with optional mount
- Construction Details
-
- Rubber eyecup
- Waterproof to 66'
UPC: 029757000750 In the Box Night Optics 1x Gated Gen 3 Sentry 14 Night Vision Monocular - Hard Case
- Sacrificial Filter
- Demist Shield
- AA Battery
- Limited 2-Year USA Warranty
- Limited 1-Year International Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 1x Gated Gen 3 Sentry 14 Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NM-P14-3G Specs | Intensifier Tube | Gen: 3, gated | | Magnification | 1x standard
2x, 3x, or 5x optional | | Angle/Field of View | 40° | | Linear Field of View | 2184' @ 1000 yd (728 @ 1000 m) | | Lens System | 26mm f/1.2 | | Minimum Focus Distance | 10" (25 cm) | | Eye Relief | 27 mm | | Dioptric Correction | +2 to -6 | | Infrared Illuminator | Built-in | | Battery / Runtime | 1 x AA battery / 40 hr max | | Weatherproofing | Waterproof to 66' (20.1 m) | | Temperature Ranges | -4 to 122°F (-20 to 50°C) | | Dimensions | 4.5 x 2.25 x 2" (114 x 57 x 51 mm) | | Weight | 13.8 oz (391 g) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 9.1 x 8.0 x 4.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
