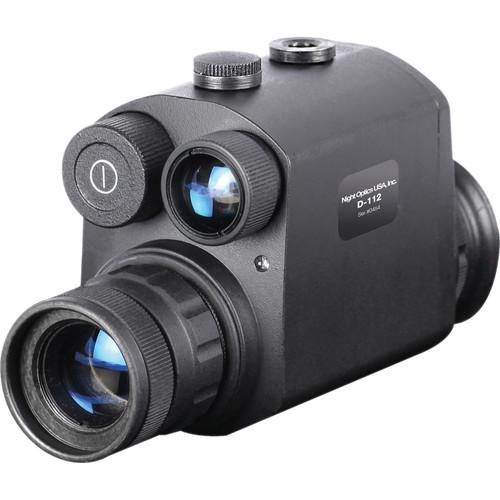

User Manual for Night Optics 1x GEN 1 Guardian Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Night Optics 1x GEN 1 Guardian
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
|
User manual for the Night Optics 1x GEN 1 Guardian contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The 1x GEN 1 Guardian Night Vision Monocular from Night Optics features a High Performance Generation 1 night vision tube with a resolution of 40 lp/mm, and Bright Light Cut-off function. The High Performance Generation 1 intensifier tube offers higher resolution, brightness, and image clarity compared to Standard Generation 1 tubes. To allow a 40° angular field of view, the monocular is equipped with 1x multicoated 25mm f/1.2 lens system, and has a minimum focus of 10". If this device is accidentally exposed bright light that could damage the activated intensifier tube and overwhelm your eye, the Bright Light Cut-off will instantly shut down the tube.
Beyond these highlights, there is a built-in infrared illuminator to provide visibility in total darkness. If you need to change magnification, this NVD can be converted to a 3.6x device using an optional lens kit and can still be used hands-free or mounted. The construction features a weatherproof housing, a diopter adjustment and a rubber eyeguard. Also included with the binocular are a soft case and one CR-123A battery. - Optical Performance
-
- 1x magnification with 25mm f/1.2
- Convertible to 3.6x with optional lens kit
- Multicoated optical elements
- 40° angle of view
- 10" minimum focus
- Intensifier Tube
-
- High Performance Generation 1
- 40 lp/mm minimum resolution
- Use and Handling
-
- Built-in infrared illuminator
- Bright Light Cut-off
- Handheld or mounted operation
- Camera is attachable via optional adapter
- Diopter ±4
- Construction Details
-
- Rubberized eyecup
- Weatherproof housing
UPC: 297570016894 In the Box Night Optics 1x GEN 1 Guardian Night Vision Monocular - Soft Case
- CR-123A Battery
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 1x GEN 1 Guardian Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NM-112-1GX Specs | Intensifier Tube | Gen 1 | | Magnification | 1x | | Angle/Field of View | 40° | | Lens System | 25mm f/1.2 | | Minimum Focus Distance | 10" (25 cm) | | Eye Relief | Not provided by manufacturer | | Dioptric Correction | ±4 | | Infrared Illuminator | Built-in | | Battery / Runtime | 1 x CR-123A / 30 hr max | | Weatherproofing | Weatherproof | | Temperature Ranges | -4 to 113°F (-20 to 45°C) | | Dimensions | 5.3 x 2.8 x 2.3" (13.4 x 7.1 x 5.8 cm) | | Weight | 13 oz (368.5 g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 10.1 x 6.5 x 4.6" |
