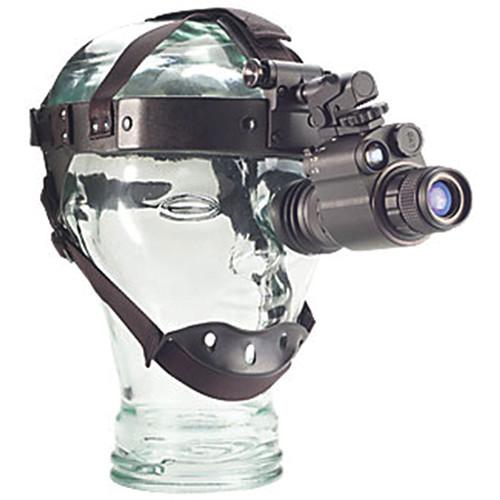

User Manual for Night Optics 1x GEN 2 Ambia Night Vision Monocular with Head Mount Click to enlarge the picture
Contents of the user manual for the Night Optics 1x GEN 2 Ambia
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
|
User manual for the Night Optics 1x GEN 2 Ambia contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The 1x GEN 2 Ambia Night Vision Monocular with Head Mount features Generation 2 intensifier tube with a resolution of 28-38 lp/mm. Generation 2 intensifier tubes provide brighter, clearer and softer green color image than Generation 1 tubes. To allow you to use the tube to its full capacity, this night vision device is equipped with a multicoated 25mm f/1.1 lens system, has a 1x magnification, 40° angular field of view, and a minimum focus of 10". If you need more magnification and want to see more detail in low light conditions, the front lens can be changed to an optional 3.6x 80mm f/1.6 objective.
Beyond these optical highlights, there are a built-in infrared illuminator, a diopter adjustment, a battery and IR indicators. This NVD can be worn with the included head mount or attached to a rifle with an optional mount. The housing is weather-resistant and has a rubber eyeguard. - Optical Features
-
- 1x magnification
- 25mm f/1.1 lens system
- 40° angular field of view
- 1099' @ 1000 yd linear field of view
- +2 to -4 diopter adjustment range
- 10" minimum focus
- Intensifier Tube
-
- Generation 2
- Resolution: 28-38 lp/mm
- Use and Handling
-
- Built-in infrared illuminator
- Handheld or head mount operation
- Mountable to a rifle with optional adapter
- Can be connected to a camera using optional adapter
- Low battery indicator
- Infrared indicator
- Construction Details
-
- Winged rubber eyeguard
- Weatherproof
In the Box Night Optics 1x GEN 2 Ambia Night Vision Monocular with Head Mount - Hard Case
- Head Mount
- CR-123A Battery
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 1x GEN 2 Ambia Night Vision Monocular with Head Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NG-300-2S Specs | Intensifier Tube | Gen: 2
Resolution: 28 - 38 lp/mm | | Magnification | 1x | | Angle/Field of View | 1099' @ 1000 yd (728 @ 1000 m) | | Lens System | 25mm f/1.1 | | Minimum Focus Distance | 10" (25 cm) | | Eye Relief | Not provided by manufacturer | | Dioptric Correction | +2 to -4 | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x CR-123A / 40 hr | | Weatherproofing | Weatherproof | | Temperature Ranges | -4 to 113°F (-20 to 45°C) | | Dimensions | 5.5 x 1.8 x 2.5" (14 x 4.6 x 6.4 cm) | | Weight | 16 oz (454 g) |
