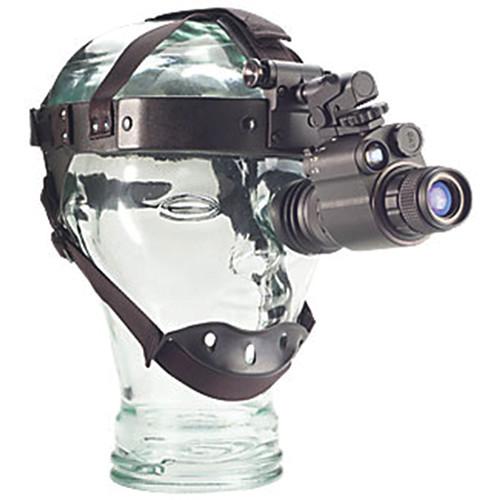

User Manual for Night Optics 1x GEN 2 HP Ambia Night Vision Monocular with Head Mount Click to enlarge the picture
Contents of the user manual for the Night Optics 1x GEN 2 HP
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
|
User manual for the Night Optics 1x GEN 2 HP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The 1x GEN 2 Ambia HP Night Vision Monocular with Head Mount features High Performance Generation 2 intensifier tube with a resolution of 51-70 lp/mm. The High Performance Generation 2 intensifier tubes provide better resolution, brighter, clearer and softer green color image than Generation 1 or 2 tubes. To allow you to use the tube for viewing 40° angular field of view, this night vision device is equipped with a multicoated 25mm f/1.1 lens system with 1x magnification. If you are willing to trade your field of view for more magnification, the front lens can be changed to an optional 3.6x 80mm f/1.6 objective. With larger objective lens you will be able to see more image detail in low light conditions.
Beyond these optical highlights, there is a built-in multi-stage infrared illuminator, a diopter adjustment, and battery and IR indicators. This NVD can be worn with the included head mount or attached to a rifle with an optional mount. The housing is weather-resistant and has a rubber eyeguard. - Optical Features
-
- 1x magnification
- 25mm f/1.1 lens system
- 40° angular field of view
- 1099' @ 1000 yd linear field of view
- +2 to -4 diopter adjustment range
- 10" minimum focus
- Intensifier Tube
-
- High performance Generation 2
- Resolution: 51-70 lp/mm
- Illuminator
-
- Type: infrared LED
- Wavelength: 805 nm
- Power: high, medium and low outputs
- Use and Handling
-
- Handheld or head mount operation
- Mountable to a rifle with optional adapter
- Can be connected to a camera using optional adapter
- Low battery indicator
- Infrared indicator
- Construction Details
-
- Winged rubber eyeguard
- Weatherproof
In the Box Night Optics 1x GEN 2 HP Ambia Night Vision Monocular with Head Mount - Hard Case
- Head Mount
- CR-123A Battery
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 1x GEN 2 HP Ambia Night Vision Monocular with Head Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NG-300-2H Specs | Intensifier Tube | Gen 2 High Performance
Resolution: 51-70 lp/mm | | Magnification | 1x | | Angle/Field of View | 1099' @ 1000 yd (728 @ 1000 m) | | Lens System | 25mm f/1.1 | | Minimum Focus Distance | 10" (25 cm) | | Eye Relief | Not provided by manufacturer | | Dioptric Correction | +2 to -4 | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x CR-123A / 40 hr | | Weatherproofing | Weatherproof | | Temperature Ranges | -4 to 113°F (-20 to 45°C) | | Dimensions | 5.5 x 1.8 x 2.5" (14 x 4.6 x 6.4 cm) | | Weight | 16 oz (454 g) |
