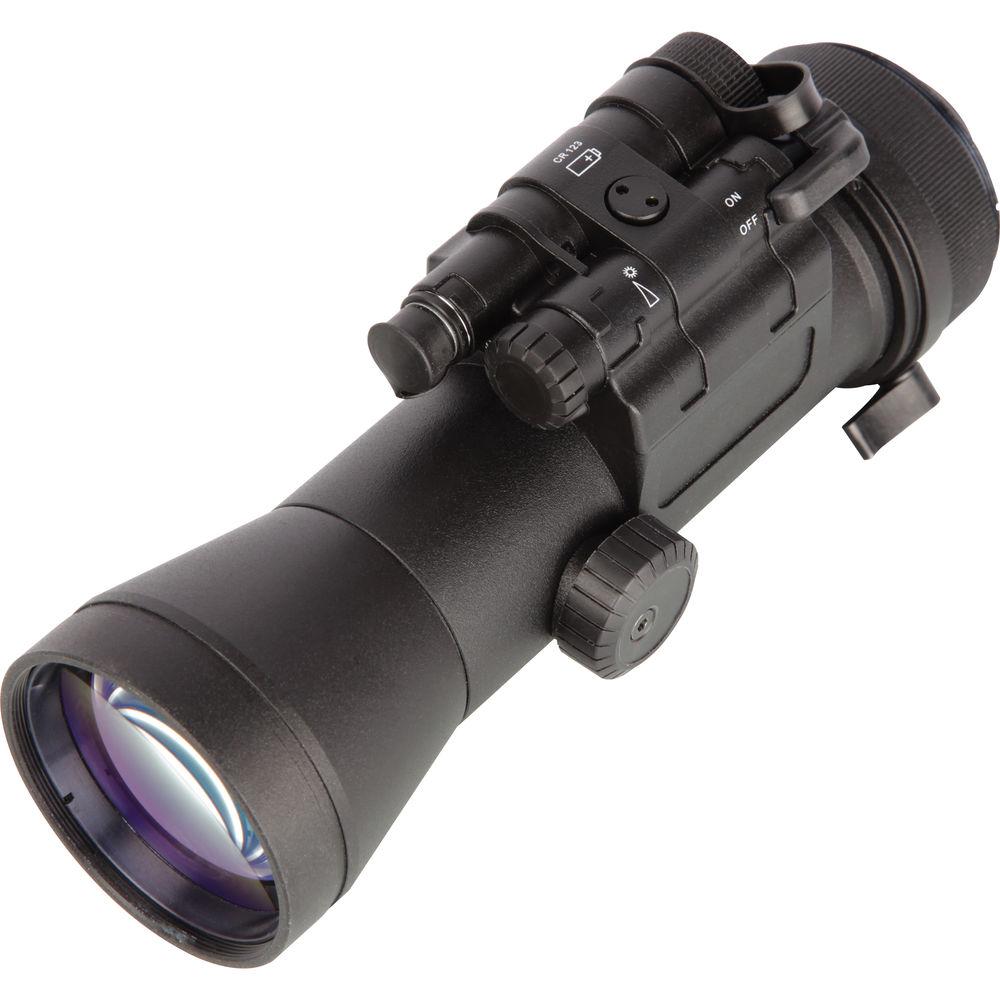

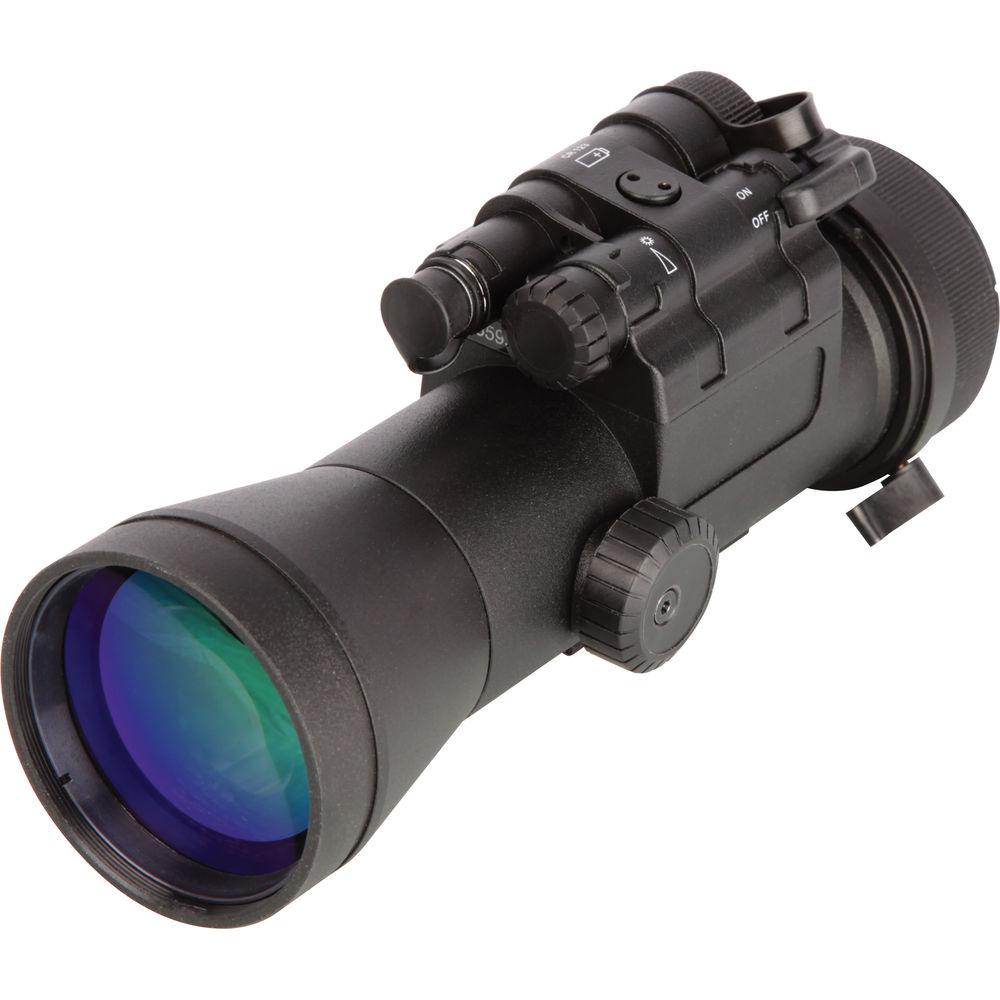

User Manual for Night Optics 1x Gen 2 Krystal 950L Black and White Night Vision Clip-On Sight Click to enlarge the picture
Contents of the user manual for the Night Optics 1x Gen 2 Krystal
- Product category: Day/Night Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Day/Night Systems
 |
User manual for the Night Optics 1x Gen 2 Krystal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The 1x Gen 2 Krystal 950L Black and White Night Vision Clip-On Sight from Night Optics features a Generation 2 tube with black and white images, resolution of 64 lp/mm, and supports 1-15x rifle scope zoom. While the Generation 2 night vision tube will enable you to see a brighter and clearer images than similar Generation 1 devices, the manual gain control allows adjusting image brightness on the go. In addition, this sight features multicoated High Definition (HD) optical elements which are made from higher purity optical glass and enhance image contrast and clarity, a 78 mm/f1.5 lens system, and 8.8 - 0.7° angular field of view. The minimum focus is 33' and the sight eyepiece has a 34 mm aperture.
Beyond these optical highlights, Krystal 950L Sight features a simple clip-on system which allows quick attachment to the day scope, and a integrated rail mount fro connection to the picatinny rail.
The housing is waterproof and has an integrated mount for optional IR illuminator. Also included with the sight are a clip-on mount, a mount adapter, a case, a flip-cap filter, and a CR123 battery. - Optical Features
-
- Use with 1-15x rifle scopes
- Lens system: 78 mm/f1.5
- Angle of View: 8.8 - 0.7°
- Minimum Focus Distance: 33'
- Multicoated High Definition (HD) optics increase contrast and clarity
- 34mm and 24 mm rear aperture options
- Intensifier Tube
-
- Gen 2 intensifier tube
- Black and white image
- Resolution: 64 lp/mm
- Color: black and white
- Use and Handling
-
- Manual gain control allows for on-the-fly image brightness adjustment
- Can be mounted to the front of daytime objective with a custom Night Optics throw lever
- Integrated rail mount allows mounting to the picatinny rail
- Construction Details
-
- Simple clip-on system allows quick attachment to the day scope
- Integrated mount for IR illuminator
- Weatherproof housing
In the Box Night Optics 1x Gen 2 Krystal 950L Black and White Night Vision Clip-On Sight - Case
- Battery
- Clip-On
- Mount Adaptor
- Flip-Cap with Daylight Filter
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 1x Gen 2 Krystal 950L Black and White Night Vision Clip-On Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NS-9502BWL Specs | Magnification | 1x
Max rifle scope zoom: 15x | | Intensifier Tube | Gen: 2
Resolution: 64 lp/mm
Image Color: black and white | | Objective Lens Diameter | 78mm | | Angle of View | 8.8 - 0.7° | | Field-of-View (@ 1000 Yds) | 463 - 39' @ 1000 yd (154.4 - 13 @ 1000 m) | | Minimum Focus Distance | 33' (10 m) | | Filter Size | Not provided by manufacturer | | Weatherproofing | Weatherproof | | Power Source | 1 x CR123 (3V) / 60 hr | | Infrared Illuminator | Optional | | Operating Temperature | -40 to 122°F (-40 to +50°C) | | Dimensions | 8.5 x 3.5 x 2.6' (215 x 88 x 66 mm) | | Weight | 23 oz (652 g) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
