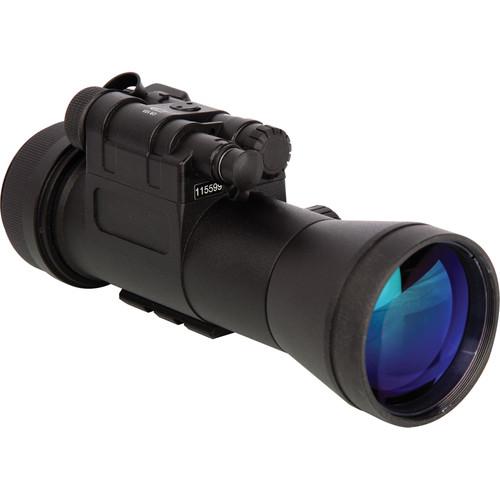

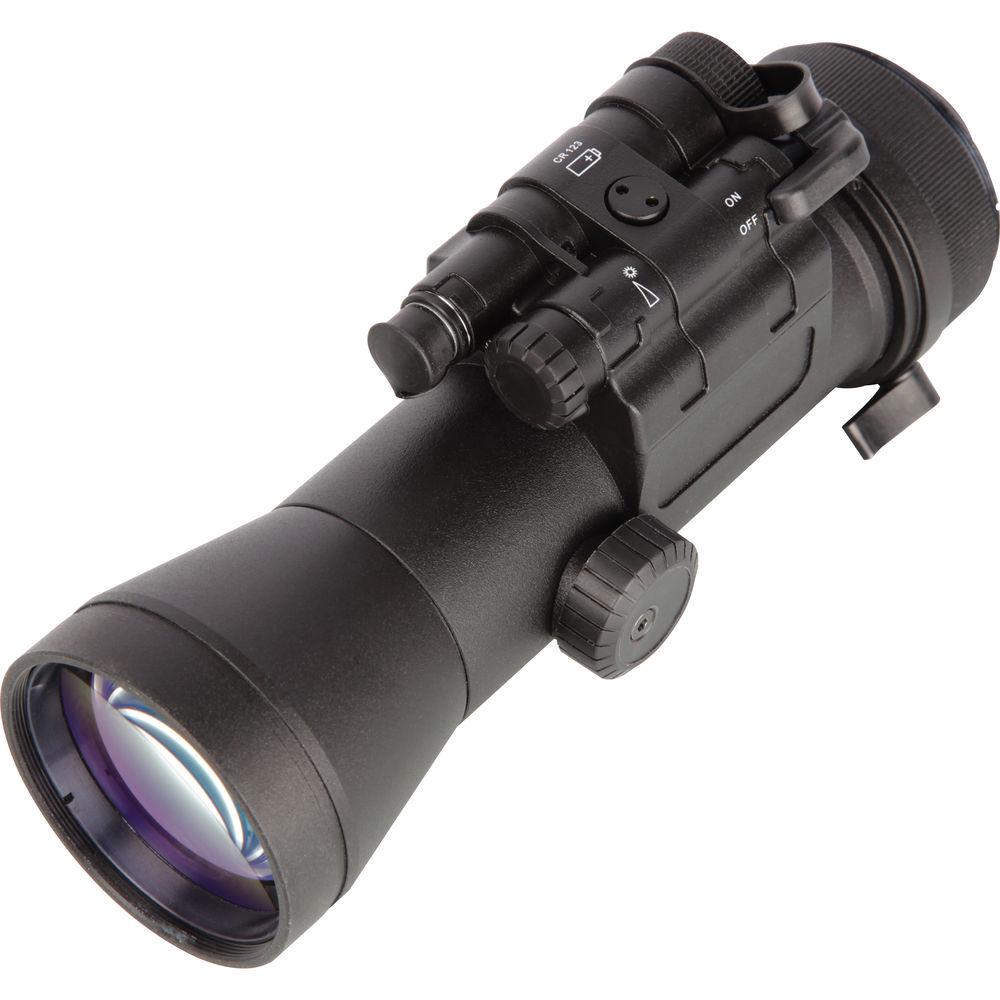

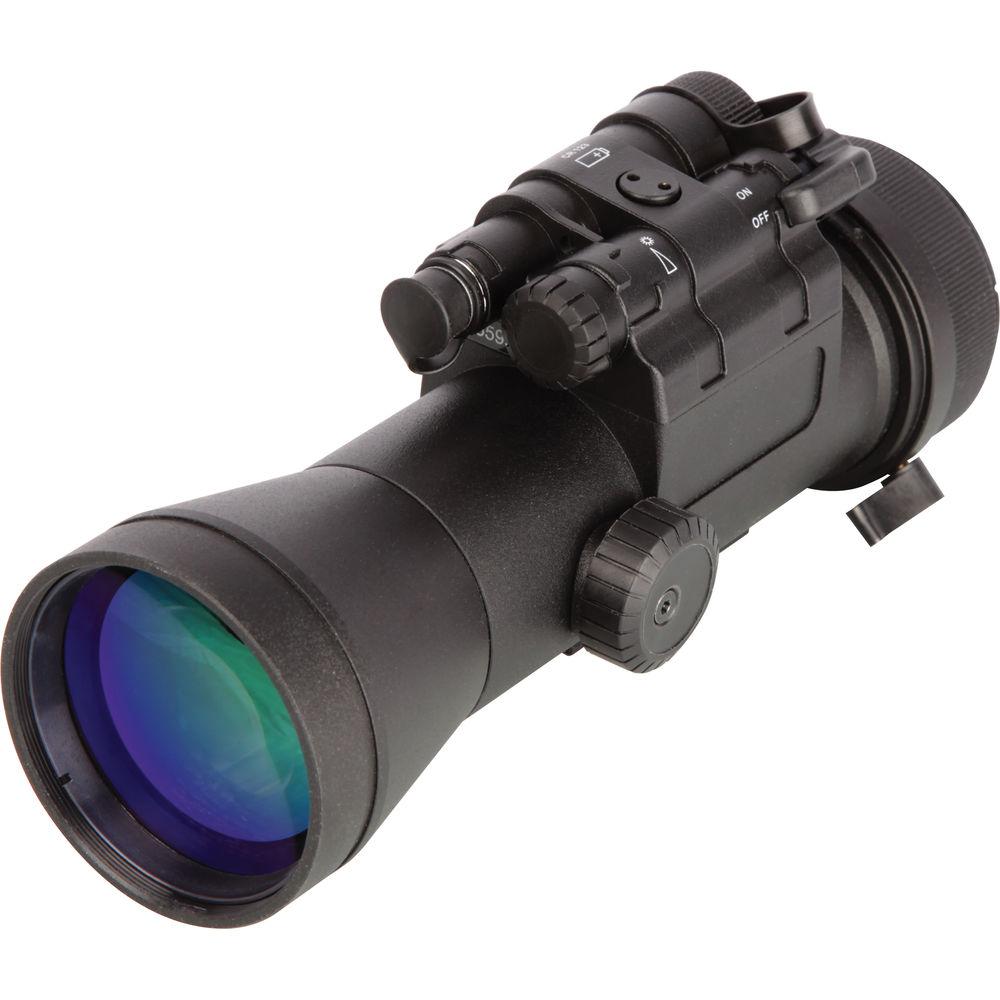

Product description The 1x Gen 3 Krystal 950 Gated Night Vision Clip-On Sight from Night Optics features a Generation 3 gated intensifying tube with resolution of 64 lp/mm, suitable for rifle scopes with 1-15x magnification. While the Generation 3 night vision tube will enable you to see a brighter and clearer image with a softer color tone, the auto-gating allows to maintain optimal resolution and contrast at all times, and a manual gain control allows adjusting image brightness on the go. In addition to the advanced intensifying tube, this sight features multicoated High Definition (HD) optical elements which are made from higher purity optical glass and enhance image contrast and clarity, a 78mm f/1.5 lens system, and 8.8 - 0.7° angular field of view. The minimum focus is 33' and the sight eyepiece has a 24mm rear aperture.
Beyond these optical highlights, Krystal 950 Sight features a simple clip-on system which allows quick attachment to the day scope, and an integrated rail mount for connection to the Picatinny rail.
The housing is weatherproof and has an integrated mount for optional IR illuminator. Also included with the sight are a clip-on mount, a mount adapter, a case, a flip-cap filter, and a CR123 battery. - Optical Features
-
- Use with 1-15x rifle scopes
- Lens system: 78mm f/1.5
- Angle of View: 8.8 - 0.7°
- Minimum Focus Distance: 33'
- Multicoated High Definition (HD) optics increase contrast and clarity
- 24mm rear aperture
- Intensifier Tube
-
- Gen 3 intensifier tube
- Resolution: 64 lp/mm
- Gating allows best resolution and contrast at all times
- Use and Handling
-
- Manual gain control allows for on-the-fly image brightness adjustment
- Can be mounted to the front of daytime objective with a custom Night Optics throw lever
- Integrated rail mount allows mounting to the picatinny rail
- Construction Details
-
- Simple clip-on system allows quick attachment to the day scope
- Integrated mount for IR illuminator
- Weatherproof housing
In the Box Night Optics 1x Gen 3 Krystal 950 Gated Night Vision Clip-On Sight - Case
- Battery
- Clip-On
- Mount Adapter
- Flip-Cap with Daylight Filter
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 1x Gen 3 Krystal 950 Gated Night Vision Clip-On Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NS-9503GM Specs | Magnification | 1x
Max rifle scope zoom: 15x | | Intensifier Tube | Type: Gen 3 gated
Resolution: 64 lp/mm | | Objective Lens Diameter | 78mm | | Angle of View | 8.8 - 0.7° | | Field-of-View (@ 1000 Yds) | 463 - 39' @ 1000 yd (154.4 - 13 @ 1000 m) | | Minimum Focus Distance | 33' (10 m) | | Filter Size | Not provided by manufacturer | | Weatherproofing | Weatherproof | | Power Source | 1 x CR123 / 60 hr | | Infrared Illuminator | Optional | | Operating Temperature | -40 to 122°F (-40 to +50°C) | | Dimensions | 8.5 x 3.5 x 2.6' (215 x 88 x 66 mm) | | Weight | 23 oz (652 g) |
