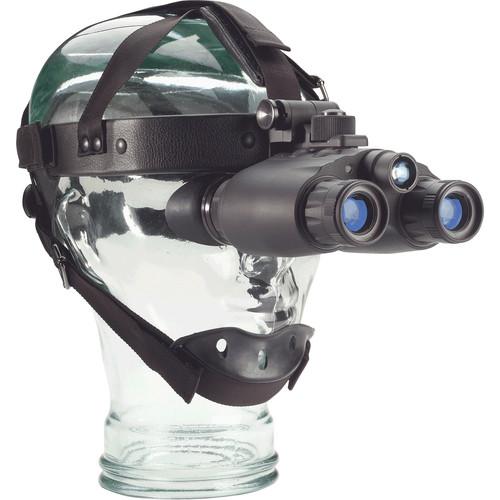

User Manual for Night Optics 1x Thin Film Gated GEN 3 Iris 321 Night Vision Binocular with Head Mount Click to enlarge the picture
Contents of the user manual for the Night Optics 1x Thin Film Gated
- Product category: Night Vision Binoculars Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Night Vision Binoculars
|
User manual for the Night Optics 1x Thin Film Gated contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The 1x Thin Film Gated GEN 3 Iris 321 Night Vision Binocular with Head Mount from Night Optics features a thin film gated Generation 3 night vision dual tube design with a resolution of 64-72 lp/mm, and automatic gain and brightness controls. This Generation 3 night vision tubes will provide a highest resolution, brightness and highest clarity images compared to all other generations intensifier tubes while the automatic brightness and gain controls will maintain constant image brightness. In addition, this binocular features a multicoated 26mm f/1.2 lens system, a 1x magnification, a 40° angular field of view, and a minimum focus of 10". Beyond these optical highlights, there are a built-in infrared illuminator and patented wide exit pupil design to compensate for interpupillary adjustment.
This NVD can be converted to a 3.6x device using an optional lens kit and worn hands-free with the included head mount. It has a weatherproof housing, a diopter adjustment and winged rubber eyeguard. Also included with the binocular are a hard case and a CR-123A battery. - Optical Features
-
- Magnification: 1x
- Lens system: 26mm f/1.6
- Angle of View: 40°
- Minimum Focus Distance: 10"
- Intensifier Tube
-
- Thin film Gen 2 offers best resolution, brightness and clarity
- Dual intensifier tube design provides redundancy in critical situations
- Resolution: 64-72 lp/mm
- Use and Handling
-
- Automatic brightness control
- Built-in infrared illuminator
- Wide exit pupil compensates for interpupillary adjustment
- Diopter adjustment: ±4
- Construction Details
-
- Rubber winged eyeguard
- Weatherproof housing
In the Box Night Optics 1x Thin Film Gated GEN 3 Iris 321 Night Vision Binocular with Head Mount - Hard Case
- Head Mount
- CR-123 Battery
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 1x Thin Film Gated GEN 3 Iris 321 Night Vision Binocular with Head Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NG-321-3G Specs | Magnification | 1x | | Intensifier Tube | Thin film 3d Generation
Resolution: 64-72 lp/mm | | Objective Lens Diameter | 26mm | | Lens System | 26mm f/1.2 | | Angle of View | 40° | | Field-of-View (@ 1000 Yds) | 2106' @ 1000 yd (702 @ 1000 m) | | Minimum Focus Distance | 10" (25 cm) | | Diopter Adjustment | ±4 | | Weatherproofing | Weatherproof | | Power Source | 1 x CR-123 (3 V) / 30 hr | | Infrared Illuminator | Built-in | | Operating Temperature | -4 to 113°F (-20 to 45°C) | | Dimensions | 5.8 x 4 x 2.2' (147 x 101 x 55 mm) | | Weight | 21 oz (600 g) |
