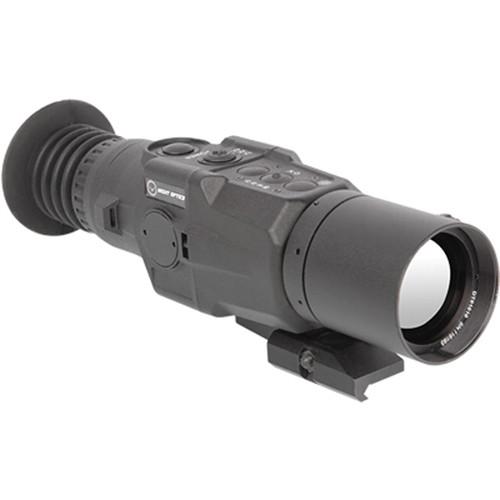

User Manual for Night Optics 2x Panther 336 Thermal Riflescope Click to enlarge the picture
Contents of the user manual for the Night Optics 2x Panther 336 Thermal
- Product category: Night Vision Riflescopes Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Night Vision Riflescopes
|
User manual for the Night Optics 2x Panther 336 Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description Night Optics eliminates the need to carry separate scopes for day and night with the versatile and easy to use 2x Panther 336 Thermal Riflescope. The system can be set to detect ambient light and automatically switch to thermal mode when you need it, with a manual mode if you require more control. Independent reticle control lets you choose from two configurations and five colors to tailor it to your preferences and the situation. The scope has a 2x optical magnification and up to 4x digital zoom, for a maximum magnification of up to 8x. A dedicated zoom button makes it easy to choose the precise magnification required for close, medium and long range targets.The Panther features a 336x256 VOx II microbolometer to detect thermal signatures. Its 600x800 AMOLED displays black-hot, white-hot, or sepia, with seven different color schemes. A video-out port provides the ability to connect an external display or recording device. The scope can detect activity out to as much as 4900', with the ability for identification at 1000'. The versatility of the Panther allows you to go after your favorite game in all light conditions, with special attention at dawn and dusk when many game animals are most active, but visibility is limited. - Imaging Performance
-
- 336x256 VOx II Microbolometer core
- 17µm pixel size
- 60 Hz refresh rate
- Optical magnification: 2x
- Digital zoom: 1x, 2x, 4x, dedicated button for fast selection
- Germanium glass objective lens
- Lens system: 50mm f1.2
- Angle of view: 12°x9°
- 33 ft close focus distance
- Activity detection: ±4900' (1500 m), max
- Spectral response sensitivity: 7.5-13.5µm
- System Features
-
- 600x800 OLED color display
- NTSC/PAL video output enables connection to optional external devices to save or display images
- Polarity control: White Hot, Black Hot, Sepia
- Color schemes: No scheme, Red-Green, Red-Blue, Spectrum 1 / 2 / 3, Black-Yellow
- Digital windage and elevation impact point correction
- Automatic or manual shutter release options
- Less than 2 second start up time
- Auto-brightness control
- Battery indicator
- Reticles
-
- Select one of two reticle patterns, or no reticle
- Thin crosshair is clearly visible and won't obscure game
- Modified duplex crosshair with mil-dot indicators for ranging and hold-over
- Five color option: Green, Red, Yellow, White, Black
- Construction Details
-
- Anodized aluminum alloy housing
- O-ring sealed for water resistance
- Knurled focus wheel on front left for quick and easy adjustment
- Picatinny rail mount with spring-loaded quick-release lever
- Operating temperature: -40 to 140°F
- Weight: 24 oz, without batteries
- Tethered battery compartment cover
- Flip-down objective lens cover
UPC: 029757336507 In the Box Night Optics 2x Panther 336 Thermal Riflescope Quick-Release Picatinny Rail Mount Flip-Up Objective Cover Hard Storage Case 2 x CR123 Batteries Lens Cloth Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 2x Panther 336 Thermal Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics PTS-33650 Specs | Array Configuration | 336x256 VOx II Microbolometer | | Pixel Size | 17 µm | | Refresh Rate | 60 Hz | | Magnification | Optical: 2x
Digital zoom: 1x, 2x, 4x | | Angle of View | 12° x 9° | | Lens System | 50mm f/1.2 | | Reticle | Crosshair
Modified duplex crosshair with mil-dot | | Minimum Focus Distance | 33 ft (10 m) | | Dioptric Correction | -4 / +3 | | Eye Relief | 50 mm | | Exit Pupil | Not specified by manufacturer | | Display | Type: AMOLED
Resolution: 800x600 | | Video Output Format | NTSC / PAL | | Battery / Runtime | 2 x CR123A batteries / up to 4 hr, maximum | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Weatherproofing | Water resistant | | Dimensions | 10.2 x 3.6 x 3.1" (26.0 x 9.2 x 7.8 cm) | | Weight | 24.7 oz (700 g) |
