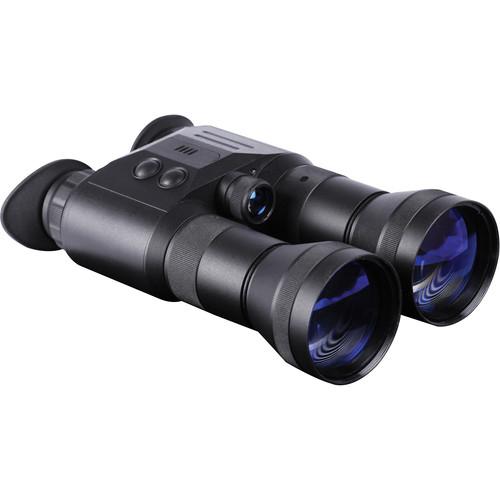

User Manual for Night Optics 3.6x GEN 2 Iris 221 Night Vision Binocular Click to enlarge the picture
Contents of the user manual for the Night Optics 3.6x GEN 2 Iris
- Product category: Night Vision Binoculars Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Night Vision Binoculars
|
User manual for the Night Optics 3.6x GEN 2 Iris contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The 3.6x GEN 2 Iris 221 Night Vision Binocular from Night Optics features a Generation 2 night vision dual tube design with a resolution of 28 - 38 lp/mm, and automatic brightness control. While the Generation 2 night vision tubes will enable you to see brighter and clearer images than Generation 1 devices, the automatic brightness and gain controls maintain constant image visibility and provide easy viewing experience. In addition, this binocular features a multicoated 80mm f/1.5 lens system, 3.6x magnification, a 15° angular field of view, and a minimum focus of 10'. Beyond these optical highlights, there is a built-in infrared illuminator and patented wide exit pupil design to compensate for interpupillary adjustment.
This NVD can be converted to a 1x device using an optional lens kit and worn with an optional head mount. It also features a weatherproof housing, a diopter adjustment and winged rubber eyeguard. Included with the binocular are a hard case and a CR-123A battery. - Optical Features
-
- Magnification: 3.6x
- Lens system: 80mm f/1.6
- Angle of View: 15°
- Minimum Focus Distance: 10'
- Intensifier Tube
-
- Gen: 2
- Dual intensifier tube design
- Resolution: 28 - 38 lp/mm
- Use and Handling
-
- Automatic brightness control
- Built-in infrared illuminator
- Wide exit pupil compensates for interpupillary adjustment
- Diopter adjustment: ±4
- Construction Details
-
- Rubber winged eyeguard
- Weatherproof housing
UPC: 029757013026 In the Box Night Optics 3.6x GEN 2 Iris 221 Night Vision Binocular - Hard Case
- CR-123 Battery
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 3.6x GEN 2 Iris 221 Night Vision Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NB-221-2S Specs | Magnification | 3.6x | | Intensifier Tube | Gen: 2
Resolution: 28 - 38 lp/mm | | Objective Lens Diameter | 80mm | | Lens System | 80mm f/1.6 | | Angle of View | 15° | | Field-of-View (@ 1000 Yds) | 790' @ 1000 yd (262 @ 1000 m) | | Minimum Focus Distance | 10'(3.3 m) | | Diopter Adjustment | ±4 | | Weatherproofing | Weatherproof | | Power Source | 1 x CR-123 (3 V) / 30 hr | | Infrared Illuminator | Built-in | | Operating Temperature | -4 to 113°F (-20 to 45°C) | | Dimensions | 7 x 5 x 2.5" (177 x 127 x 64 mm) | | Weight | 35 oz (1 kg) |
