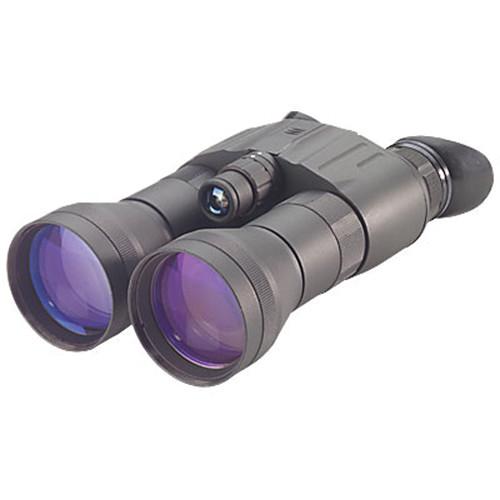

User Manual for Night Optics 3.6x Gen 2 Iris 225 Black and White Night Vision Binocular Click to enlarge the picture
Contents of the user manual for the Night Optics 3.6x Gen 2 Iris
- Product category: Night Vision Binoculars Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Night Vision Binoculars
|
User manual for the Night Optics 3.6x Gen 2 Iris contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The 3.6x Gen 2 Iris 225 Black and White Night Vision Binocular from Night Optics features a Generation 2 night vision dual tube design with a resolution of 28 - 38 lp/mm, and white phosphor technology. While the Generation 2 night vision tubes will enable you to see brighter and clearer images than Generation 1 devices, the white phosphor generates black and white instead of green images and thus provides a more pleasant viewing experience. In addition, this binocular features an 80mm f/1.6 lens system, 3.6x magnification convertible to 1x with an optional 26mm f/1.2 lens system, a 15° angular field of view, and a minimum focus of 10'. Beyond these optical highlights, there are an automatic brightness control and an integrated infrared illuminator.
The housing is weatherproof, and the eyepieces have a diopter adjustment and winged rubber eyecups. Also included with the binocular are a hard case and a CR-123 battery. - Optical Features
-
- Magnification: 3.6x
- Lens system: 80mm f/1.6
- Angle of View: 15°
- Minimum Focus Distance: 10'
- Intensifier Tube
-
- Gen: 2
- Dual intensifier tube design
- Resolution: 28 - 38 lp/mm
- Black and white image
- Use and Handling
-
- Automatic brightness control
- Integrated IR illuminator
- Diopter adjustment: +4 to -4
- Construction Details
-
- Rubber winged eyeguard
- Weatherproof housing
UPC: 029757013156 In the Box Night Optics 3.6x Gen 2 Iris 225 Black and White Night Vision Binocular - Hard Case
- CR-123 Battery
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 3.6x Gen 2 Iris 225 Black and White Night Vision Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NB-225-2BW Specs | Magnification | 3.6x | | Intensifier Tube | Gen: 2
Resolution: 28 - 38 lp/mm
Image Color: black and white | | Lens System | 80mm f/1.6 | | Objective Lens Diameter | 80mm | | Angle of View | 15° | | Field-of-View (@ 1000 Yds) | 860' @ 1000 yd (262 @ 1000 m) | | Minimum Focus Distance | 10'(3 m) | | Diopter Adjustment | ±4 | | Weatherproofing | Weatherproof | | Power Source | 1 x CR-123 (3 V) / 30 hr | | Infrared Illuminator | Built-in | | Operating Temperature | -4 to 113°F (-20 to 45°C) | | Dimensions | 7 x 5 x 2.5' (177 x 112 x 64 mm) | | Weight | 32 oz (907 g) |
