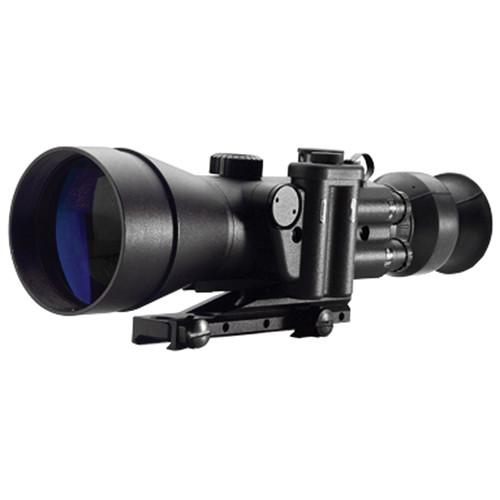

User Manual for Night Optics 4x GEN 2 BW Argus 740 Night Vision Rifle Scope with Dual Reticle Click to enlarge the picture
Contents of the user manual for the Night Optics 4x GEN 2 BW
- Product category: Night Vision Riflescopes Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Night Vision Riflescopes
|
User manual for the Night Optics 4x GEN 2 BW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The 4x GEN 2 BW Argus 740 Night Vision Rifle Scope with illuminated reticle from Night Optics features black and white imaging with Generation 2 intensifier tube, multicoated high performance optics, and a waterproof and fogproof housing. While Generation 2 tube provides the higher quality images and delivers much higher resolution and clarity than Generation 1 and 2 tubes, optical elements with multiple anti-reflection coatings provide high optical transmission which improves brightness. With white phosphor technology, the intensifier tube generates black and white images which are more natural to view and capture than green images. The 4x magnification lens system enables you to make observations with angular field of view of 10°. To enable you see bright images regardless of ambient light, this rifle scope is equipped with a large 100mm focal length objective for gathering more photons and can be outfitted with optional infrared illuminator for additional illumination of targets. To help your shooting precision, there is red and amber Mil Dot reticle with variable illumination brightness.
Beyond these optical highlights, the scope has a manual gain control and a Bright Light Cut-off function. The manual gain control helps to regulate image brightness and detail in various illumination settings and to accommodate for personal preferences. The Bright Light Cut-Off turns off the tube when it is exposed to light intensities above allowable threshold limit. This serves two functions: one, to protect the intensifier tube from over-exposure damage or burn out; and two, to protect your eyes from flash blindness due to a sudden burst of light. To account for projectile motion and drift due to wind, the scope has windage and elevation adjustments with anti-dust turret caps.
The scope also features a diopter adjustment, a wide rubber eyeguard, a recoil-resistant water and fogproof housing which is compatible with optional quick release picatinny mount. Also included with this NVD are two AA batteries, a hard carrying case, and a protective objective lens cap. - Optical Performance
-
- Magnification: 4x
- Lens system: 100mm f/1.5
- Objective lens focal length: 100mm
- Multicoated optical elements
- Angular Field of View: 10°
- Minimum Focus Distance: 33'
- Intensifier Tube
-
- Gen 2 offers images with high resolution, brightness, clarity
- White phosphor technology provides a more pleasant black and white image color
- Reticle
-
- Mil-dot reticle
- Red or amber color
- Adjustable illumination
- Use and Handling
-
- Windage 1/4 MOA per click and elevation 1/4" per click
- Manual gain control allows customized brightness or detail adjustment
- Auto Bright Light Cut-off prevents intensifier tube damage and flash blindness
- Camera can be connected to the eyepiece via an optional adapter
- Can be used with optional infrared illuminator
- Diopter adjustment: +3 to -4
- Construction Details
-
- Aluminum housing
- Recoil resistant
- Knurled focusing knob is located on the top
- Windage and elevation turrets with anti-dust caps
- Optional Picatinny rifle mount with a quick release
- Rubber eyeguard
- Waterproof and fogproof
In the Box Night Optics 4x GEN 2 BW Argus 740 Night Vision Rifle Scope with Dual Reticle - Lens Cap
- Hard Case
- 2 x AA Batteries
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 4x GEN 2 BW Argus 740 Night Vision Rifle Scope with Dual Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NS-740-2BW Specs | Intensifier Tube | Gen: 2
White phosphor: black and white images | | Magnification | 4x | | Angle/Field of View | 10° | | Linear Field of View | 525' @1000 yd (175 @ 1000 m) | | Lens System | 100mm f/1.5 | | Minimum Focus Distance | 33' (10 m) | | Windage Adjustment | 1/4 MOA per click | | Elevation Adjustment | 1/4" per click | | Reticle | Red / Amber Mil Dot | | Dioptric Correction | +3 to -4 | | Infrared Illuminator | Optional | | Battery / Runtime | 2 x AA /60 hr | | Weatherproofing | Water and fogproof | | Temperature Ranges | -40 to 122°F (-40 to 50°C) | | Dimensions | 9 x 4 x 3.5" (23 x 10.2 x 8.9 cm) | | Weight | 2.4 lb (1.1kg) |
