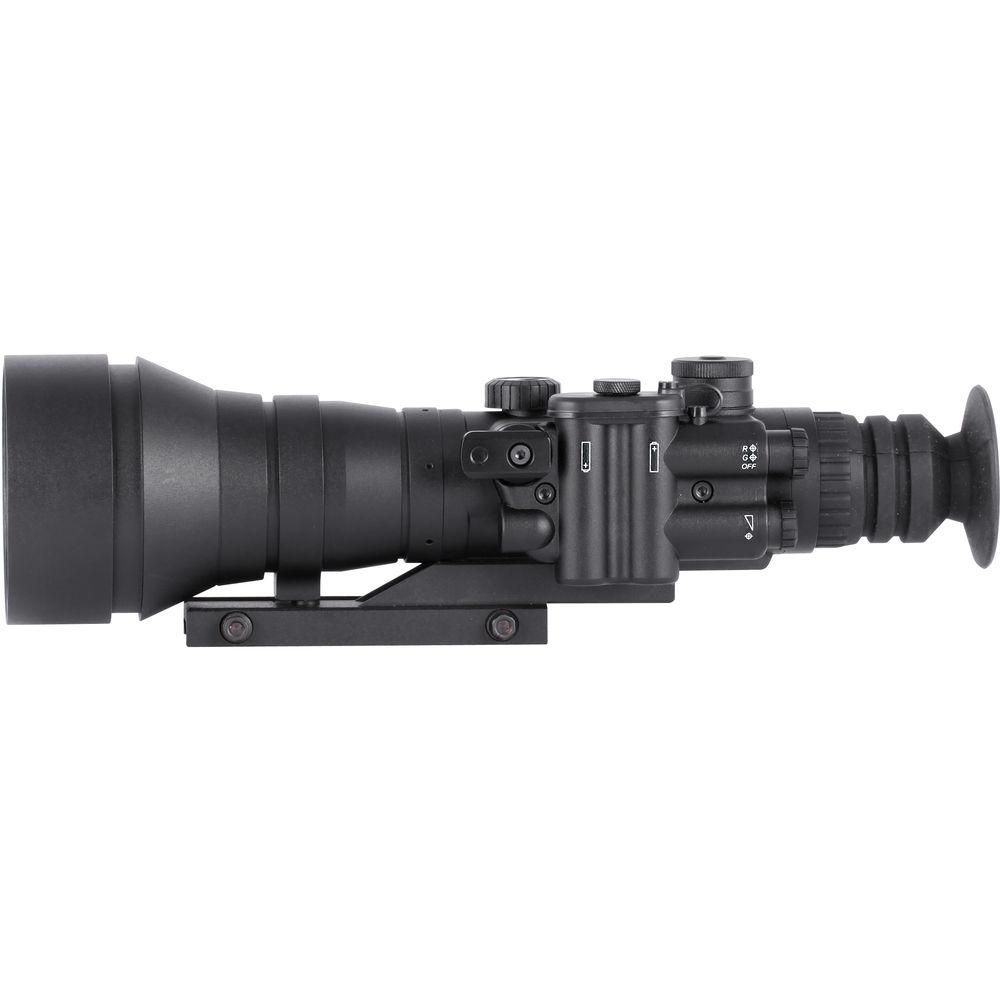

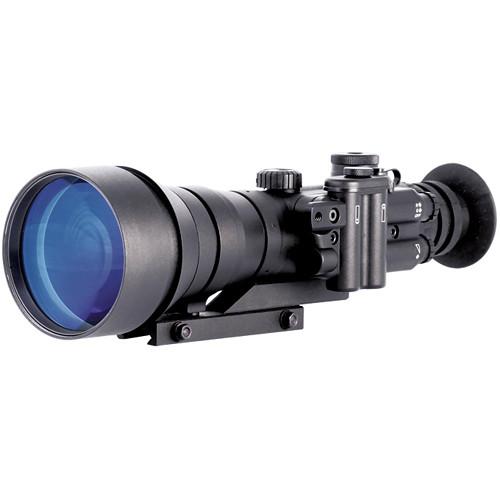

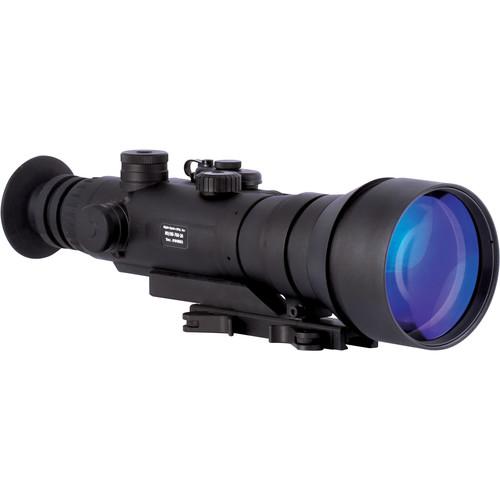

User Manual for Night Optics 6x GEN 2 HP Gladius 760 Night Vision Rifle Scope with Dual Reticle Click to enlarge the picture
Contents of the user manual for the Night Optics 6x GEN 2 HP
- Product category: Night Vision Riflescopes Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Night Vision Riflescopes
 |
User manual for the Night Optics 6x GEN 2 HP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The 6x GEN 2 HP Gladius 760 Night Vision Rifle Scope with illuminated reticle from Night Optics features High Performance Generation 2 intensifier tube with 51 lp/mm resolution, multicoated high performance optics, and recoil resistant waterproof and fogproof housing. While High Performance (HP) Generation 2 tube provides higher quality images and delivers more resolution and clarity than Generation 1 and 2 tubes, optical elements with multiple anti-reflection coatings provide high optical transmission which improves brightness. With 6x magnification, the lens system enables you making long range observations with angular field of view 8°. To help you see bright images regardless of ambient light, this rifle scope is equipped with a large 165mm focal length objective for gathering more photons and can be outfitted with optional infrared illuminator for additional illumination of targets. To improve your shooting precision, there is red and amber Mil Dot reticle with variable illumination brightness.
Beyond these optical highlights, the scope has a manual gain control and a Bright Light Cut-off function. The manual gain control helps to regulate image brightness or detail in various illumination settings and to accommodate for personal preferences. The Bright Light Cut-Off turns off the tube when it is exposed to light intensities above allowable threshold limit. This serves two functions: one, to protect the intensifier tube from over-exposure damage or burn out; and two, to protect your eyes from flash blindness due to a sudden burst of light. To account for projectile motion and drift due to wind, the scope is equipped with windage and elevation adjustments with anti-dust turrets caps.
The scope also features a diopter adjustment, a wide rubber eyeguard, and a water and fogproof housing which is compatible with optional quick release picatinny rifle mount. Also included with this NVD are two AA batteries, a hard carrying case, and a protective objective lens cap. - Optical Performance
-
- Magnification: 6x
- Lens system: 165mm f/2
- Objective lens focal length: 165mm
- Multicoated optical elements
- Angular Field of View: 8°
- Minimum Focus Distance: 33'
- Intensifier Tube
-
- High Performance Gen 2 offers high resolution, brightness and clarity
- Resolution: 51 lp/mm
- Reticle
-
- Mil-dot reticle
- Red or amber color
- Adjustable illumination
- Use and Handling
-
- Windage 1/4 MOA per click and elevation 1/4" per click
- Manual gain control allows customized brightness and detail adjustment
- Auto Bright Light Cut-off function prevents intensifier tube damage and flash blindness
- Camera can be connected to the eyepiece via an optional adapter
- Can be used with optional infrared illuminator
- Diopter adjustment: +3 to -4
- Construction Details
-
- Aluminum housing
- Recoil resistant
- Knurled focusing know located on the top of the housing
- Windage and elevation turrets with anti-dust caps
- Optional Picatinny rifle mount with a quick release
- Rubber eyeguard
- Waterproof and fogproof
In the Box Night Optics 6x GEN 2 HP Gladius 760 Night Vision Rifle Scope with Dual Reticle - Lens Cap
- Hard Case
- 2 x AA Batteries
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 6x GEN 2 HP Gladius 760 Night Vision Rifle Scope with Dual Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NS-760-2H Specs | Intensifier Tube | Gen 2, high performance
Resolution: 51p/mm | | Magnification | 6x | | Angle/Field of View | 8° | | Linear Field of View | 420' @1000 yd (128 @ 1000 m) | | Lens System | 250mm f/2 | | Minimum Focus Distance | 33' (10 m) | | Windage Adjustment | 1/4 MOA per click | | Elevation Adjustment | 1/4" per click | | Reticle | Red / Amber Mil Dot | | Dioptric Correction | +3 to -4 | | Infrared Illuminator | Optional | | Battery / Runtime | 2 x AA /60 hr | | Weatherproofing | Water and fogproof | | Temperature Ranges | -40 to 122°F (-40 to 50°C) | | Dimensions | 13 x 4 x 3.6" (33 x 10.1 x 9.1 cm) | | Weight | 2.9 lb (1.3kg) |
