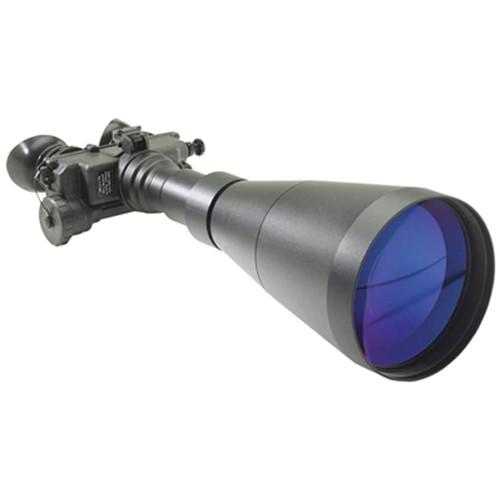

User Manual for Night Optics 6x GEN 3 Autogated Falcon Night Vision Biocular Click to enlarge the picture
Contents of the user manual for the Night Optics 6x GEN 3 Autogated
- Product category: Night Vision Bi-Oculars Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Night Vision Bi-Oculars
|
User manual for the Night Optics 6x GEN 3 Autogated contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The 6x GEN 3 Gated Falcon Night Vision Biocular from Night Optics features thin film Generation 3 autogated intensifier tube with 57-72 lp/mm resolution, multicoated high-performance optics, and waterproof housing. While Generation 3 autogated tube provides the higher quality images and delivers much higher resolution and clarity with less blooming than Generation 1 and 2 tubes, optical elements with multiple anti-reflection coatings provide high optical transmission which improves brightness. With 6x magnification, the lens system enables you to make observation at a considerable range with angular field of view 8°. To help you see bright images regardless of ambient light, this biocular is equipped with a large 165mm focal length objective for gathering more photons, and infrared illuminator for providing additional illumination of targets.
Beyond these optical highlights, the biocular has an automatic brightness control and Bright Light Cut-off function. The automatic brightness control helps keeping brightness and image visibility constant regardless of external illumination settings. The Bright Light Cut-Off turns off the tube when it is exposed to light intensities above allowable threshold limit. This serves two functions: one, to protect the intensifier tube from over-exposure damage or burn out; and two, to protect your eyes from flash blindness due to a sudden burst of light.
The biocular also features diopter adjustment, low battery and IR-on indicators, winged rubber eyecups, and water and fogproof housing. Also included with this NVD are two AA batteries, a hard carrying case, and an objective lens cap. - Optical Performance
-
- Magnification: 6x
- Lens system: 165mm f/2
- Focal length: 165mm
- Multicoated optical elements
- Angular Field of View: 8°
- Minimum Focus Distance: 33'
- Intensifier Tube
-
- Thin film Gen 3 autogated tube delivers images with high brightness, clarity and less blooming
- Resolution: 57-72 lp/mm
- Use and Handling
-
- Automatic brightness control
- Auto Bright Light Cut-off function
- Built-in infrared illuminator
- IR-on and low battery indicators
- Diopter adjustment: ±4
- Construction Details
-
- Aluminum lens housing
- Rubber winged eyeguard
- Waterproof and fogproof
In the Box Night Optics 6x GEN 3 Autogated Falcon Night Vision Biocular - Lens Cap
- Hard Case
- Lens Tissue
- 2 x AA Batteries
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 6x GEN 3 Autogated Falcon Night Vision Biocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NB-L6-3G Specs | Intensifier Tube | Gen: 3, autogated thin film
Resolution: 57-72 lp/mm | | Magnification | 6x | | Angle/Field of View | 8° | | Linear Field of View | 420' @1000 yd (128 @ 1000 m) | | Lens System | 165mm f/2 | | Minimum Focus Distance | 33' (10 m) | | Dioptric Correction | ±4 | | Infrared Illuminator | Yes | | Battery / Runtime | 2 x AA /60 hr | | Weatherproofing | Water and fogproof | | Temperature Ranges | -40 to 122°F (-40 to 50°C) | | Dimensions | 13.25 x 6 x 3" (33.6 x 15.2 x 7.6 cm) | | Weight | 2.2 lb (1 kg) |
