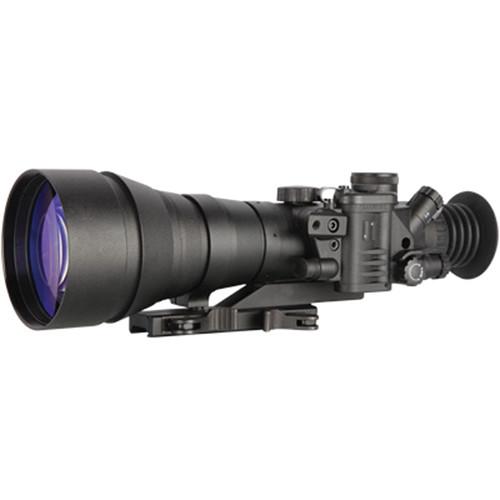

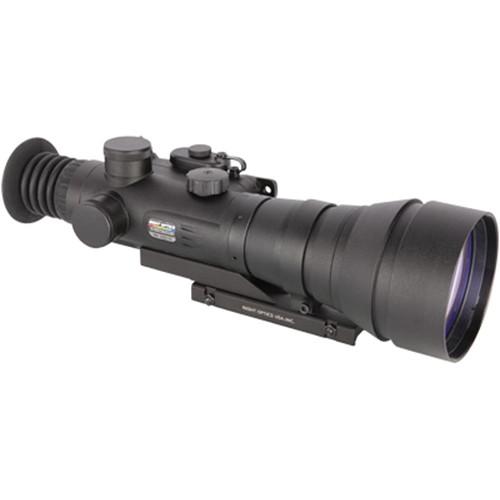

Product description Cut through the dark and challenging weather with the 6x Magnus 790 Gen 3 Gated Night Vision Riflescope from Night Optics. Complementing the Gen 3 Gated intensifier tube and 165mm f/2.0 lens system are anti-reflection fully multicoated optics that increase light transmission through the optical system for better overall image quality. The scope's gated power supply means the system is rapidly turning itself on and off; and this, when combined with a thin film attached to the microchannel plate, reduces image blooming. Designed for medium to long-range use, the Magnus has a maximum detection range of 2190yd, and a recognition range of 1640yd.The Magnus is equipped with a modified duplex-style crosshair reticle. The thin hairs are broken at the center to provide a clearly-defined aiming point. Mil-dots on all four axes allow for precision ranging and holdover/under. Two reticle color choices, red or amber, and adjustable brightness allow for individual customization based on preference or situation. Windage and elevation adjustment turrets provide impact-point correction at 1/4 MOA per click.A Picatinny/Weaver quick-release mount enables the scope to be easily installed and removed with precise repeatability, giving the user the confidence to switch out a day optic for the Magnus without having to re-zero. To withstand the rigors of outdoor use, the housing is nitrogen-filled to be water and fogproof. The scope has also be designed to be recoil-proof on up to a .50 BMG. - Optical Performance
-
- 6x magnification
- Gen 3 Gated intensifier
- 165mm f/2.0 lens system
- Anti-reflection multicoated optics
- Gated power supply reduces bloom for improved image quality
- 6.3° actual angle of view
- 330' field of view at 1000 yd
- Maximum detection range: 2190yd
- Maximum recognition range: 1640yd
- Close focus distance: 33'
- Reticle
-
- Mil-Dot duplex crosshair reticle
- Thick posts with broken center hairs
- Three mil-dots on each axis for ranging and holdover/under
- Selectable red or amber reticle colors
- Variable reticle brightness from 0-100%
- Use and Handling
-
- 1/4 MOA per click Windage and Elevation adjustment
- Manual Gain control
- -3 to +4 diopter adjustment
- Bright source protection
- Knurled focus dial
- Construction Details
-
- Nitrogen-filled, water and fogproof
- Recoil/shockproof: Tested up to .50 BMG
- Picatinny/Weaver quick release dual-clamp mount
- Objective lens cover with daylight filter
- Operating temperature: -40 to 122°F
- Rubber eye guard reduces peripheral light leakage
In the Box Night Optics 6x Magnus 790 Gen 3 Gated Night Vision Riflescope Quick Release Picatinny/Weaver Mount IR Illuminator Mount 2 x AA Batteries Rubber Eyecup Hard Carry Case Lens Cover Lens Cloth Limited 2-Year USA Warranty Limited 1-Year International Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics 6x Magnus 790 Gen 3 Gated Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NS-790-3GM Specs | Intensifier Tube | Gen 3 Gated | | Magnification | 6x | | Angle of View | 6.3°, actual | | Field of View | 330' @ 1000 yd (110 m @ 1000 m) | | Eye Relief | 3.5" (9.0 cm) | | Lens System | 165 mm f/2.0 | | Minimum Focus Distance | 33' (10 m) | | Detection Range | 2190 yd (2000 m), maximum | | Reticle | Type: Mil-dot duplex crosshair
Colors: Amber, Green | | Windage/Elevation Adjustment | 1/4 MOA per Click | | Dioptric Correction | -3 / +4 | | Battery / Runtime | 2 x AA batteries / 60 hr, maximum | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Waterproofing | Nitrogen-filled, water and fogproof | | Dimensions | 12.2 x 3.9 x 3.5" (31.0 x 9.8 x 9.0 cm) | | Weight | 2.4 lb (1.1 kg) |
