User Manual for Night Optics Ambia 1x 3rd Generation Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Night Optics Ambia 1x 3rd Generation
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
 |
User manual for the Night Optics Ambia 1x 3rd Generation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|

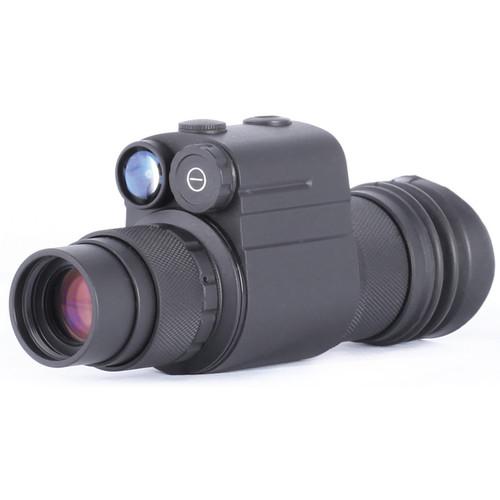

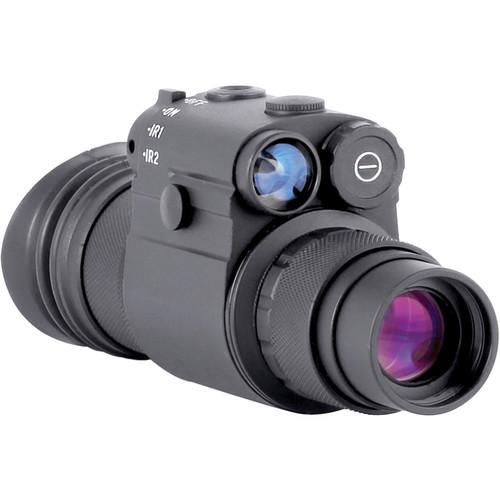

Product description The Ambia 1x 3rd Generation Night Vision Monocular from Night Optics features a 3rd generation filmless autogated intensifier tube with resolution of 64-72 lp/mm and automatic brightness. It will enable you to see brighter and clearer images than 1st and 2nd generation devices with similar optics. While the filmless microchannel plate improves signal-to-noise ratio and efficiency of intensifier, the autogating allows operation in high-light, protects from bright light burnout, and extends life. Outfitted with the automatic brightness control, the device will regulate image brightness to maintain the same visibility.To maximize image brightness in the lowest of lighting conditions and in complete darkness, the monocular also carries a built-in IR illuminator that can cast extra infrared light on your targets. The optical system features a multi-coated 26mm f/1.2 lens system, 1 x magnification, a 40° angular field of view, and a minimum focus of 10".
The body is made of a lightweight, durable, and impact-resistant polymer that offers and water-resistant performance. The rubber wing eyecup prevents spill-over of light from the tube and offers a comfortable cushion between your eye's orbit and the eyepiece. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Intensifier Tube
-
- 3rd generation
- Resolution: 64-72 lp/mm
- Filmless microchannel plate provides a higher SNR
- Autogating improves resistance to bright light, extends life, and provides better image quality
- Built-in IR illuminator casts extra infrared light on targets and improves image brightness in total darkness
- Automatic brightness control
- Optical Features
-
- 1x magnification
- 40° angular field of view
- 26mm f/1.2 lens system
- +2 to -6 diopter adjustment range
- 10" minimum focus
- Use and Handling
-
- Mountable to a weapon or headgear with optional adapters

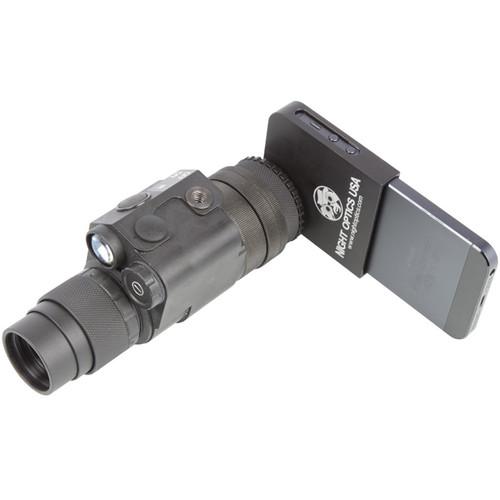

- Can be connected to a camera using optional adapter
- Low-battery indicator
- Construction Details
-
- Impact-resistant polymer body
- Rubber winged eyecups
- Weather-resistant
In the Box Night Optics Ambia 1x 3rd Generation Night Vision Monocular (Filmless, Autogated) - Hard Case
- CR-123 Battery
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Ambia 1x 3rd Generation Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NM-300-F3G Specs | Intensifier Tube | 3rd generation
64-72 lp/mm resolution
Autogated
Filmless | | Magnification | 1x | | Angle/Field of View | Angular field of view: 40°
Linear: 2094' @ 1000 yd (698 m @ 1000 m) | | Lens System | 26mm, f/1.2 | | Minimum Focus Distance | 10" (25 cm) | | Dioptric Correction | +2 to -6 | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x CR-123 battery / 40 h | | Weatherproofing | Weather-resistant | | Temperature Ranges | -4 to 113°F (-20 to 45°C) | | Dimensions | 5.5 x 2.5 x 1.8" (140 x 64 x 46 mm) | | Weight | 16 oz (454 g) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
