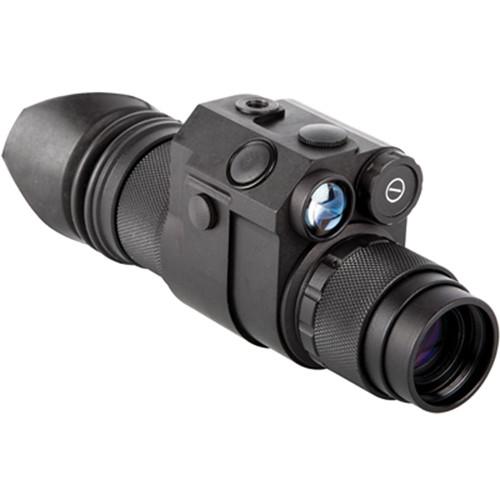

User Manual for Night Optics Ambia Gen 2 B W Night Vision Monocular Goggle Click to enlarge the picture
Contents of the user manual for the Night Optics Ambia Gen 2 B
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
|
User manual for the Night Optics Ambia Gen 2 B contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description With the benefits of hands-free operation and a lightweight housing, the Ambia Gen 2+ B/W Night Vision Monocular Goggle from Night Optics produces a black and white image and provides an ideal nighttime surveillance solution for law enforcement, first responders, or military personnel. Complementing the Gen 2+ B/W intensifier tube and 26mm f/1.2 lens system are anti-reflection multicoated optics that increase light transmission through the optical system for better overall image quality. The Ambia has a max detection range of 650' with a built-in variable-intensity IR illuminator that provides additional illumination when it's needed.Designed for outdoor use, the Ambia's housing is weather-resistant with a broad -4 to 122°F operating temperature that allows it to be used just about anywhere you need it to. Integrated into the display are low-battery and IR-on indicators for real-time feedback that won't give away your position or presence. Push button controls ensure easy-to-use operability, while its angled rubber eyecup blocks stray peripheral light from causing visual interference. A head mount is included for hands-free use, and wide range of optional accessories allow the Ambia to be used with iPhones, DSLR cameras, or weapon-mounted. - Optical Performance
-
- 1x magnification
- 26mm f/1.2 lens system
- Gen 2+ intensifier tube
- Black/White display
- Anti-reflection multicoated optics
- 2184' field of view at 1000 yd
- 40° apparent angle of view
- Maximum detection range: 650' (200m)
- Use and Handling
-
- Textured focus ring
- ±4 diopter adjustment
- 10" close focus distance
- OSD low-battery and IR-on indicators
- Built-in variable-intensity IR illuminator
- iPhone, DSLR camera, and weapon-mountable with optional adapter
- Included head-mount for hands-free uses
- Construction Details
-
- Lightweight construction, weighs just 16oz
- Weather-resistant housing
- Broad -4 to 122°F operating temperature range
- Runs on one CR123 battery with max runtime of 40hr
In the Box Night Optics Ambia Gen 2+ B/W Night Vision Monocular Goggle Lens Cloth Soft Pouch CR123 Battery Head Mount Assembly Limited 2-Year USA Warranty Limited 1-Year International Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Ambia Gen 2 B W Night Vision Monocular Goggle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NG-350-2BW Specs | Intensifier Tube | Gen 2+ | | Magnification | 1x | | Angle of View | 40°, apparent | | Field of View | 2184' @ 1000 yd (727 m @ 1000 m) | | Lens System | 26 mm f/1.2 | | Minimum Focus Distance | 10" (25 cm) | | Eye Relief | 17 mm | | Dioptric Correction | ±4 | | Infrared Illuminator | Built-in | | Battery / Runtime | 1 x CR123 / 40 hr, maximum | | Weatherproofing | Weather-resistant | | Environmental | Operating temperature: -4 to 122°F (-20 to 50°C) | | Dimensions | 5.5 x 2.5 x 1.8" (14.0 x 6.4 x 4.6 cm) | | Weight | 16 oz (454 g) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
