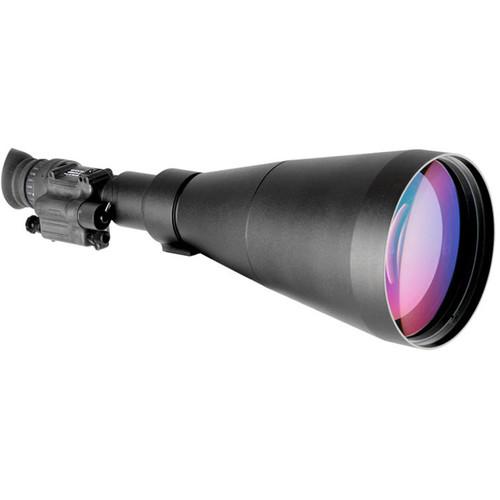

User Manual for Night Optics Cyclops 10x 3rd Generation Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Night Optics Cyclops 10x 3rd Generation
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
 |
User manual for the Night Optics Cyclops 10x 3rd Generation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description Ideal for long-range and low-light security surveillance the Cyclops 10x 3rd Generation Night Vision Monocular from Night Optics combines features of the Sentry 14 with a powerful 10x magnification. It features a 3rd generation filmless autogated intensifier tube with resolution of 64-72 lp/mm and automatic brightness control. It will enable you to see brighter and clearer images than 1st and 2nd generation devices with similar optics. While the filmless microchannel plate improves signal-to-noise ratio and efficiency of the intensifier, the autogating allows operation in varying lighting conditions, protects against bright light burnout, and helps extend life. You can adjust image brightness or detail with a manual gain control. To maximize image brightness in total darkness, the monocular carries a built-in IR illuminator that casts extra infrared light on your targets. To add convenience and stealth for tactical applications, the device offers activation status indicator and automatic off function when you turn it up or take of off your headgear. The 10x magnification and 250mm objective lens is ideal for gathering lots of light in very low-light conditions and for long range observations. It offers a 5° field of view and allows a 33' minimum focus distance.
The housing is made of a lightweight and impact-resistant polymer that offers fogproof and waterproof performance. To provide extra protection and stability for optics, the lens's housing is made of aluminum. To prevent spillover of light from the intensifier tube and to offer comfortable cushion between your eye's orbit and the eyepiece, the eyepiece has a wide rubber eyecup. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Night Vision Features
-
- 3rd generation
- 64-72 lp/mm resolution
- Filmless MCP offers reduces noise and improves SNR
- Autogating allows operation in varying light conditions and extends tube life
- IR illuminator casts extra infrared light on targets for visibility in total darkness
- Optical Performance
-
- 10x magnification
- 5° angular field of view
- 262' field of view at 1000 yards
- 250mm, f/2 lens system
- 33' minimum focus distance
- +2 to -6 dioptric adjustment
- Use and Handling
-
- Automatic brightness control
- Bright source protection
- Manual gain control
- Low-battery and IR-on indicators
- Momentary or constant-on infrared illumination modes
- Auto-off function when unmounted or in upright position

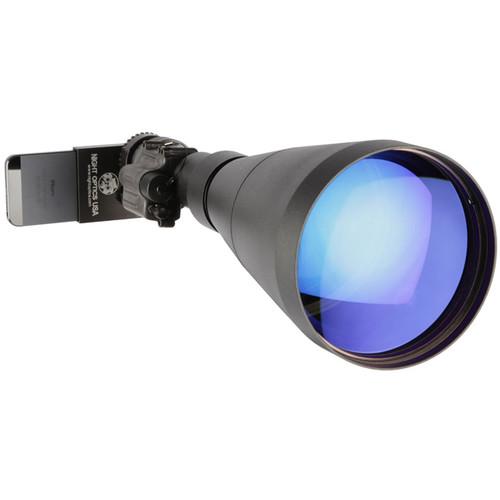

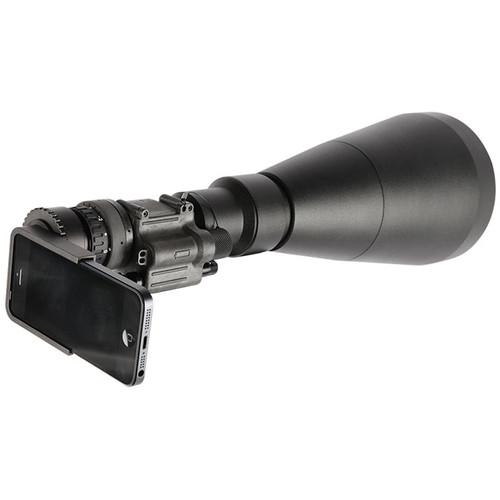

- Camera adaptability allows for digiscoping
- Construction Details
-
- Impact-resistant polymer body
- Knurled adjusters

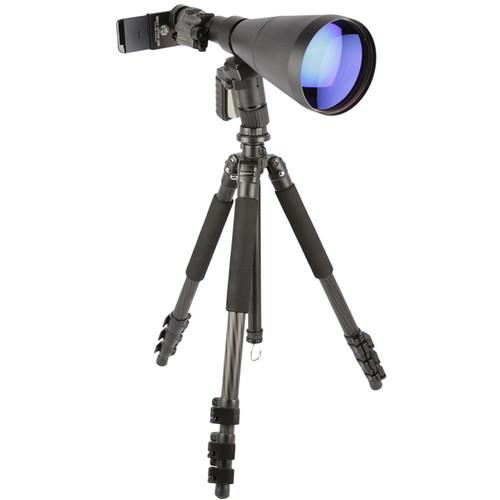

- Mountable on tripod
- Wide rubber eyecup
- Waterproof
In the Box Night Optics Cyclops 10x 3rd Generation Night Vision Monocular (Filmless, Autogated) Carry Case AA Battery Lens Cloth Limited 2-Year USA Warranty Limited 1-Year International Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Cyclops 10x 3rd Generation Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NM-P10F3GM Specs | Intensifier Tube | 3rd generation
64-72 lp/mm
Filmless
Autogated | | Magnification | 10x | | Angle/Field of View | 5° | | Linear Field of View | 262' @ 1000 yd (87.3 @ 1000 m) | | Lens System | 250mm, f/2 | | Minimum Focus Distance | 33' (10 m) | | Infrared Illuminator | Built-in | | Battery / Runtime | 1 x AA battery / 40 h | | Weatherproofing | Waterproof | | Temperature Ranges | -40 to 122°F (-40 to 50°C) | | Dimensions | 18 x 5.9 x 5.3" (45.7 x 15 x 13.5 cm) | | Weight | 60 oz (1.7 kg) |
