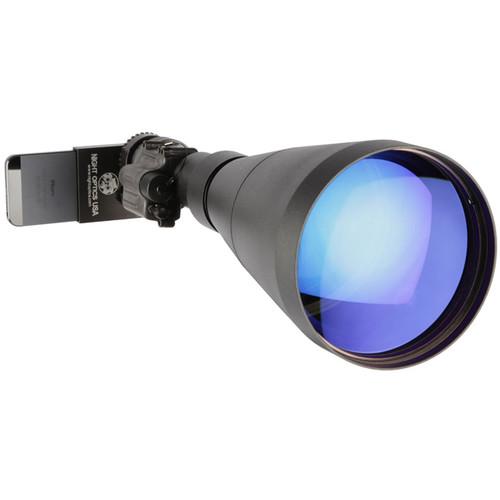

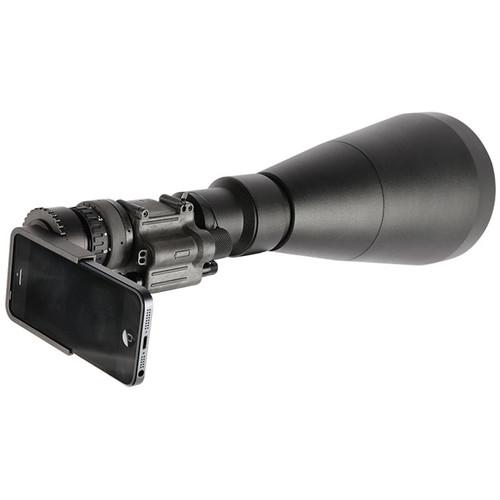

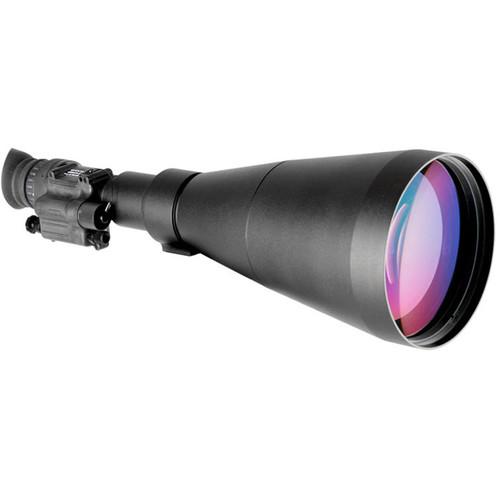

Product description Ideal for long-range and low-light security surveillance the Cyclops 10x 3rd Generation White Phosphor Night Vision Monocular from Night Optics combines features of Sentry 14 with a powerful 10x objective. It features a 3rd generation filmless autogated image intensifier tube with resolution of 64-72 lp/mm and automatic brightness control. It will enable you to see brighter and clearer images than 1st and 2nd generation devices with similar optics. While the filmless microchannel plate improves signal-to-noise ratio and efficiency of the intensifier, the autogating greatly increases sensitivity in low-light and varying lighting conditions, protects against bright light burnout, and extends life. The tube is also enhanced with the white phosphor technology for operators who prefer black and white images to green ones. You can adjust image brightness or detail with a manual gain control. To maximize image brightness in total darkness, the monocular carries a built-in IR illuminator that casts extra infrared light on your targets. To add convenience and stealth for tactical applications, the device offers activation status indicator and automatic off function when you turn it up or take of off your headgear. The 10x 125mm objective lens is ideal for gathering lots of light in very low-light conditions and for long range observations. It offers a 5° field of view and allows a 33' minimum focus distance.
The housing is made of lightweight and impact-resistant polymer and offers fogproof and waterproof performance. To provide extra protection and stability for optics, the lens's housing is made of aluminum. To prevent spill-over of light from the intensifier tube and offer comfortable cushion between your eye's orbit and the eyepiece, the eyepiece has a wide rubber eye cup. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Night Vision Features
-
- 3rd generation
- 64-72 lp/mm resolution
- Filmless MCP offers reduces noise and improves SNR
- Autogating increases sensitivity, protects from bright light, and extends tube life
- White phosphor technology generates black and white images instead of green ones
- IR illuminator casts extra infrared light on targets for visibility in total darkness
- Optical Performance
-
- 10x magnification
- 5° angular field of view
- 250mm, f/2 lens system
- 33' minimum focus distance
- +2 to -6 dioptric adjustment
- Use and Handling
-
- Automatic brightness control
- Bright source protection
- Manual gain control
- Low-battery and IR-on indicators
- Momentary or constant-on infrared illumination modes
- Auto-off function when unmounted or in upright position
- Construction Details
-
- Impact-resistant polymer body
- Knurled adjusters

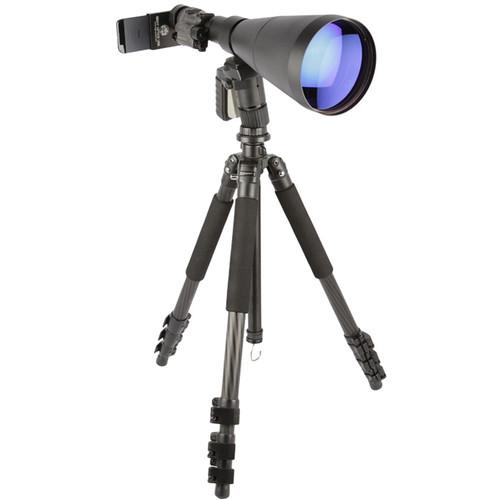

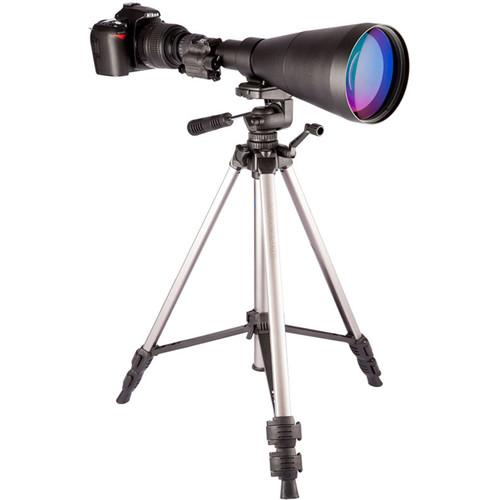

- Mountable on tripod
- Wide rubber eyecup
- Waterproof
In the Box Night Optics Cyclops 10x 3rd Generation White Phosphor Night Vision Monocular (Filmless, Autogated) - Carry Case
- AA Battery
- Lens Cloth
- Limited 2-Year USA Warranty
- Limited 1-Year International Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Cyclops 10x 3rd Generation White Phosphor Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NM-P10F3BW Specs | Intensifier Tube | 3rd generation
64-72 lp/mm
Filmless
Autogated
White phosphor | | Magnification | 10x | | Angle/Field of View | 5° | | Linear Field of View | 262' @ 1000 yd (87.3 @ 1000 m) | | Lens System | 250mm, f/2 | | Minimum Focus Distance | 33' (10 m) | | Infrared Illuminator | Built-in | | Battery / Runtime | 1 x AA battery / 40 h | | Weatherproofing | Waterproof | | Temperature Ranges | -40 to 122°F (-40 to 50°C) | | Dimensions | 18 x 5.9 x 5.3" (45.7 x 15 x 13.5 cm) | | Weight | 60 oz (3.8 lb) |
