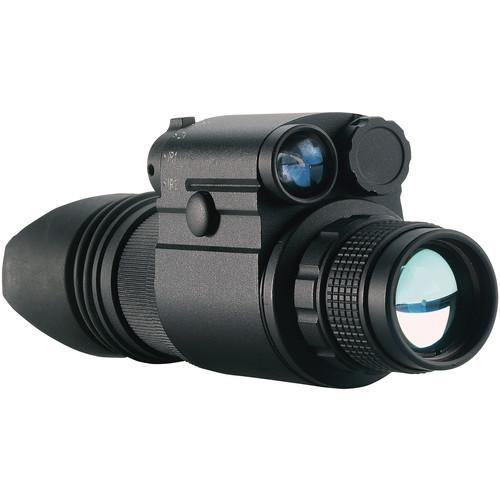

User Manual for Night Optics D-300G AG Monocular Click to enlarge the picture
Contents of the user manual for the Night Optics D-300G AG Monocular
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
|
User manual for the Night Optics D-300G AG Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The D-300G AG Monocular from Night Optics comes with a 3rd generation autogated intensifier tube. Designed with a thin film coating on the cathode, and an auto-gated power-supply, the Gen 3AG tube delivers extremely high levels of performance in image quality. Standard features such as Mil Spec optics, high-power, multi-stage Infrared Illuminator, and internal low battery and infrared indicators are packaged in a compact, rugged, weather resistant housing. Optional accessories include weapon and helmet mounts, headgear, magnification lenses, red dot/holographic sights and camera/camcorder adaptors. This night vision device can be used as a hand-held monocular, hands-free, goggle, or weapon-mounted system. It comes with an f/1.2 objective lens, a CR123 battery and a head mount. This is a good choice for Law Enforcement professionals and private users who demand exquisite performance, friendly controls and easy system customization. There are many different variables that affect the distance that one can see with a night vision device, among them the object's size, the level of details being sought from the object and the conditions of observation. Night vision devices detect much further under a full moon and clear skies than they will under a new moon and cloudy skies. Many different formulas are used to determine the statistic of maximum viewing range and the method of calculation varies by manufacturer. All night vision devices sold by have mechanisms in place to protect the intensifier tube from a sudden burst of bright light, but this does not mean that bright light doesn't damage the device. No matter what, bright light in any form is not good for the longevity and performance of image intensifier tubes. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARcfaefqfctecfcqabvwabdreac), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. -
- Indicators for a low battery and Infrared
- Use with a camera or camcorder with optional adapter
- Use as a hand-held monocular, hands-free goggle, or weapon-mounted system
- High-power, multi-stage Infrared Illuminator when there is no ambient light
- Third generation intensifier tube with 57-72 lp/mm resolution. Designed with a thin film coating on the cathode, and an auto-gated power-supply, the gen3 tube delivers extremely high levels of performance in image quality
In the Box Night Optics D-300G AG Monocular Hard Case Headmount f1.2 Objective Lens 3v CR123 Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics D-300G AG Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics D-300M Specs | Intensifier Tube | Third Generation | | Magnification | 1x | | Resolution | 57-72 lp/mm | | Angle/Field of View | 42°
2184' @ 1000 yd / 725 m @ 1000 m | | Lens System | 26 mm, f/1.2 | | Minimum Focus Distance | 10" / 25 cm | | Range | Detection Range: 975' / 297.2 m
Recognition Range: 775' / 236.2 m | | Eye Relief | Not provided by manufacturer | | Dioptric Correction | +2 to -6 | | Interpupillary Adjustment | Not provided by manufacturer | | Infrared Illuminator | Yes | | Battery / Runtime | 1x 3v CR123 Battery / 40 hr | | Weatherproofing | Weather Resistant | | Temperature Ranges | -4° to 113° F / -20° to 45° C | | Dimensions | 5.5 x 1.8 x 2.5" / 140 x 46 x 64 mm | | Weight | 16 oz / 454 g |
