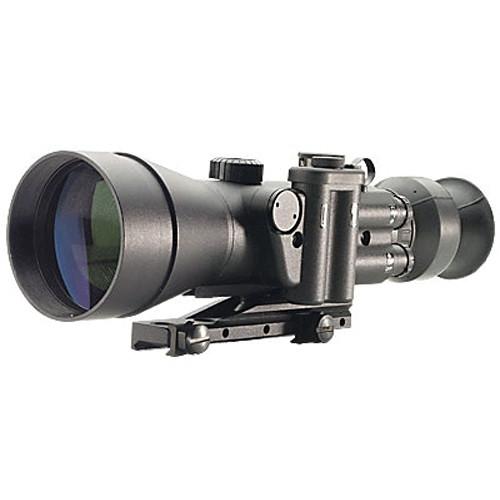

User Manual for Night Optics D-740-3AGM 4x100 Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Night Optics D-740-3AGM 4x100 Night Vision
- Product category: Night Vision Riflescopes Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Night Vision Riflescopes
|
User manual for the Night Optics D-740-3AGM 4x100 Night Vision contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The D-740-3AGM 4x100 Night Vision Riflescope from Night Optics with manual gain control and an autogated power supply, is rugged, lightweight, and accurate, making it an excellent choice for military & law enforcement night vision specialists. The D-740 utilizes space-age materials to reduce the weight and improve recoil resistance. Standard features include a waterproof, nitrogen purged housing, high-grade multicoated optics, and a quick-detach, throw-lever mount. Parallax-free, the illuminated reticle assures quick and efficient target acquisition, while the 1/4 MOA adjustments enable precise shot placement. The Mil Dot reticle has variable brightness control and illuminated red-on-green or amber-on-green dual color rendering. The D-740 has a guaranteed zero retention on medium caliber weapons including .308 caliber. There are many different variables that affect the distance that one can see with a night vision device, among them the object's size, the level of details being sought from the object and the conditions of observation. Night vision devices detect much further under a full moon and clear skies than they will under a new moon and cloudy skies. Many different formulas are used to determine the statistic of maximum viewing range and the method of calculation varies by manufacturer. The important factors to consider when evaluating any night vision device are the intensifier tube's generation, s/n ratio, level of magnification, specified resolution, along with the clarity & light transmission efficiency of the optical system. All night vision devices sold by have mechanisms in place to protect the intensifier tube from a sudden burst of bright light, but this does not mean that bright light doesn't damage the device. No matter what, bright light in any form is not good for the longevity and performance of image intensifier tubes. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Retains zero on heavy caliber weapons; furnishing consistent, accurate usage
- Lightweight, waterproof nitrogen purged housing allows use in all weather conditions
- Variable intensity and dual colored illuminated reticle supplies accurate target acquisition
- Weaver rail mount extends the scope's compatibility to the majority of mounting configurations
- Manual Gain Control affords the user the ability to manually adjust the amplification of light input
- Autogated power supply consists of an automatic rapid on/off power switch which decreases the voltage and contributes to the lessening of unwanted blooming from bright light sources
- Third generation intensifier tube delivers 57-72 lp/mm of resolution.
Third generation intensifiers last longer and deliver brighter images with greater detail and less distortion than previous generations of night vision technology. The power supply is gated. The film type is thin. - Mil-Dot reticle is the standard reticle used by the US Army and Marine Corps that enables long range distance calculations. A series of dots upon the cross hairs gives the shooter the ability to judge bullet drop and the proper hold over for accurate long range shot placement
In the Box Night Optics D-740-3AGM 4x100 Night Vision Riflescope Hard Case 4x f1.5 Objective Lens 2 x 1.5V "AA" Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics D-740-3AGM 4x100 Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics D-740-3AGM Specs | Magnification | 4x | | Intensifier Tube | 3rd generation | | Resolution | 57-72 lp/mm | | Infrared Illuminator | No | | Objective Lens Diameter | 100mm, f/1.5 | | Angle of View | 10.0° | | Field-of-View (@ 1000 Yds) | 525' @ 1000 Yds / 174 m at 1000 m | | Minimum Focus Distance | 33' / 10.0 m | | Dioptric Correction Range | -4 to +4 | | Eye Relief | Not specified by manufacturer | | Filter Size | None | | Impact Point Correction per Click | 1/4 MOA | | Range | Detection: 1395' / 425 m
Recognition: 1148' / 350 m | | Maximum Elevation/Windage Adjustment | Not specified by manufacturer | | Weatherproofing | Waterproof | | Power Source | Two 1.5-volt "AA" batteries / 60 hr | | Operating Temperature | -40° to 122°F / -40° to +50°C | | Dimensions | 9.0 x 3.5 x 4.0" / 229 x 89 x 102 mm | | Weight | 2.38 lb / 1.1 kg | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 16.0 x 13.0 x 8.0" |
