User Manual for Night Optics D-750 Gen 3 Gated 4x NV Riflescope Click to enlarge the picture
Contents of the user manual for the Night Optics D-750 Gen 3 Gated
- Product category: Night Vision Riflescopes Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Night Vision Riflescopes
 |
User manual for the Night Optics D-750 Gen 3 Gated contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|

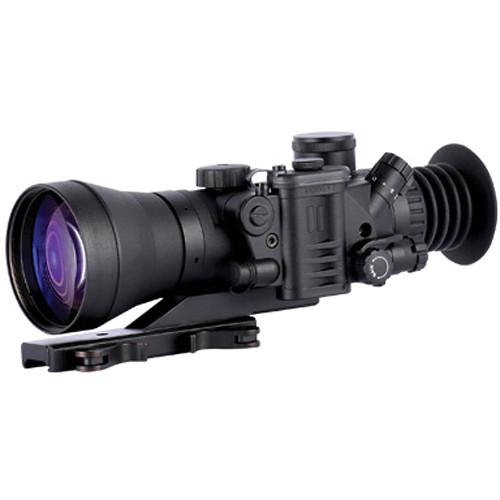

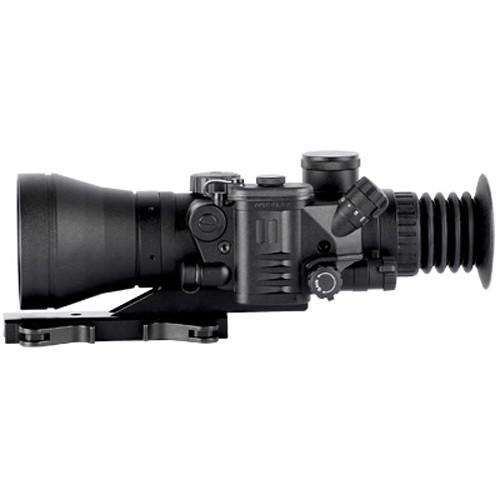

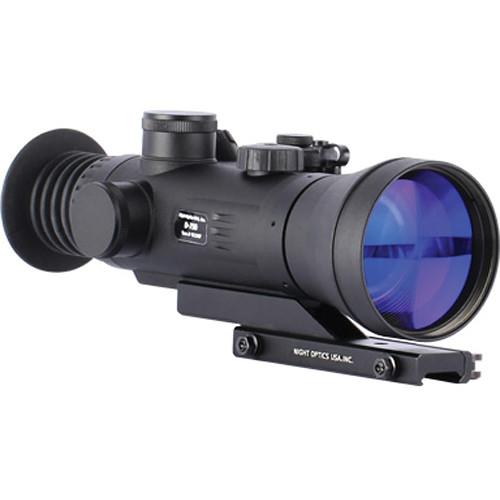

Product description The D-750 Gen 3 4x NV Riflescope from Night Optics is a rugged yet lightweight night vision optic designed for medium and heavy caliber firearms. When tactical professionals and sportsmen need maximum detail and contrast in low light or pitch dark conditions, the D-750 is the NV riflescope they choose. At the core of the D-750 is an autogated third generation image intensifier tube that delivers 57-72 lp/mm resolution with minimal noise or black spots. A rugged yet lightweight housing ensures that this NVD will withstand the rigors of daily use in a wide range of weather conditions. This configuration of the D-750 features multicoated 100mm f/1.5 optics providing a 10 degree angle of view that is ideal for close to mid-range targets in the field. The intermediate viewing angle and bright optics make this riflescope well-suited for hunting and mid-range tactical engagement. This NVD includes a quick release weapon mount, making it easy to switch between the D-750 and rail-mounted day scope. An autogated thin-film intensifier tube dynamically improves image quality by adjusting to the brightness levels within the visual scene. Automatic Brightness Control dynamically improves image quality in changing light conditions, and advanced highlight cut-off circuitry protects operator’s eyes and the intensifier tube from damage due to sudden, bright light sources. The lightweight rugged design makes this scope at home atop even high caliber rifles; mount the D-750 on a carbine or heavy caliber rifle, the robust mount is ready for the heavy recoil from .50 BMG class, .375 H&H, and .416 Rigby. The zero retention system guarantees that intense recoil and rapid fire will not affect your weapon zero. An amber-on-green mil-dot reticle clearly displays crosshair and mil markings with enhanced contrast and adjustable brightness. This scope also includes 1/4 MOA adjustable windage and elevation settings, making this NV riflescope a full-featured optic for sportsmen, law enforcement, and military personnel. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (http://www.pmddtc.state.gov/regulations_laws/itar_official.html), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Gen 3 Image Intensifier
- Generation 3 intensifier tubes feature Automatic Brightness Control and are protected from damage by fully-automated sensors that protect the unit from bright light by automatically deactivating the NVD. The optimized signal-to-noise ratio and minimal spotting ensure clear and detailed imaging under all conditions.
- Autogated Thin-Film Photocathode
- Autogating dynamically operates to improve image quality in changing light conditions. Automatic voltage regulation and a thin ion barrier reduce blooming artifacts caused by bright points of light and protect the intensifier tube from damage.
- Illuminated Mil-Dot Reticle
- An adjustable brightness amber-on-green mil-dot reticle clearly displays crosshair and mil markings with enhanced contrast.
- Zero Retention System
- A low profile heavy-duty Weaver mounting system and guaranteed zero retention on heavy caliber weapons including .50 BMG, .375 H&H, .416 Rigby.
- Construction
- The lightweight rugged housing is weather resistant and purgeable for maximum moisture resistance. This riflescope is engineered and tested to perform in extreme temperatures (-40 to 122°F), harsh weather, and demanding battlefield conditions.
In the Box Night Optics D-750 Gen 3 Gated 4x NV Riflescope Storage Case Lens Cloth 2 x AA Batteries Operator Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics D-750 Gen 3 Gated 4x NV Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics D-750 Specs | Intensifier Tube | Gen 3 autogated thin-film | | Resolution | 57-72 lp/mm | | Signal to Noise Ratio | Not specified | | Magnification | 4.0x | | Angle of View | 10° | | Lens System | 100 mm f/1.5 | | Minimum Focus Distance | 33 ft (10 m) | | Eye Relief | Not specified | | Dioptric Correction | -3 to 3 | | Infrared Illuminator | Optional | | Windage/Elevation Adjustment | 1/4 MOA click intervals | | Reticle | Illuminated Mil-Dot (amber-on-green) | | Power Supply | (1) AA batteries | | Runtime | Up to 60 hours of continuous operation at room temperature | | Weatherproofing | Waterproof, purgeable housing | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Dimensions | 9 x 4 x 3.5" (23 x 10.2 x 8.9 cm) | | Weight | 38 oz (1.1 kg) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 16.0 x 13.0 x 8.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
