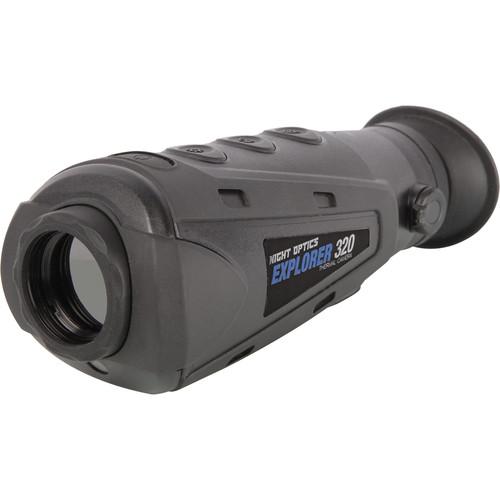

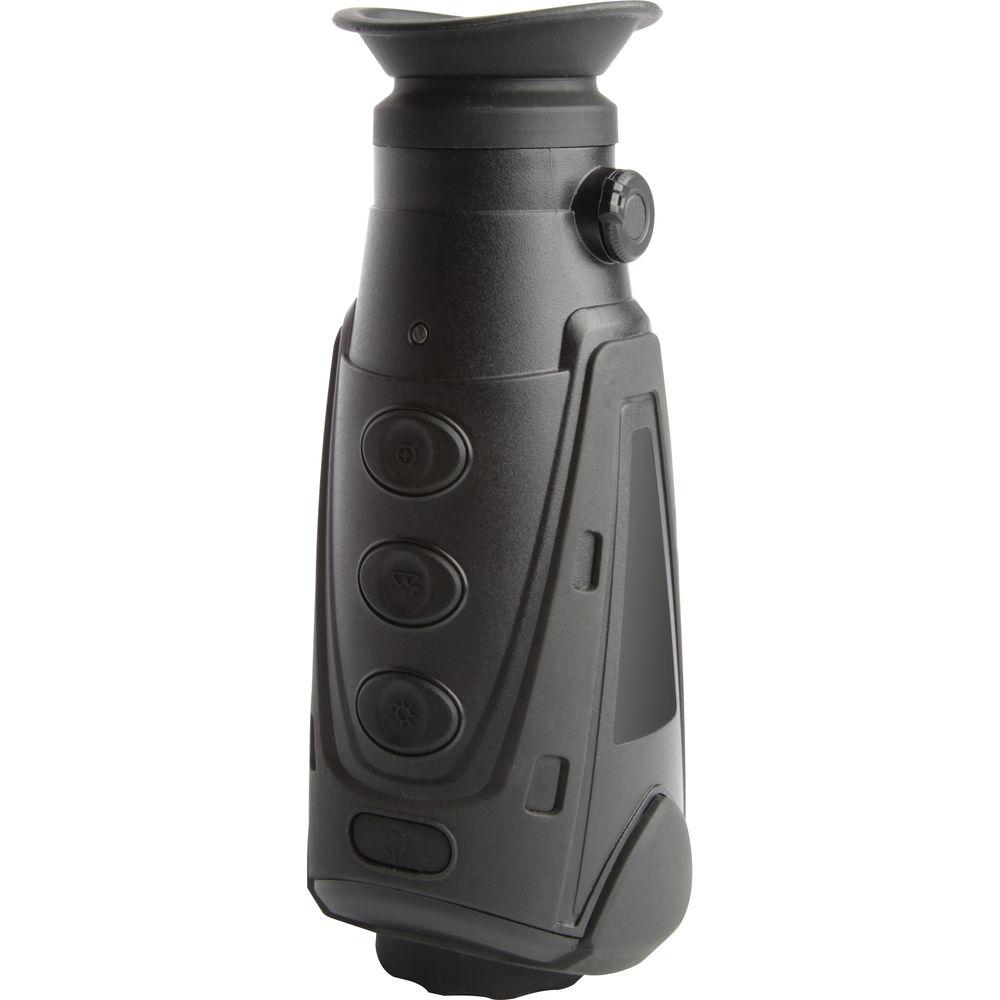

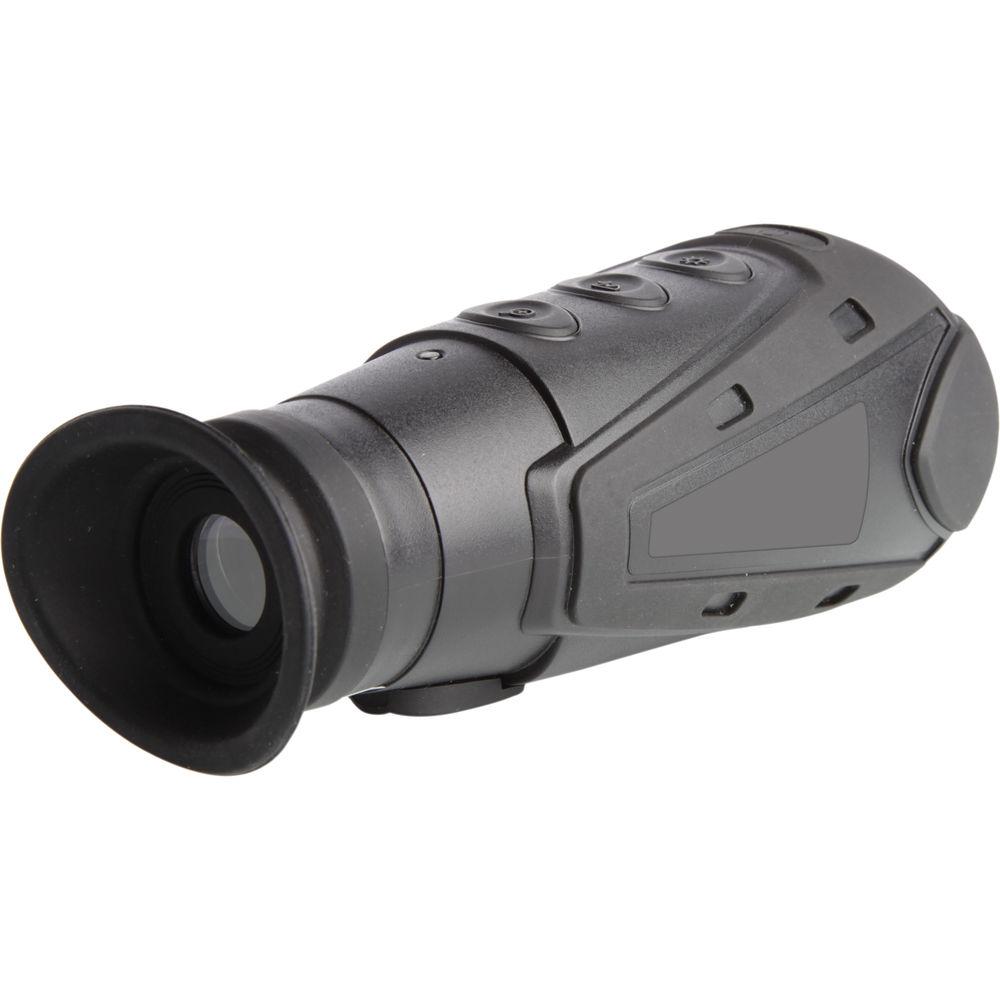

User Manual for Night Optics Explorer 320 19mm Thermal Imager Click to enlarge the picture
Contents of the user manual for the Night Optics Explorer 320 19mm Thermal
- Product category: Thermal Imagers Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Thermal Imagers
 |
User manual for the Night Optics Explorer 320 19mm Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The lightweight and compact Explorer 320 19mm Thermal Imager with laser pointing from Night Optics gives you the ability to view subjects through the dark, bad weather, fog, dust, smoke and light foliage. This multi-purpose long-wave infrared handheld thermal imager features a 19mm fixed focus lens system, 1x optical magnification, and up to 4x digital zoom. Customize the display output with different polarity modes: White Hot, Black Hot, and Red Hot. A video-out port enables the use of optional external recording or display equipment. Thermal imaging is extremely difficult to detect with other devices, as they emit no visible light or RF energy, unlike laser targeting or near-infrared illumination used with NVDs. Built for the rigors of outdoor use, the housing is IP67-rated to be dust and waterproof, and submersible to 3.3' for up to 30 minutes. It is also shock resistant to 3.3'. The wide -4 to 122°F operating temperature range allows the imager to be used in a variety of environments. Its permanently installed lithium-ion battery is charged via a micro-USB port with a maximum continuous runtime of 8 hours on a single charge. The Explorer 320 is ideally suited for hunting, search & rescue, security, surveillance, and livestock or wildlife management. - Imaging Performance
-
- Uncooled ASI FPA microbolometer: 384x288
- 19mm fixed focal lens system
- Magnification: 1x optical, 2x or 4x digital
- Detection range: 600 yd maximum
- Spectral range: 8-14 µm
- Pixel size: 25 µm
- System Features
-
- 640x480 OLED display
- Pointer: laser
- Three polarity options: Black Hot, White Hot, Red hot
- Selectable NTSC or PAL video-out, with option to disable the function
- Selectable refresh rate: 50Hz or 60Hz
- Image freeze
- Use and Handling
-
- Display brightness: five settings
- Dioptric adjustment: ±5
- OSD battery level indicator
- Power saver mode: no activity for 5 min shuts off the screen; camera shuts off 25 min after
- Flashlight mode: with camera off, holding brightness button activates the laser light
- Construction Details
-
- Shockproof to 3.3'
- Rated IP67: dustproof, and submersible to 3.3' for 30 min maximum
- Permanently installed Li-ion battery with micro-USB charging port
- 1/4"-20 tripod mount
- Weight: 10.7 oz
In the Box Night Optics Explorer 320 19mm Thermal Imager (Laser) Wrist Strap USB Cable Wall Charger Soft Carrying Pouch Limited 3-Year USA Warranty Limited 1-Year International Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Explorer 320 19mm Thermal Imager in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics TC-384ML Specs | Array Configuration | 384x288 uncooled ASI FPA microbolometer | | Pixel Size | 25 µm | | Spectral Response | 8-14 µm | | Magnification | 1 x optical zoom
2x, 4x digital zoom | | Lens System | 19mm fixed focus | | Video Output | NTSC or PAL
Up to 320x240 resolution | | Display | Type: OLED
Resolution: 640 x 480 | | Battery / Runtime | Permanently installed Li-Ion battery / 8 hr max | | Tripod Adaptable | 1/4"-20 | | Weatherproofing | IP67-rated, dust and waterproof
Submersible to 3.3' (1 m)for 30 min
Shockproof to 3.3' (1 m) | | Temperature Ranges | -4 to 122°F (-20 to 50°C) | | Dimensions | 6.2 x 2.6 x 2.4" (15.8 x 6.6 x 6.2 cm) | | Weight | 10.7 oz (305 g) |
