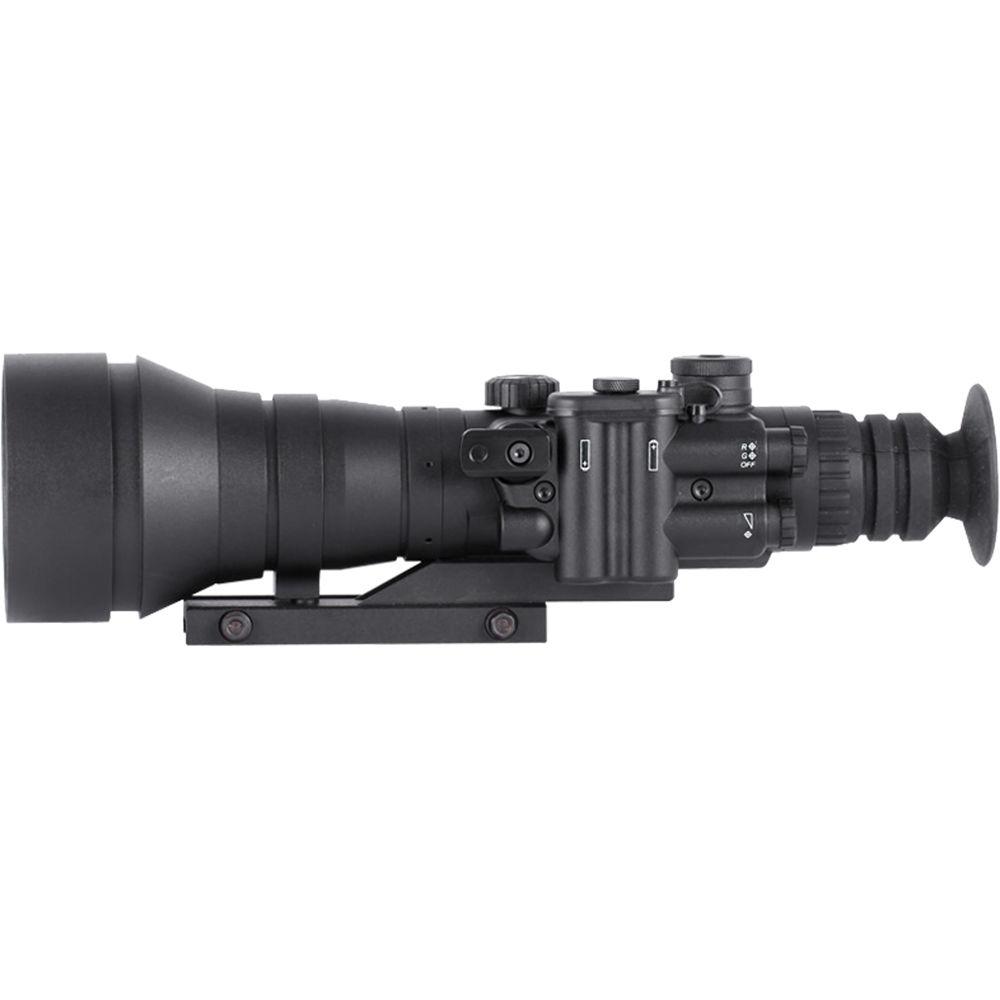

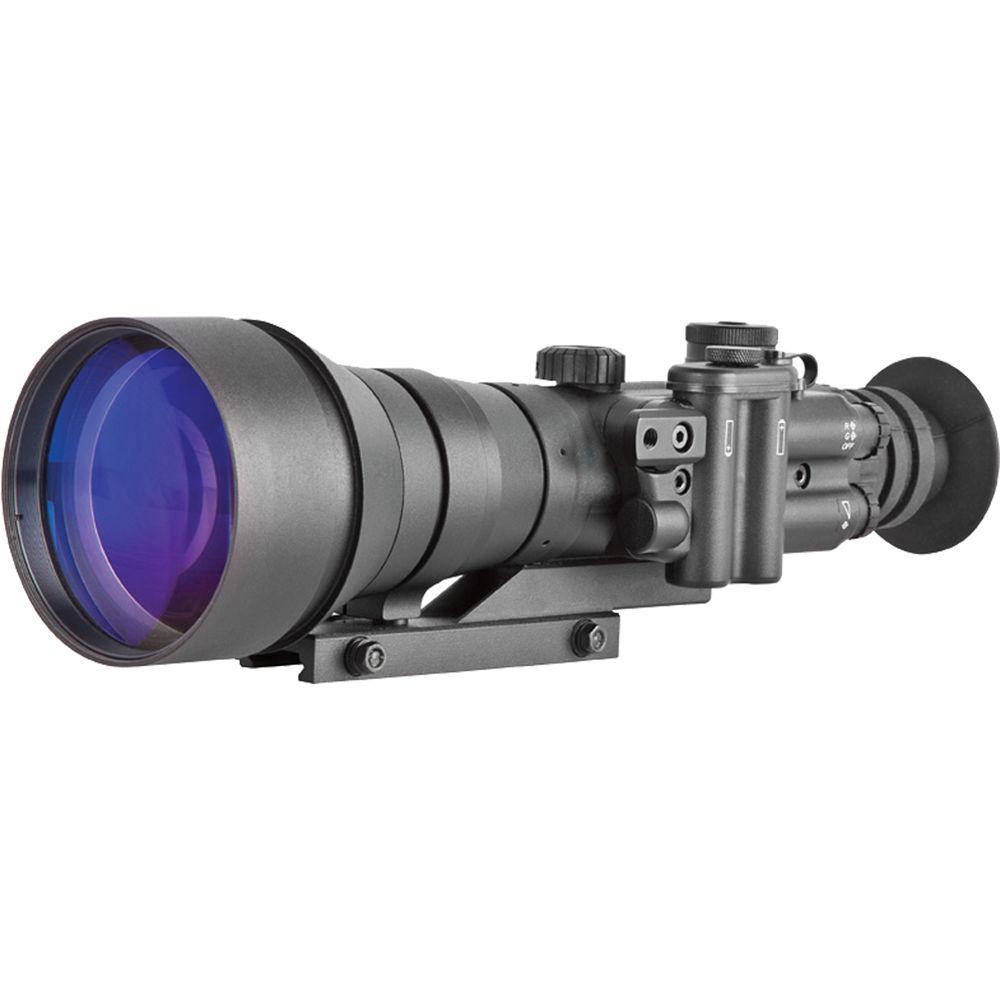

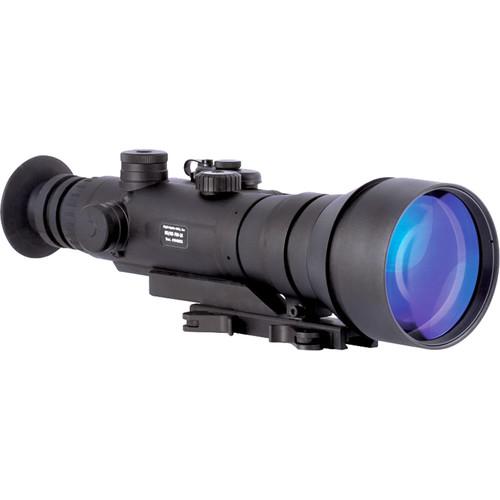

User Manual for Night Optics Gladius 760 6x 3rd Generation White Phosphor Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Night Optics Gladius 760 6x 3rd
- Product category: Night Vision Riflescopes Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Night Vision Riflescopes
 |
User manual for the Night Optics Gladius 760 6x 3rd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description Enhance long-range target acquisitions at night with the Gladius 760 6x 3rd Generation White Phosphor Night Vision Riflescope from Night Optics. It features a 3rd generation filmless autogated intensifier tube with resolution of 64-72 lp/mm and automatic brightness control. This intensifier will enable you to see brighter and clearer images than 1st and 2nd generation devices with similar optics. While the filmless microchannel plate increases signal-to-noise ratio and efficiency of the intensifier, the autogating greatly improves sensitivity in low light and varying lighting conditions, protects against bright light burnout, and extends life. The tube is also enhanced with the white phosphor technology for operators who prefer black and white images to green ones. You can adjust image brightness or detail with a manual gain control. To help you get a precision shot, this night vision optic is equipped with a red-green mil-dot reticle with adjustable brightness.
The optical system features high contrast multi-coated lenses that deliver improved detail, resolution, and image clarity and brightness. The 165mm f/2 objective lens offers a wide aperture for collecting more light at night and enhancing visibility. To enable operation in total darkness by providing additional illumination for your targets, this night vision device can be used with an optional infrared illuminator.
The housing is lightweight, impact-resistant, and waterproof. Using its quick release mount, this device can be easily mounted on Picatinny or Weaver style rails. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Night Vision Features
-
- 3rd generation
- 64-72 lp/mm resolution
- Manual gain control allows adjusting brightness or detail
- Filmless microchannel plate improves signal-to-noise ratio
- Autogating allows operation in varying light conditions and extends tube's life
- White phosphor technology generates black and white images instead of green ones
- Optical Performance
-
- Notable 6x magnification
- Multiple anti-reflection coatings improve transmission and resolution
- 8° angular field of view
- 165mm, f/2 lens system
- 33' minimum focus distance
- Automatic brightness control
- Bright source protection
- Reticle
-
- Red-green mil-dot reticle
- Variable brightness
- Use and Handling
-
- 1/4 MOA impact point correction
- +3 to -4 dioptric adjustment
- Construction Details
-
- Impact-resistant housing
- Infrared illuminator mount
- Knurled adjusters
- Windage and elevation adjustments
- Quick release Picatinny/Weaver mount
- Wide rubber eyecup
- Waterproof
In the Box Night Optics Gladius 760 6x 3rd Generation White Phosphor Night Vision Riflescope (Autogated, Red-Green Mil-Dot Reticle) Daylight Filter/Lens Cap Quick Release Mount IR Mount Rubber Eyecup Lens Cover Hard Case 2 x AA Batteries Lens Cloth Limited 2-Year USA Warranty Limited 1-Year International Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Gladius 760 6x 3rd Generation White Phosphor Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NS-760F3BM Specs | Reticle | Red-green
Adjustable brightness | | Intensifier Tube | 3rd generation
Filmless
Autogated
White phosphor | | Resolution | 64-72 lp/mm | | Magnification | 6x | | Angular Field of View | 8° | | Linear Field of View | 421.4' @ 1000 yd (140.5 m @ 1000 m) | | Lens System | 165mm, f/2 | | Minimum Focus Distance | 33' (10 m) | | Dioptric Correction | +3 to -4 | | Impact Point Correction | 1/4 MOA | | Infrared Illuminator | Optional | | Power Supply | 2 x AA (3V) / 60 h | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Waterproofing | Waterproof | | Dimensions | 13 x 4 x 3.6" (330 x 102 x 91 mm) | | Weight | 46 oz (1.3 kg) |
