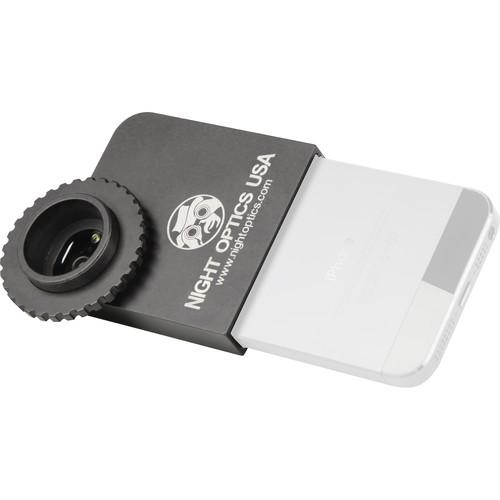

Product description The anodized aluminum iPhone 4/4s or 5/5s/5c/SE Adapter Plate for Select NVD from Night Optics holds your iPhone 4/4s or 5/5s/5c/SE in place for attachment to select night vision devices. Using this adapter plate requires a Night Optics adapter ring (available separately). Together they provide secure attachment of your iPhone to your NVD eyepiece and ensure a precise alignment between iPhone camera and the night vision optics.
To use this plate in your Night Optics digiscoping adapter and start taking photos or videos, you need to attach it to the eyepiece via the adapter ring. To do this, remove the NVD eyecup. Unscrew the segmented ring from your adapter's retaining ring and clamp it around the eyepiece with threads facing outward. Reconnect the retaining ring to the segmented ring and attach the adapter plate to the assembly.
Also included with this adapter plate are a shimming pad and a threaded locking ring. - Compatibility
-
- Use only with iPhone 4/4s or 5/5s/5c/SE
- Fits Night Optics Devices PVS-14, PVS-7, LRM-14, LRB-7 and D-7
- Not compatible with Night Optics D-730
- Requires Night Optics digiscoping adapter ring
- Use and Handling
-
- Allows using iPhone for capturing night vision videos and photos
- Connects iPhone to an eyepiece via an optional adapter ring
- Keeps your phone camera aligned with NVD optics
- Allows use of nearly all smartphone functions
- Construction Details
- In the Box Night Optics iPhone 4/4s or 5/5s/5c/SE Adapter Plate for Select NVD
- Threaded Locking Ring
- Shimming Pad
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics iPhone 4 4s or 5 5s 5c SE Adapter Plate for Select NVD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics CAM-IP Specs Material | Anodized aluminum | Dimensions | 3 x 2.8 x 0.96" (78.3 x 71 x 24.3mm) | Weight | 1.6 oz (45 g) |
