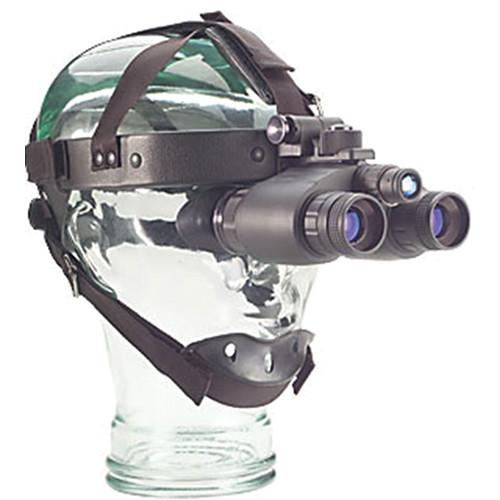

User Manual for Night Optics Iris 225 B W Gen 2 Night Vision Goggle Click to enlarge the picture
Contents of the user manual for the Night Optics Iris 225 B W
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
|
User manual for the Night Optics Iris 225 B W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description With the benefits of hands-free operation and a lightweight housing, the Iris 225 B/W Gen 2+ Night Vision Goggle from Night Optics provides an ideal night time surveillance solution for long periods. Dual intensifier tubes, with independent focus and dioptric adjustment, provide sharp stereoscopic vision with enhanced depth perception versus monocular or bi-ocular NVDs. An integrated IR illuminator allows you to comfortably view your target, in extreme low light conditions. A two-stage on/off knob provides easy activation while wearing the goggles. Turn the knob to turn them on, continue rotating it to turn the illuminator on. Designed for long duration observation, the NVD weighs just 20 oz. The weatherproof housing has a rubberized armored exterior to help protect it from drops, bumps, and impacts. - Performance Details
-
- Black and white image display
- Dual Gen 2+ white phosphor intensifier tubes
- 26mm f/1.2 lens system
- Field of view: 790' @ 1000 yd
- 10' close focus distance
- Use and Handling
-
- Individual focusing rings and dioptric adjustment
- Built-in IR illuminator
- Large 2-stage on/off knob: Rotate to turn goggles on, continue turning to activate IR illuminator
- Runs on a single CR123 battery with up to 30 hr runtime
- Construction Details
-
- Includes head mount for hands-free use
- Weatherproof housing
- Wide -4 to 113°F operating temperature
- Lightweight; 20 oz
In the Box Night Optics Iris 225 B/W Gen 2+ Night Vision Goggle CR123 Battery Flip-Up Head Mount Hard Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Iris 225 B W Gen 2 Night Vision Goggle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NG-225-2BW Specs | Intensifier Tube | Gen 2+ | | Magnification | 1x | | Angle/Field of View | Apparent: 40°
790' @ 1000 yd (263 m @ 1000 m) | | Lens System | 26 mm f/1.2 | | Minimum Focus Distance | 10' (3 m) | | Eye Relief | Not specified by manufacturer | | Dioptric Correction | ±4 | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x CR123 / 30 hr, maximum | | Weatherproofing | Weatherproof | | Operating Temperature | -4 to 113°F (-20 to 45°C) | | Dimensions | 4.5 x 4.5 x 2.5" (11.4 x 11.4 x 6.4 cm) | | Weight | 20 oz (538 g) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
