User Manual for Night Optics Krystal 950 1x 3rd Generation Night Vision Clip-On System Click to enlarge the picture
Contents of the user manual for the Night Optics Krystal 950 1x 3rd
- Product category: Day/Night Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Day/Night Systems
 |
User manual for the Night Optics Krystal 950 1x 3rd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|

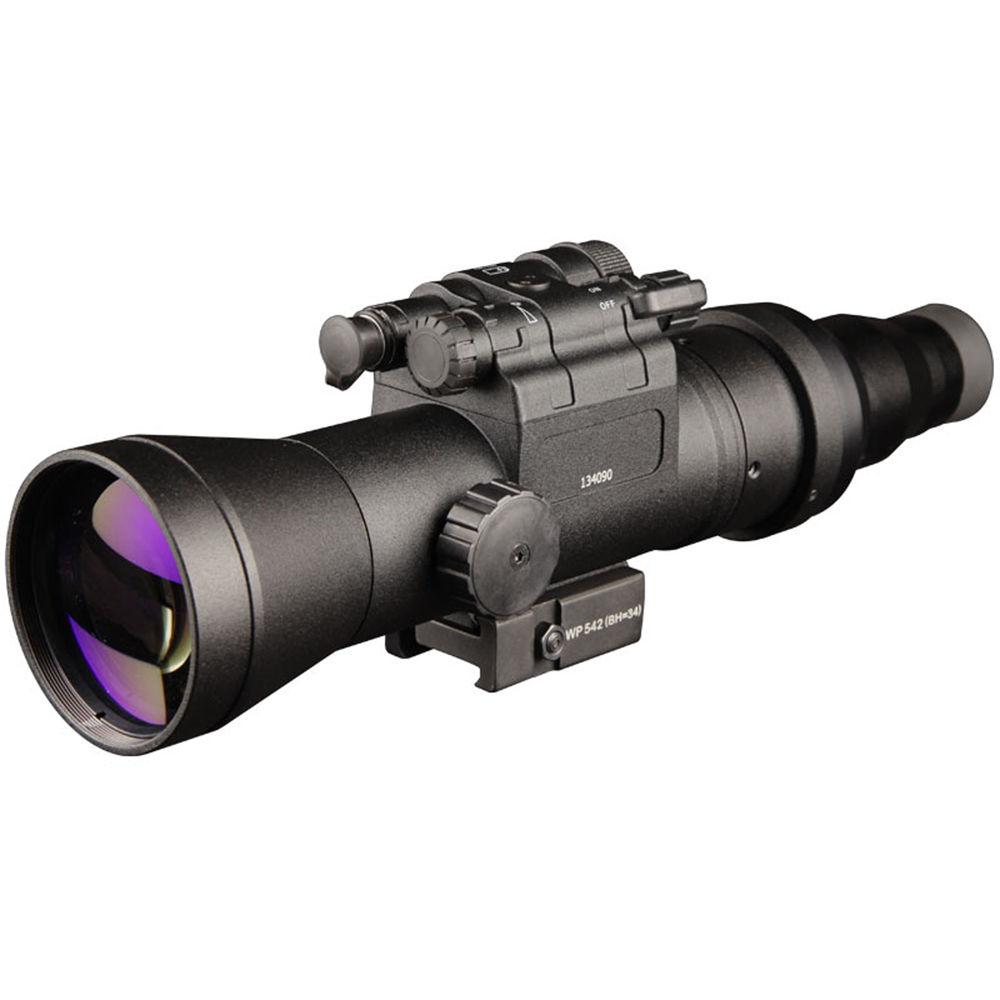

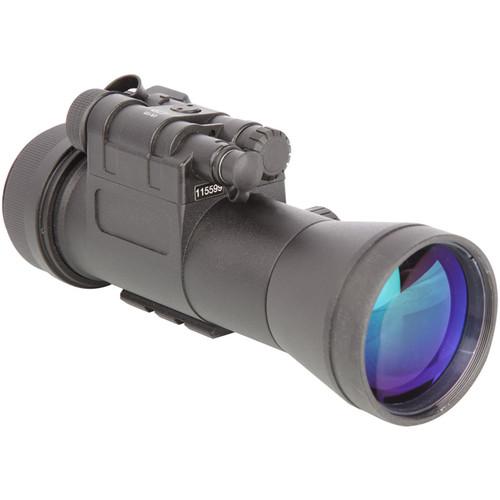

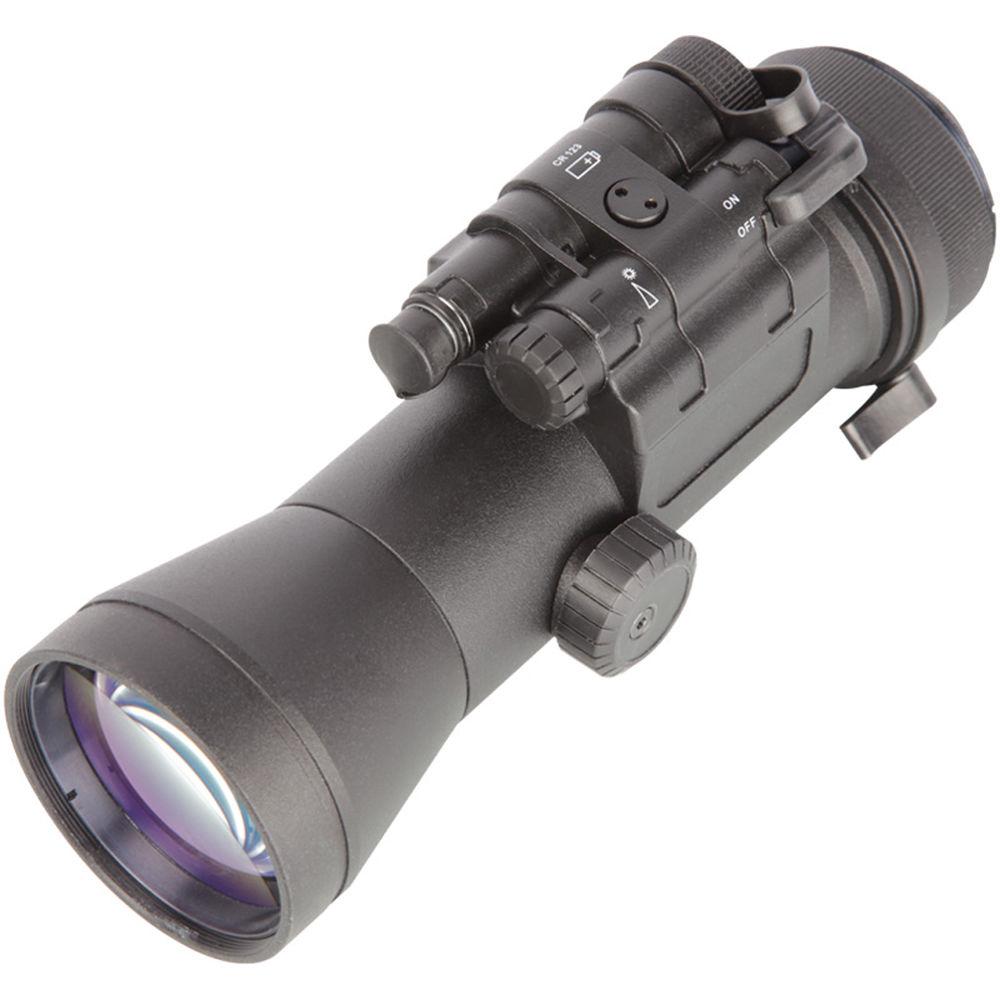

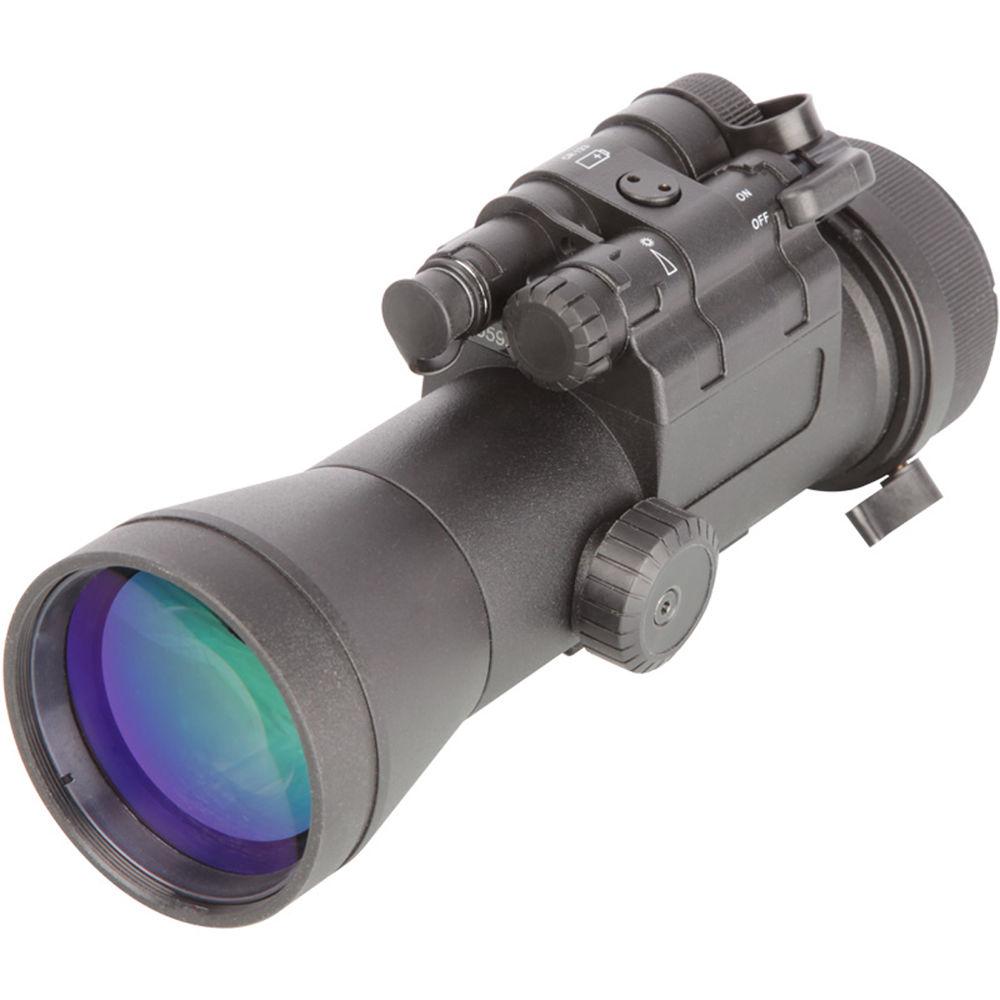

Product description Enhance your high-magnification day riflescope with the Krystal 950 1x 3rd Generation Night Vision Clip-On from Night Optics. The clip-on features a 3rd generation filmless autogated intensifier tube with resolution of 64-72 lp/mm and automatic brightness control. It will enable you to see brighter and clearer images than 1st and 2nd generation devices with similar optics. While the filmless microchannel plate improves signal-to-noise ratio and efficiency of the intensifier, the autogating allows safe operation in high-light, protects against bright light burnout, and extends life. You can adjust image brightness or detail with a manual gain control. For improving light transmission, image clarity, and contrast, the lenses feature high definition glass and multiple anti-reflection coatings. The 1x 78mm f/1.5 lens system has a 34mm rear aperture to support day riflescopes with up to 25x magnification. It also offers an 8.8° field of view and a minimal focus distance of 33'.
The lightweight and impact-resistant housing is waterproof. It features a slender body design, knurled knobs and adjusters, and has a built-in Picatinny/Weaver rail for mounting accessories. Also included with this night vision clip-on device are a throw lever mount adapter, storage case, flip-out lens cap/daylight filter, and a CR-123 battery. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Night Vision Features
-
- 3rd generation
- 64-72 lp/mm resolution
- Filmless MCP offers increases sensitivity and signal-to-noise ratio
- Autogating allows operation in high-light conditions, slows down degradation, and extends tube life
- Optical Performance
-
- High definition optics for higher contrast and clarity
- Compatible with up to 25x riflescopes
- 78mm, f/1.5 lens system
- 34mm rear aperture
- 8.8° angular field of view
- 33' minimum focus distance
- Construction Details
-
- Impact-resistant body
- Throw lever adapter for attachment to day riflescope
- Picatinny/Weaver rail for mounting accessories
- Knurled adjusters
- Lens cap
- Waterproof

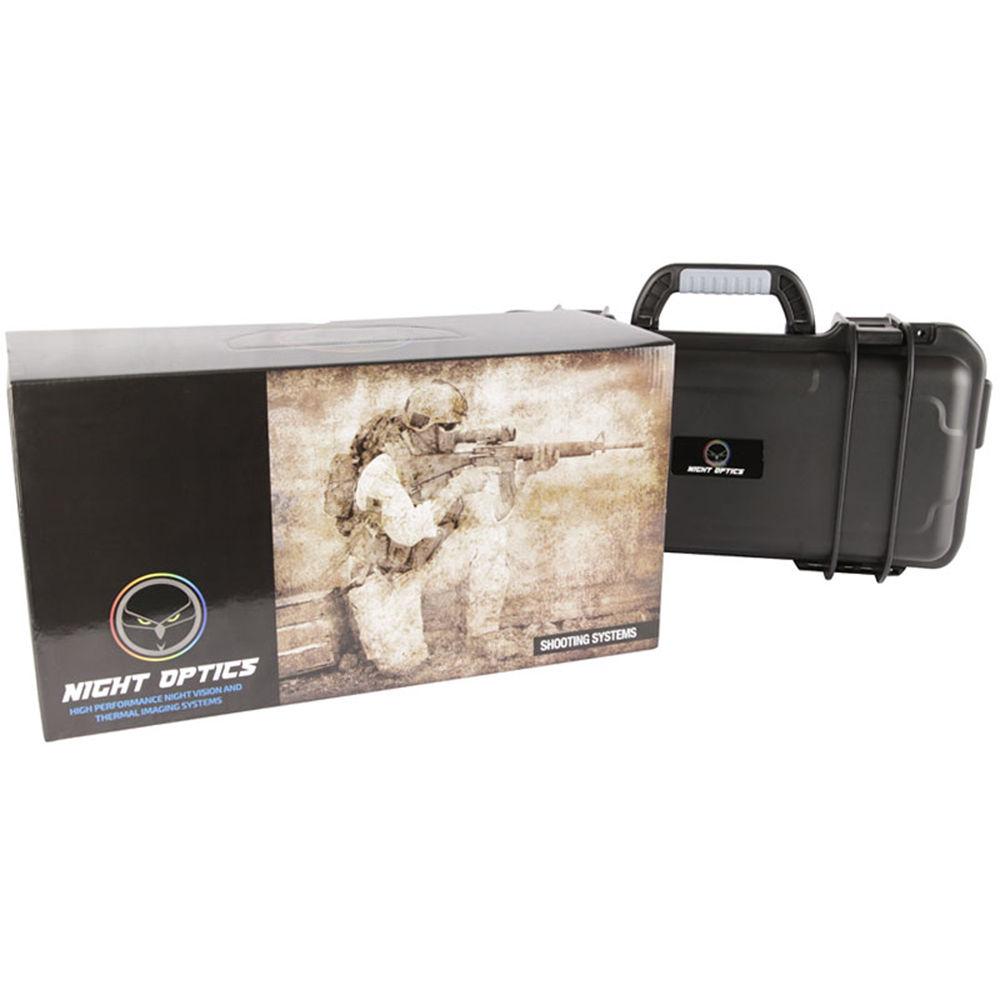

UPC: 029757002273 In the Box Night Optics Krystal 950 1x 3rd Generation Night Vision Clip-On System (Filmless, Autogated) Throw Lever Adapter Flip-Out Lens Cap/Daylight Filter Hard Case CR-123 Battery Lens Tissue Limited 2-Year USA Warranty Limited 1-Year International Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Krystal 950 1x 3rd Generation Night Vision Clip-On System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics 950 G3 Specs | Intensifier Tube | 3rd generation
64-72 lp/mm
Filmless
Autogated | | Magnification | 1x
Supports up to 25x riflescopes | | Angle/Field of View | 8.8° | | Linear Field of View | 464.2' @ 1000 yd (154.8 @ 1000 m) | | Lens System | 78mm, f/1.5
34mm rear aperture | | Minimum Focus Distance | 33' (10 m) | | Infrared Illuminator | Optional | | Battery / Runtime | 1 x CR-123 battery / 60 h | | Weatherproofing | Waterproof | | Temperature Ranges | -40 to 122°F (-40 to 50°C) | | Dimensions | 8.5 x 3.5 x 2.6" (215 x 88 x 66 mm) | | Weight | 23 oz (652 g) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
