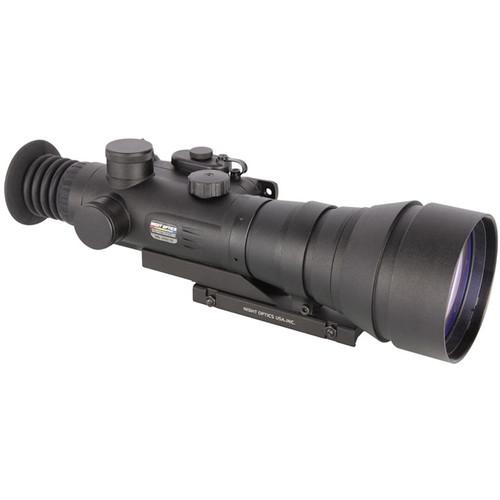

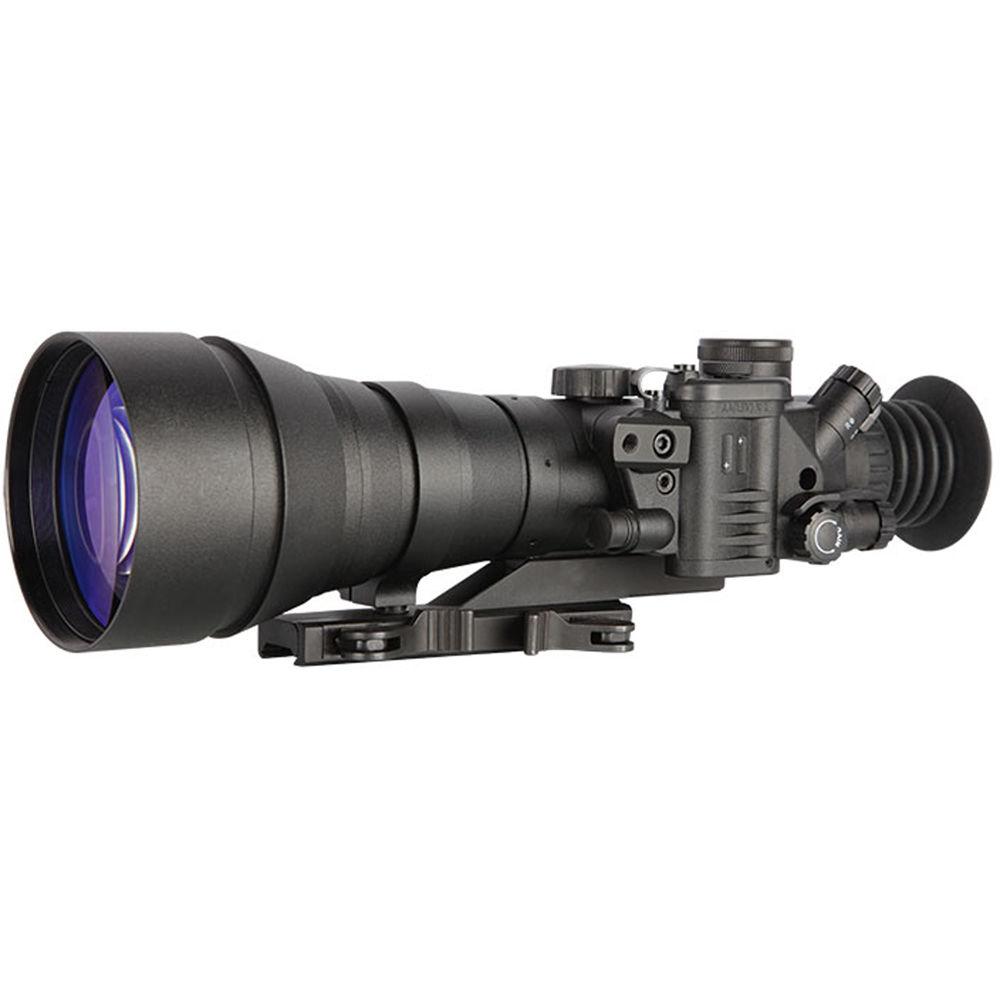

Product description Enhance long-range target acquisitions at night with the Magnus 790 6x 3rd Generation Night Vision Riflescope from Night Optics. It features a 3rd generation filmless autogated intensifier tube with resolution of 64-72 lp/mm and automatic brightness control. This intensifier will enable you to see brighter and clearer images than 1st and 2nd generation devices with similar optics. While the filmless microchannel plate increases signal-to-noise ratio and efficiency of the intensifier, the autogating greatly improves sensitivity in low light and varying lighting conditions, protects against bright light burnout, and extends life. You can adjust image brightness or detail with a manual gain control. To help you get a precision shot, this night vision optic is equipped with a red-green mil-dot reticle with adjustable brightness.
The optical system features high contrast multi-coated lenses that deliver improved detail, resolution, and image clarity and brightness. The 165mm f/2 objective lens offers a wide aperture for collecting more light at night and enhancing visibility. To enable operation in total darkness by providing additional illumination for your targets, this night vision device can be used with an optional infrared illuminator.
The housing is lightweight, impact-resistant, and waterproof. Using its quick release mount, this device can be easily mounted on Picatinny or Weaver style rails. Also included are a hard carrying case, IR mount, rubber eye guard, and protective lens cap/daylight filter. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Night Vision Features
-
- 3rd generation
- 64-72 lp/mm resolution
- Manual gain control allows adjusting brightness or detail
- Filmless microchannel plate improves signal-to-noise ratio
- Autogating allows operation in varying light conditions and extends tube's life
- Optical Performance
-
- Notable 6x magnification
- High contrast optical glass for greater image detail and clarity
- Multiple anti-reflection coatings improve transmission and resolution
- 6.3° angular field of view
- 165mm, f/2 lens system
- 33' minimum focus distance
- Automatic brightness control
- Bright source protection
- Reticle
-
- Red-green mil-dot reticle
- Variable brightness
- Use and Handling
-
- 1/4 MOA impact point correction
- Precision windage and elevation adjustments
- +4 to -3 dioptric adjustment
- Construction Details
-
- Impact-resistant housing
- Infrared illuminator mount

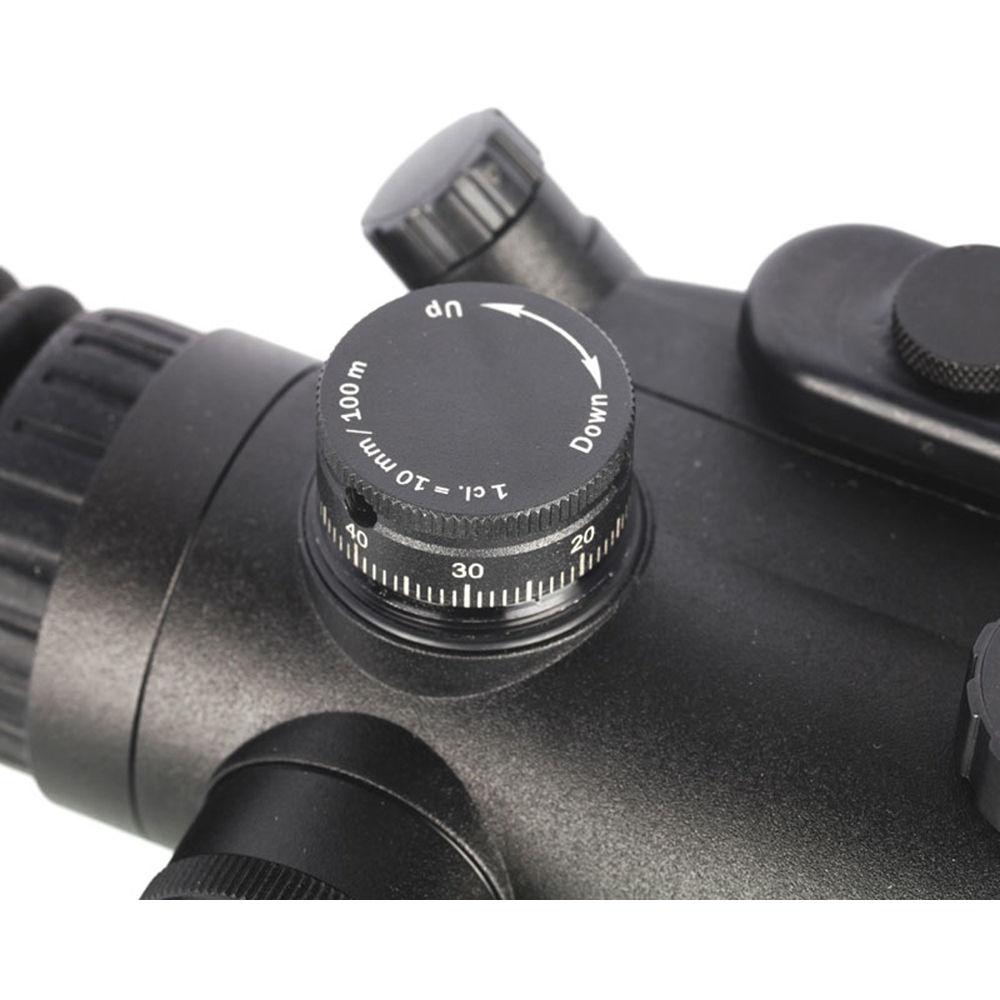

- Finger operated exposed elevation adjustment
- Knurled adjusters
- Windage and elevation adjustments
- Quick release Picatinny/Weaver mount
- Wide rubber eyecup
- Waterproof

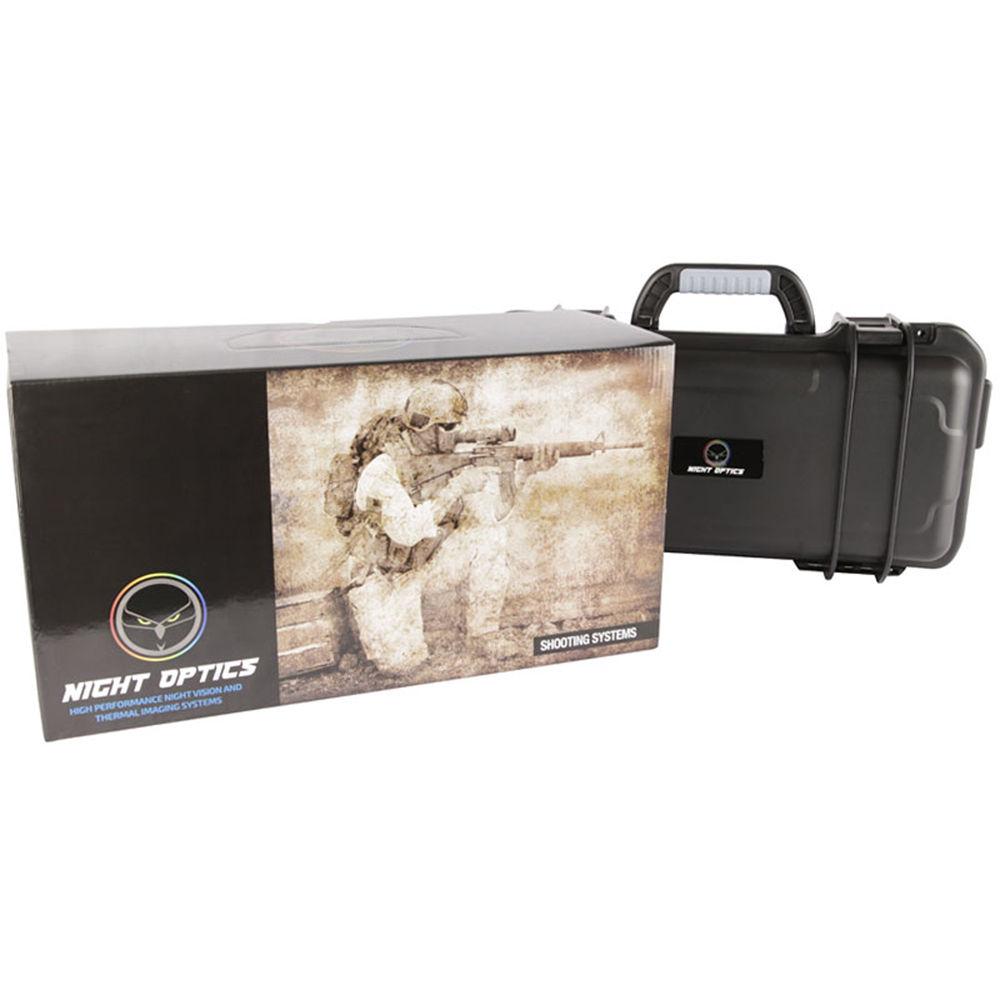

UPC: 029757002228 In the Box Night Optics Magnus 790 6x 3rd Generation Night Vision Riflescope (Autogated, Filmless, Red-Green Mil-Dot Reticle) - Daylight Filter/Lens Cap
- Quick Release Mount
- IR Base Mount
- Rubber Eye Guard
- Hard Case
- Limited 2-Year USA Warranty
- Limited 1-Year International Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Magnus 790 6x 3rd Generation Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NS-790F3GM Specs | Reticle | Red-green
Adjustable brightness | | Intensifier Tube | 3rd generation
Filmless
Autogated | | Resolution | 64-72 lp/mm | | Magnification | 6x | | Angular Field of View | 6.3° | | Linear Field of View | 331.1' @ 1000 yd (110.4 m @ 1000 m) | | Lens System | 165mm, f/2 | | Minimum Focus Distance | 33' (10 m) | | Eye Relief | 3.5' (90 mm) | | Dioptric Correction | +4 to -3 | | Impact Point Correction | 1/4 MOA | | Infrared Illuminator | Optional | | Power Supply | 2 x AA / 60 h | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Waterproofing | Waterproof | | Dimensions | 12.2 x 3.85 x 3.5" (310 x 98 x 90 mm) | | Weight | 38.8 oz (1.1 kg) |
