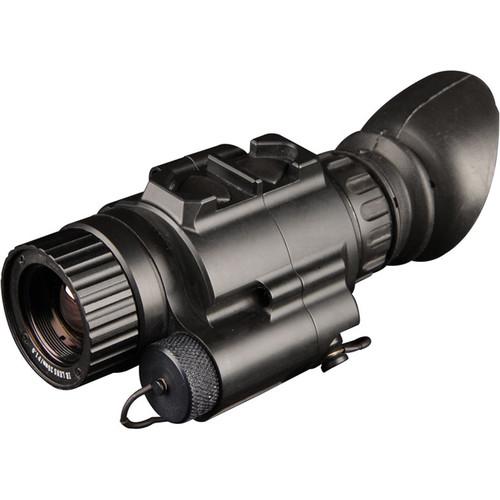

User Manual for Night Optics Micro 2 640 Ultra-Compact Thermal Monocular Click to enlarge the picture
Contents of the user manual for the Night Optics Micro 2 640 Ultra-Compact
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
|
User manual for the Night Optics Micro 2 640 Ultra-Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description Detect human invaders, wildlife, livestock, running combustion and jet engines, hot wires, infrared lasers and lamps, or other hidden heat sources with the Micro 2 640 Ultra-Compact Thermal Monocular from Night Optics. This ultra-compact thermal imager fits in the palm of your hand and brings to the table a number of useful features such as an uncooled vanadium oxide (VOx) microbolometer with resolution of 640x480 and a brilliant 600x800 AMOLED display. While the thermal imaging sensor does not require cooling and detects infrared light in the spectral range of 7.5-13.5µm, the electronics provide viewing capabilities through either the internal display with a refresh rate of 30 Hz, or to external recorder or screen in NTSC/PAL formats. The 20mm, f/1.0 germanium lens system offers a maximum field of view of 9 x 12° and a close focus distance of 26.2'. If you need a close-up on your target, the system allows for digital zoom of up to 4x. Additionally, the device features an image brightness control and an accelerometer for keeping displayed images upright regardless of actual orientation of monocular. Also noteworthy is a single calibration of the thermal core performed on start-up, which saves battery life and ensures quiet operation.
The housing is made of a lightweight, durable polymer and has a contoured shape with knurled adjusters and rings. To protect the germanium objective lens from dirt, scratches, and debris, the housing has a flip-out objective lens cup. With the wide, rubber eyecup you will have comfortable contact with the eyepiece and will not spill out any display light. The control buttons are arranged in a staggered configuration for an easy reach and one-handed operation with either hand for handheld operation. With the included adapter, you can also mount the device to your choice of weapons or headgear. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Thermal Imager and Optical Performance
-
- Uncooled VOx microbolometer
- Resolution: 640x480 pixels
- 20mm f/1.0 fixed focal lens system
- Magnification: 1x, 2x, 4x
- Field of view: 9 x 12°
- Spectral range: 7.5-13.5µm
- Display & Video Performance
-
- 600x800 AMOLED display
- Polarity options: Black Hot, White Hot
- NTSC or PAL video-out
- Refresh rate: 30 Hz
- Image brightness control
- Accelerometer allows for image rotation
- Dioptric adjustment: +2 to -6
- Use and Handling
-
- Single thermal core calibration on start-up preserves battery and ensures quiet operation
- Ergonomic menu buttons are optimized for comfortable one-handed operation
- Uses single CR-123 battery with runtime of 2 hours
- Construction Details
-
- Lightweight, durable, and ergonomic polymer housing
- All-in-one mount for headgear, helmet, tripod, or weapon
- Wide winged rubber eyecup prevents leakage of light
- Operating temperature from -40 to 131°F
- Picatinny/Weaver mounting point
- Flip-out objective cup
- Shock-resistant
- Water-resistant
UPC: 029757002327 In the Box Night Optics Micro 2 640 Ultra-Compact Thermal Monocular - Mount
- Objective Cover
- Rubber Eyecup
- Video/Power Cables
- Storage Pouch
- CR-123 Battery
- Lens Cloth
- Limited 2-Year USA Warranty
- Limited 1-Year International Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Micro 2 640 Ultra-Compact Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics M2-20640 Specs | Array Configuration | 640x480 uncooled VOx microbolometer | | Thermal Sensitivity (NETD) | <50mK | | Pixel Size | Not provided by manufacturer | | Spectral Response | 7.5-13.5 µm | | Magnification | 1x
2x, 4x digital zoom | | Lens System | 20mm, f/1.0, focusable | | Field of View | 9 x 12° | | Close Focus Distance | 26.2' (8 m) to infinity | | Eye Relief | 1" (25 mm) | | Display | 600x800 AMOLED | | Refresh Rate | 30 Hz | | Video Output | NTSC or PAL | | Battery / Runtime | 1 x CR-123 (3V) battery / 2 h max | | Weatherproofing | Water-resistant | | Impact Resistance | Shock-resistant | | Temperature Ranges | -40 to 131°F (-40 to 55°C) | | Dimensions | 4.3 x 2.5 x 2.4" (108 x 64 x 60 mm) | | Weight | 10.6 oz (300 g) |
