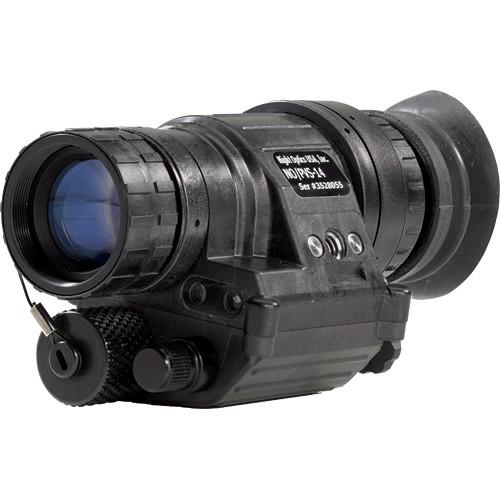

User Manual for Night Optics NO-PVS-14-3AG Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Night Optics NO-PVS-14-3AG Night Vision Monocular
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
|
User manual for the Night Optics NO-PVS-14-3AG Night Vision Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The PVS-14 Gen 3 Advanced 1x Night Vision Monocular by Night Optics uses Autogated Third Generation Night Vision imaging technology in a durable, compact, mountable monocular. You are able to adjust image brightness with Manual Gain Control for enhanced contrast under different light conditions. This 3rd Gen Night Vision Monocular features an auto-gated image intensifier tube improving image quality in dynamic lighting conditions. Automatic voltage regulation and an ion barrier reduces blooming artifacts caused by bright light, protecting your eyes and the intensifier tube from damage. The Pinnacle Tube is a thin-filmed image intensifier with variable gain control, giving the operator the flexibility to increase or decrease image brightness for greater contrast and is rated to deliver a minimum of 64 lp/mm of resolution. Workhorse for tactical and law enforcement operatives, the PVS-14 Night Vision Monocular is a dependable optical device for surveillance, target acquisition, and terrain navigation. Mount it with close quarter battle sight or day/night adapter for night engagements in the most demanding conditions. Note: Note! Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Advanced Third Generation Intensifier
- Advanced Generation III Pinnacle Image Intensifier Tube features Automatic Brightness Control and is protected from damage by fully-automated sensors that shut off the unit when exposed to bright light. The exceptional S/N ratio minimizes distortion, ensuring a clear and detailed view at all times. Made in USA
- Auto-Gated Power Supply
- Auto-gating constantly operates to improve image quality in dynamic lighting conditions. Automatic voltage regulation and an ion barrier reduce blooming artifacts caused by bright points of light and protect the intensifier tube from damage.
- Manual Gain Control
- Variable gain control enhances your control and performance in various light conditions.
- Simple User Controls
- Easily accessible 3-position switch allows quick use Off, On, Momentary and Constant IR functions.
- Multifunction
- Can be mounted for a variety of uses; head mount, helmet mount, weapon mount. Also used handheld or adapted for photo and video applications.
- Rugged Construction
- Lightweight rugged design is waterproof to 66 ft; performs indoors and in the elements, in confined and opened spaces.
- Run Time
- 40 hours of operation at room temperature on a single AA battery.
UPC: 029757001054 In the Box Night Optics NO-PVS-14-3AG Night Vision Monocular f/1.12 Objective Lens Assembly Sacrificial FIlter Demist Shield Hard Case Operator's Manual Lens Cloth AA Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics NO-PVS-14-3AG Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics PVS-14 Specs | Intensifier Tube | Generation III Autogated Pinnacle | | Magnification | 1.0x | | Angle/Field of View | 40° / 2184 ft @ 1000 m | | Lens System | 26 mm f/1.12 | | Minimum Focus Distance | 10 in (25 cm) | | Dioptric Correction | -6 to +2 | | Infrared Illuminator | Yes | | Battery / Runtime | 1 AA / 40 hours | | Weatherproofing | Waterproof to 66 ft | | Operating Temperature | -60° to 125° F (-51 - 51° C) | | Dimensions | 4.5 x 2.25 x 2" (11 x 5.7 x 5 cm) | | Weight | 13.8 oz (391 g) | | Warranty | 2 Years | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 13.0 x 9.5 x 4.9" |
