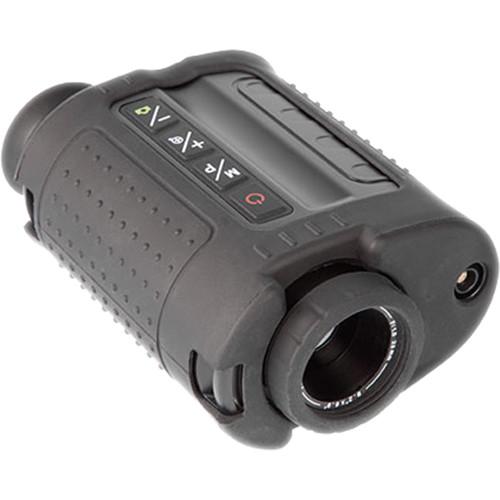

User Manual for Night Optics Observer 384x288 25mm Thermal Imager Click to enlarge the picture
Contents of the user manual for the Night Optics Observer 384x288 25mm Thermal
- Product category: Thermal Imagers Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Thermal Imagers
|
User manual for the Night Optics Observer 384x288 25mm Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The Observer 384x288 25mm Thermal Imager from Night Optics is more compact and lightweight observation tool than its peers. It is intended for observing livestock and wildlife, surveillance, security, or search and rescue. The 384x288 uncooled ASI FPA microbolometer and 25mm f/1.0 lens system enables a maximum detection range out to 500 yd. Images are viewed through a 1x eyepiece on a 640x480 OLED display with a 2x digital option. Three reticles, nine selectable color schemes and two polarities provide customizable viewing to suit the situation or personal preferences. An on-board SD memory card slot enables video and still images to be captured, stored, and viewed on the Observer. A video-out port allows the use of an external monitor or recording device. The Observer also offers several power options. It comes with a rechargeable battery pack with a 3hr maximum runtime. Included with the imager is a 12VDC car adapter and a 110VAC US wall plug. Rubberized armor protects the weatherproof housing from impacts and drops. A wide -4 to 122°F operating temperature allows it to be used in most locations. The Observer is just 7.1" long and weighs just over a pound. - Image Performance
-
- Uncooled ASI FPA microbolometer: 384x288
- 25mm f/1.0 fixed focus lens system
- 1x optical magnification, 2x digital zoom
- 9.2°x6.9° field of view
- 16' minimum focus distance
- Detection range: 500 yd maximum
- System Features
-
- Display: 640x480 OLED
- Brightness and contrast control: full auto, semi-auto or manual
- Calibration: auto and manual
- Still-image and video capture capabilities
- Video signal types: NTSC and PAL
- Video out serial port at 320x240 resolution
- Reticles
-
- Three selectable crosshairs
- Crosshair: A conventional crosshair reticle with thin hairs on both axes
- Broken-center crosshair: Thin hairs on the outside, stopping near the center to provide an unobstructed view of the center aiming area
- Broken-center with aiming point: Thin hairs on the outside, stopping near the center with a small center aiming point
- Use and Handling
-
- Real Time Tracking places a bracket around the 'hottest' point and tracks it as it moves through the field of view
- Polarity options: Black Hot, White Hot
- Nine selectable color schemes
- SD memory card slot with 4GB card included
- In-view OSD battery status indicator in 25% increments
- Runs on the included battery pack, 12VDC or 110VAC external power
- Playback stored files and view on OLED display
- Construction Details
-
- Protective rubberized armoring
- Weatherproof housing
- Wide operating temperature range: -4 to 122°F
- Lightweight: 16.6 oz
In the Box Night Optics Observer 384x288 25mm Thermal Imager USB Cable Rechargeable Battery Pack 110VAC Battery Charger 12VDC Car/Vehicle Charger External Power Cable 4GB SD Card Lens Cover Lens Cloth Hand Strap Carrying Case with Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Observer 384x288 25mm Thermal Imager in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics TM-X32-25 Specs | Array Configuration | 384x288 uncooled ASI FPA microbolometer | | Refresh Rate | NTSC: 60 Hz
PAL: 50 Hz | | Pixel Size | 25 µm | | Spectral Response | 8-14 µm | | Thermal Sensitivity (NETD) | <120 mK | | Magnification | 1x optical
2x Digital | | Lens System | 25mm f/1.0 fixed focus | | Field of View | 9.15° x 6.87° | | Minimum Focus Distance | 16' (5 m) | | File Format | Video: AVI
Still: Bitmap | | Video Output | Signal: NTSC / PAL
Resolution: 320 x 240 | | Display | 640 x 480 OLED | | Memory Card | SD card slot | | Power Source | Rechargeable battery pack
12 VDC with included adapter
110 VAC with included adapter | | Run Time | 3 hr maximum, with battery pack | | Weatherproofing | Weatherproof | | Temperature Ranges | -4 to 122°F (-20 to 50°C) | | Dimensions | 7.1 x 3.8 x 2.6" (18.2 x 9.7 x 6.8 cm) | | Weight | 16.6 oz (470 g) |
