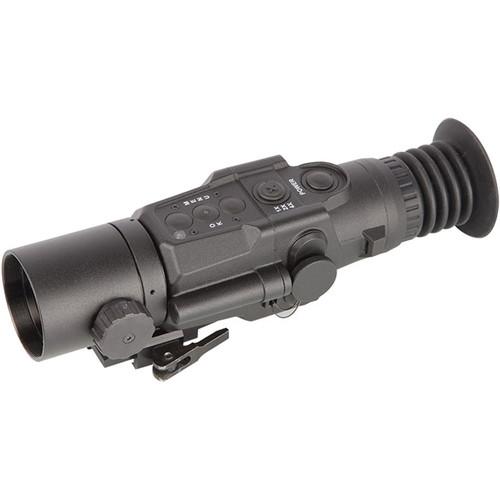

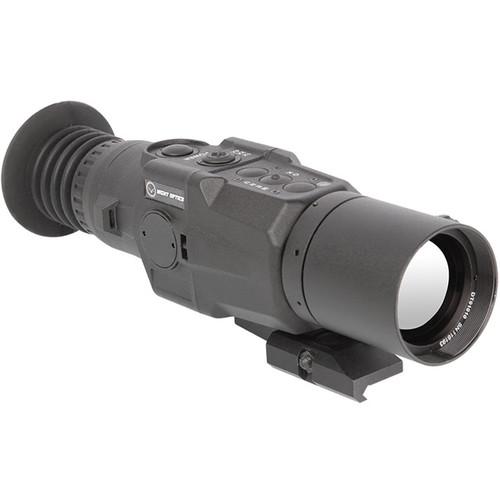

Product description Gain a tactical advantage with the versatile Panther 640 Thermal Riflescope from Night Optics. With the touch of a button this compact thermal imaging riflescope can be set to work as a clip-on with your existing day riflescope. Just remove the eyecup before connecting to your scope objective bell. The sensor features an uncooled vanadium oxide II (VOx II) microbolometer with a resolution of 640x480 pixels and a brilliant 800x600 AMOLED display. While the thermal imaging sensor detects infrared radiation in the spectral range of 8-14µm, the electronics provide viewing capabilities through either its integrated display or an optional factory configuration to relay video output to an external recorder or screen. The default refresh rate is 30 Hz and an NTSC video format. Factory-set options exist for a 60 Hz refresh rate and a PAL video output format. The 50mm f/1.2 germanium lens system offers a maximum field of view of 6.5 x 5° and a close focus distance of 33' in riflescope configuration and 66' in clip-on configuration. The magnification of the device will depend on its use. In the default rifle sight mode, you will obtain 3.5x optical magnification and 1-4x digital zoom, giving you a total magnification range of 3.5-14x. In the clip-on mode, you will get a 1x power and can use optical zoom of your day scope for close-ups on your targets. Additionally, the electronics of this device offer a number of useful features: fast start-up, automatic brightness control, automatic shutter control, three polarity options, and seven color palettes. To help you with target acquisitions, this device also features digital mil-dot and crosshair reticles with five color options.
The water-resistant and impact-resistant housing features a lightweight and durable polymer construction and offers knurled adjusters and rings for a non-slip grip. To protect the germanium objective lens from dirt, scratches, and debris, it has a flip-out objective lens cup. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARsrqucswdttuxwqrb), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Thermal Imager and Optical Performance
-
- 640x480 Uncooled VOx II microbolometer
- 50mm, f/1.2 germanium lens system
- Riflescope mode offers 3.5-14x total zoom
- 1x clip-on mode supports 1-12x riflescopes
- Maximum field of view: 6.5 x 5°
- Spectral range: 8-14µm
- Display & Video Performance
-
- 800x600 AMOLED display
- Option for video output available
- Default refresh rate: 30 Hz
- Optional 60 Hz refresh rate available
- Automatic ambient light adjustment
- Automatic and manual shutter calibration
- Adjustable display brightness
- Polarity options: Black Hot, White Hot, Sepia
- Default NTSC or optional PAL video-out
- Seven color palettes
- Reticle
-
- Mil-dot digital reticle
- Crosshair digital reticle
- Five reticle colors: red, green, yellow, white, and black
- Use and Handling
-
- Fast start-up takes 3 seconds
- Uses two CR-123 batteries with runtime of 4 hours
- Digital windage and elevation adjustments
- Ergonomic menu buttons
- Construction Details
-
- Lightweight, durable, and ergonomic polymer housing
- Can be attached to riflescope objective bell
- Operating temperature from -40 to 140°F
- Picatinny/Weaver mount
- Flip-out objective cup
- Shock-resistant
- Water-resistant
UPC: 029757002563 In the Box Night Optics Panther 640 Thermal Riflescope (30 Hz) - Quick Release Mount
- Flip-Up Objective Cover
- Hard Case
- 2 x CR-123 Batteries
- Limited 2-Year USA Warranty
- Limited 1-Year International Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Panther 640 Thermal Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics PTS-64050 Specs | Array Configuration | 640x480 uncooled VOx II microbolometer | | Thermal Sensitivity (NETD) | <50mK | | Pixel Size | 17 µm | | Spectral Response | 8-14 µm | | Magnification | Riflescope: 3.5x Optical, 1x, 2x, 4x Digital, 3.5-14x Total Zoom
Clip-on: 1x, Supports 1-12x Riflescopes | | Lens System | 50mm, f/1.2 | | Minimum Focus Distance | Riflescope: 33' (10 m)
Clip-On: 66' (20 m) | | Angular Field of View | 6.5 x 5° maximum | | Windage/Elevation Adjustment | Digital | | Eye Relief | 2" (50 mm) | | Refresh Rate | Default: 30 Hz
Optional 60 Hz | | Video Output | Default: NTSC
Optional: PAL | | Display | 800x600 AMOLED | | Battery / Runtime | 2 x CR-123 Batteries / 4 h max | | Weatherproofing | Water-resistant | | Impact Resistance | Shock-resistant | | Temperature Ranges | -40 to 140°F (-40 to 60°C) | | Dimensions | Riflescope: 11.6 x 3.6 x 3.1" (294 x 92 x 78 mm)
Clip-on: 9.8 x 3 x 2.75" (250 x 70 x 75 mm) | | Weight | Riflescope: 29.3 oz (830 g)
Clip-on: 21.2 oz (600 g) |
