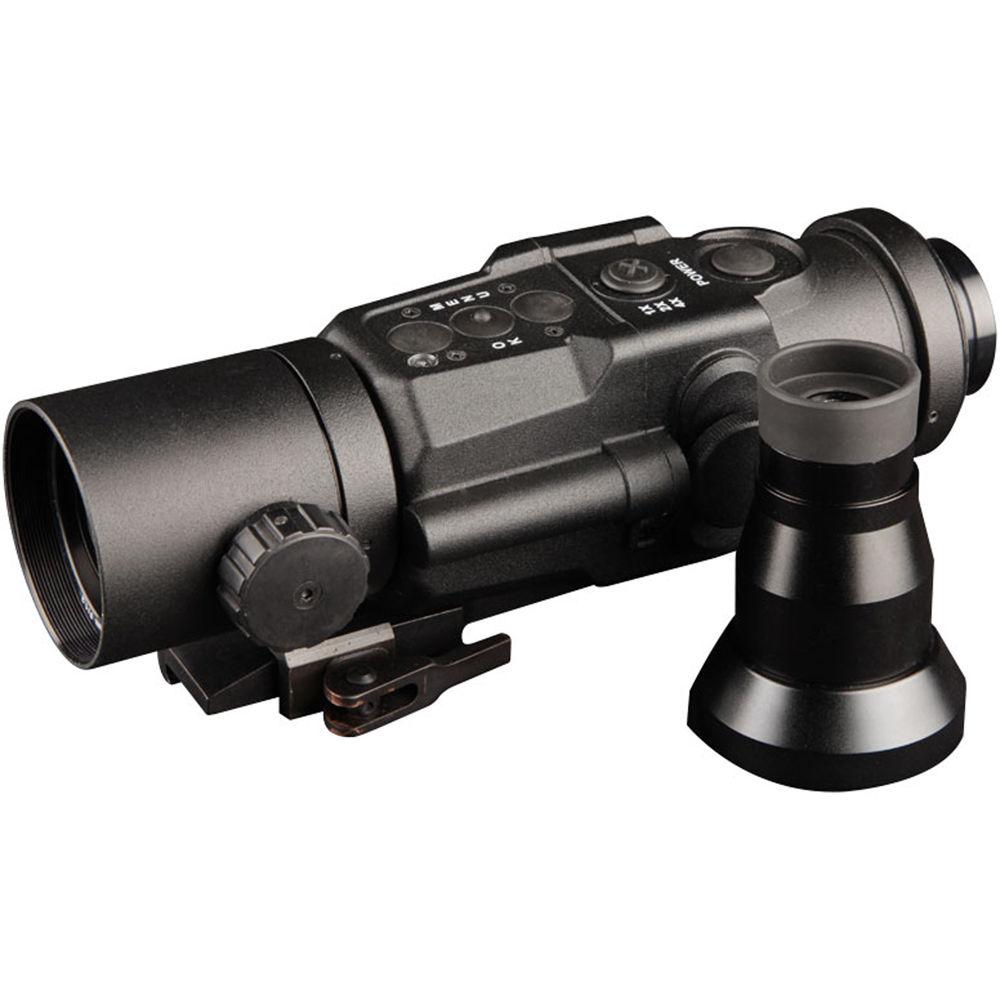

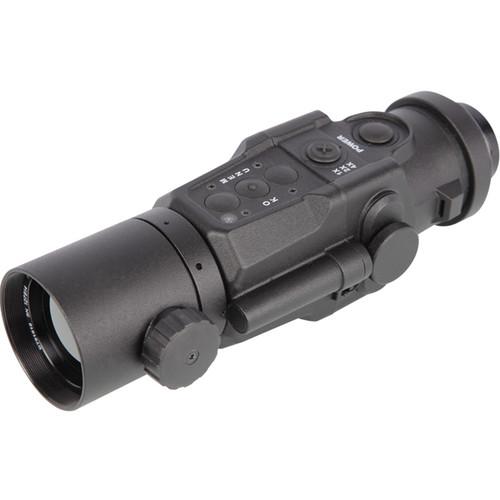

User Manual for Night Optics Panther C 640 Thermal Clip-On Dedicated Weapon Sight Click to enlarge the picture
Contents of the user manual for the Night Optics Panther C 640 Thermal
- Product category: Day/Night Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Day/Night Systems
 |
User manual for the Night Optics Panther C 640 Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|

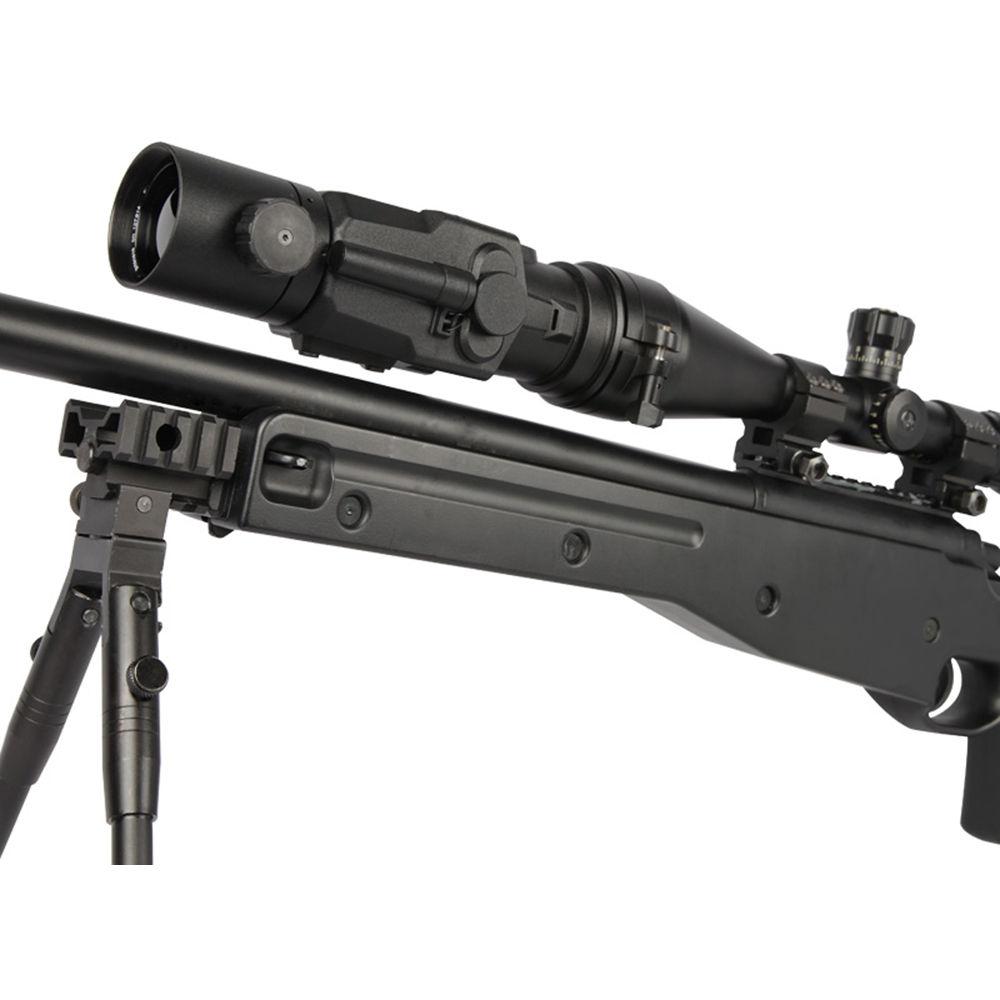

Product description Gain a tactical advantage with the versatile Panther C 640 Thermal Clip-On from Night Optics. With the touch of a button this compact thermal imager can be used either as a clip-on with your existing day riflescope or as a dedicated rifle sight using an optional eyecup. The sensor features an uncooled vanadium oxide II (VOx II) microbolometer with a resolution of 640x480 pixels and a brilliant 800x600 AMOLED display. While the thermal imaging sensor detects infrared radiation in the spectral range of 8-14µm, the electronics provide viewing capabilities through either its integrated display with a default refresh rate set to 30 Hz or to an external recorder or screen in a default NTSC video format. An optional 60 Hz refresh rate and a PAL video output format can be configured upon request at the factory. The 50mm f/1.2 germanium lens system offers a maximum field of view of 6.5 x 5° and a close focus distance of 33' in clip-on configuration and 66' in riflescope configuration. The magnification of the device will depend on its use. In the default clip-on mode, you will get 1x power and will use optical zoom of your day scope for close-ups on your targets. In the rifle sight mode, you will obtain 3.5x optical magnification and 1-4x digital zoom, giving you a total magnification range of 3.5-14x. Additionally, the electronics of this device offer a number of useful features: fast start-up, automatic brightness control, automatic shutter control, three polarity options, and seven color palettes. To help you with target acquisitions, this device also features digital mil-dot and crosshair reticles with five color options.
The water-resistant and impact-resistant housing features a lightweight and durable polymer construction and offers knurled adjusters and rings for a non-slip grip. To protect the germanium objective lens from dirt, scratches, and debris, it has a flip-out objective lens cup. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Thermal Imager and Optical Performance
-
- 640x480 Uncooled VOx II microbolometer
- 50mm, f/1.2 germanium lens system
- 1x clip-on configuration supports 1-12x riflescopes
- Dedicated weapon sight mode offers 3.5-14x total zoom
- Maximum field of view: 6.5 x 5°
- 66' minimum focus when used as a clip-on
- 33' minimum focus in optional riflescope mode
- Spectral range: 8-14µm
- Display & Video Performance
-
- 800x600 AMOLED display
- Default refresh rate: 30 Hz
- Optional 60 Hz refresh rate available
- Automatic ambient light adjustment
- Automatic and manual shutter calibration
- Adjustable display brightness
- Polarity options: Black Hot, White Hot, Sepia
- Default NTSC or optional PAL video-out
- Seven color palettes
- Reticle
-
- Mil-dot digital reticle
- Crosshair digital reticle
- Five reticle colors: red, green, yellow, white, and black
- Use and Handling
-
- Fast start-up is less than 3 seconds
- Uses two CR-123 batteries with runtime of 4 hours
- Digital windage and elevation adjustments
- Ergonomic menu buttons
- Construction Details
-
- Dual use: switchable from clip-on or dedicated weapon sight
- Lightweight, durable, and ergonomic polymer housing
- Compatible with Picatinny/Weaver rails
- Can be attached to riflescope objective bell
- Operating temperature from -40 to 140°F
- Flip-out objective cup
- Shock-resistant
- Water-resistant
UPC: 029757002587 In the Box Night Optics Panther C 640 Thermal Clip-On/Dedicated Weapon Sight (30 Hz) Riflescope Mount Flip-Up Objective Cover Video Cable Protective Case 2 x CR-123 Batteries Limited 2-Year USA Warranty Limited 1-Year International Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Panther C 640 Thermal Clip-On Dedicated Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics C 640 Specs | Array Configuration | 640x480 uncooled VOx II microbolometer | | Thermal Sensitivity (NETD) | <50mK | | Pixel Size | 17 µm | | Spectral Response | 8-14 µm | | Magnification | Clip-on: 1x, supports 1-12x Riflescopes
Dedicated Weapon Sight: 3.5x Optical, 1x, 2x, 4x Digital, 3.5-14x Total Zoom | | Lens System | 50mm, f/1.2 | | Minimum Focus Distance | Clip-On mode: 66' (20 m)
Sight mode: 33' (10 m) | | Angular Field of View | 6.5 x 5° maxixmum | | Windage/Elevation Adjustment | Digital | | Eye Relief | 2" (50 mm) | | Refresh Rate | Default: 30 Hz
Optional 60 Hz | | Video Output | Default: NTSC
Optional: PAL | | Display | 800x600 AMOLED | | Battery / Runtime | 2 x CR-123 Batteries / 4 h max | | Weatherproofing | Water-resistant | | Impact Resistance | Shock-resistant | | Temperature Ranges | -40 to 140°F (-40 to 60°C) | | Dimensions | 9.8 x 3 x 2.75" (250 x 75 x 70 mm)
Riflescope with optional eyepiece: 11.6 x 3.6 x 3.1" (294 x 92 x 78 mm) | | Weight | Clip-on: 21.2 oz (600 g)
Riflescope, with optional eyepiece: 29.3 oz (830 g) |
