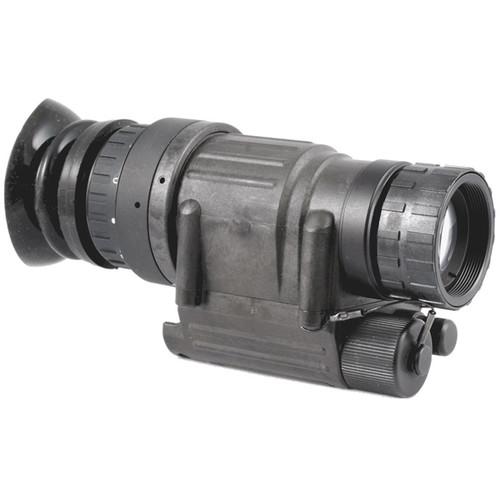

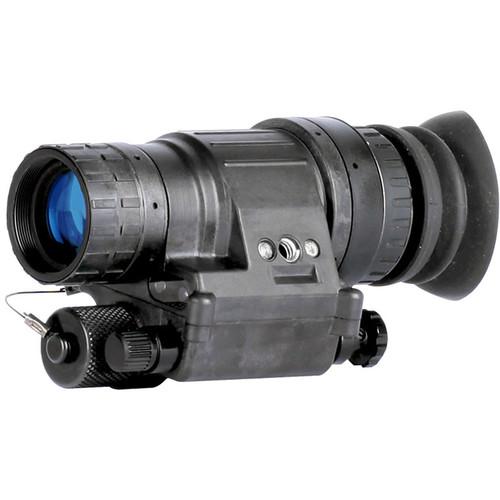

User Manual for Night Optics Sentry 14 1x 2nd Generation White Phosphor Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Night Optics Sentry 14 1x 2nd
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
 |
User manual for the Night Optics Sentry 14 1x 2nd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description Ideal for security surveillance, search and rescue, and tactical applications, the Sentry 14 1x 2nd Generation White Phosphor Night Vision Monocular from Night Optics is equally optimized for handheld, weapon-mounted, or headgear-mounted use. Its 2nd generation intensifier tube offers resolution of 41-64 lp/mm and features white phosphor technology for operators who prefer black and white images to green ones. You can adjust image brightness or detail with a manual gain control. To maximize image brightness in total darkness, the monocular has a built-in IR illuminator to cast extra infrared light on your targets. The device also offers a few convenient functions such as activation status indicator and automatic off function when you turn it up or take of off your headgear. Other convenient features are a diopter adjustment and low-battery and IR-on indicators. The 1x lens system, upgradable to higher magnifications with optional lenses, gives a wide 40° field of view and an ultra-short minimal focusing distance of 10".
The housing is made of lightweight and impact-resistant polymer and offers fogproof and waterproof performance, with a submersion rating of 66'. To provide extra protection and stability for optics, the lens's housing is made of aluminum. To prevent spill-over of light from the intensifier tube, offering a comfortable cushion between the eyepiece and your eye, the eyepiece has a wide rubber eye cup. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Intensifier Tube & IR Illuminator
-
- 2nd generation
- Manual gain control helps to adjust brightness or detail
- Automatic brightness control reduces voltage to the microchannel plate
- Bright source protection reduces voltage to the photocathode
- White phosphor produced black and white images
- Built-in IR illuminator casts extra infrared light on targets and improves image brightness
- Momentary or constant-on infrared illumination modes
- Optical Performance
-
- 1x magnification
- 40° angular field of view
- 26mm, f/1.2 lens system
- 10" minimum focus distance
- +2 to -6 dioptric adjustment
- Use and Handling
-
- Low-battery and IR-on indicators
- Auto-off function when unmounted or in upright position or taken off headgear

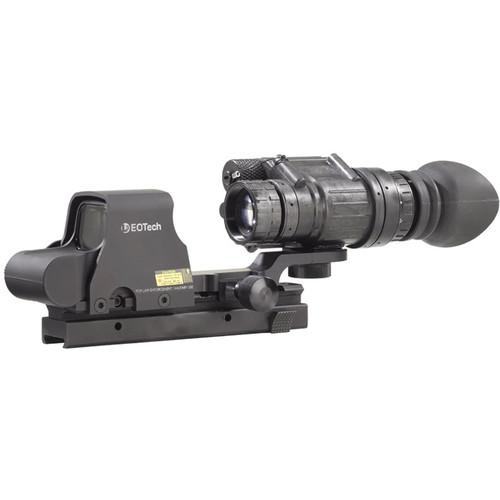

- Mountable to rifle or head mount with optional adapters
- Camera is adaptable to the eyepiece with optional mount for digiscoping
- Construction Details
-
- Impact-resistant polymer body
- Knurled adjusters
- Wide rubber eye cup
- Waterproof to 66'
In the Box Night Optics Sentry 14 1x 2nd Generation White Phosphor Night Vision Monocular Hard Case Sacrificial Filter Demist Shield Lens Tissue AA Battery Limited 2-Year USA Warranty Limited 1-Year International Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Sentry 14 1x 2nd Generation White Phosphor Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NM-P14-2BW Specs | Intensifier Tube | 2nd generation
41-64 lp/mm
White phosphor | | Magnification | 1x | | Angle/Field of View | 40° | | Linear Field of View | 2093.1' @ 1000 yd (698 @ 1000 m) | | Lens System | 26mm, f/1.2 | | Eye Relief | 27 mm | | Minimum Focus Distance | 10" (25.4 cm) | | Dioptric Correction | +2 to -6 | | Infrared Illuminator | Built-in | | Battery / Runtime | 1 x AA battery / 40 h max | | Weatherproofing | Waterproof to 66' (20.1 m) | | Temperature Ranges | -4 to 122°F (-20 to 50°C) | | Dimensions | 4.5 x 2.25 x 2.0" (114.0 x 57.0 x 51.0 mm) | | Weight | 13.8 oz (391.2 g) |
