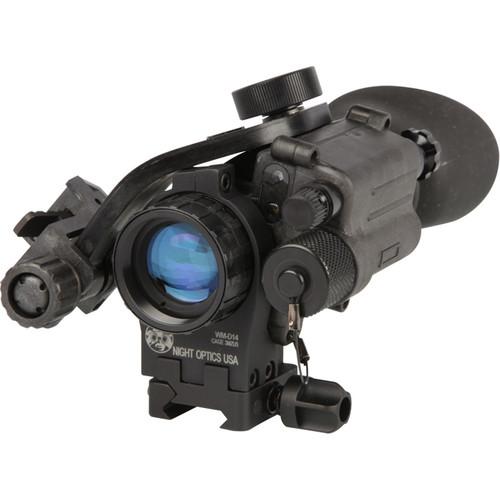

Product description Ideal for security surveillance, search-and-rescue, and tactical applications, the Sentry 14 1x 3rd Generation Night Vision Monocular and Head Mount Kit from Night Optics is equally optimized for handheld, weapon-mounted, or headgear-mounted use. It features a 3rd generation filmless autogated intensifier tube with resolution of 64-72 lp/mm and Automatic Brightness Control. It will enable you to see brighter and clearer images than 1st and 2nd generation devices with similar optics. While the filmless microchannel plate improves signal-to-noise ratio and efficiency of the intensifier, the autogating greatly increases sensitivity in low light and varying lighting conditions, protects against bright light burnout, and extends life. You can adjust image brightness or detail with a manual gain control. To maximize image brightness in total darkness, the monocular carries a built-in IR illuminator that casts extra infrared light on your targets. To add convenience and stealth for tactical applications, the device offers activation status indicator and automatic off function when you turn it up or take of off your headgear. The 1x lens system, upgradable to higher magnifications with optional lenses, offers a wide 40° field of view and an ultra-short minimal focusing distance of 10".
The housing is made of a lightweight, impact-resistant polymer that offers fogproof and waterproof performance, with a submersion rating of 66'. To provide extra protection and stability for optics, the lens's housing is made of aluminum. To prevent spill-over of light from the intensifier tube and offer comfortable cushion between your eye's orbit and the eyepiece, the eyepiece has a wide rubber eyecup.

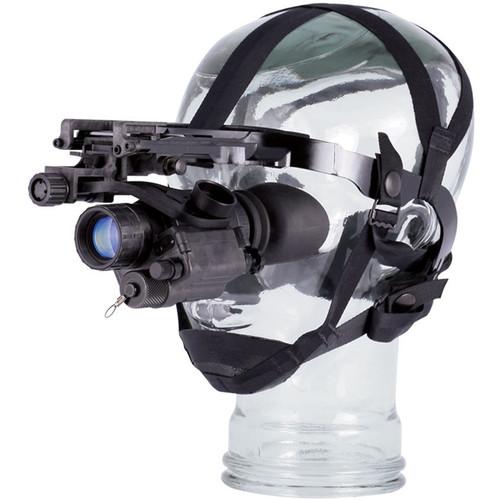

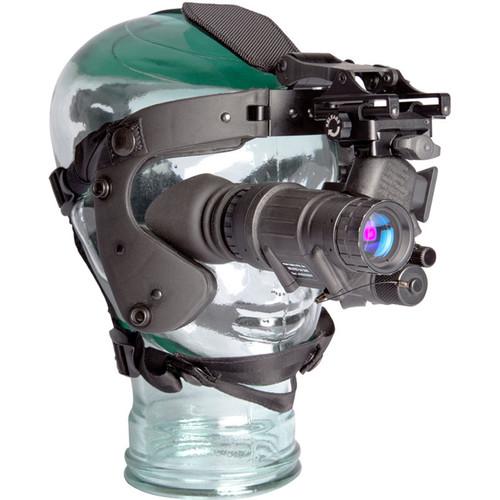

The included head mount is fully adjustable and has hook and loop fasteners on its sides and the top, chin support, and extra pads for eye brows. It features a lockable gear and provides firm and stable attachment for your night vision device whether you are moving or standing still. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Night Vision Features
-
- 3rd generation
- 64-72 lp/mm resolution
- Filmless MCP offers reduced noise and improves SNR
- Autogating increases sensitivity, protects from bright light, and extends tube life
- IR illuminator casts extra infrared light on targets for visibility in total darkness
- Momentary or constant-on infrared illumination modes
- Optical Performance
-
- 1x magnification
- 40° angular field of view
- 26mm, f/1.2 lens system
- 10" minimum focus distance
- 27 mm eye relief
- +2 to -6 dioptric adjustment
- Use and Handling
-
- Automatic Brightness Control
- Bright Light cut off
- Manual gain control allow changing brightness or detail
- Low-battery and IR-on indicators

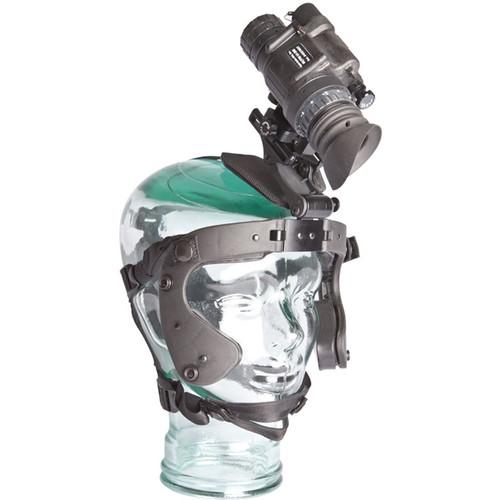

- Auto off function when unmounted or in upright position
- Mountable to rifle or head mount with optional adapters
- Construction Details
-
- Impact-resistant polymer body
- Knurled adjusters
- Fully adjustable head mount
- Wide rubber eyecup
- Waterproof to 66'
In the Box Night Optics Sentry 14 1x 3rd Generation Night Vision Monocular & Head Mount Kit (Filmless, Autogated) - Mil Spec Headgear with Chin Support xeaurxesdcuxzuewyerxuaazsvyfztubyucc
- Arm Adapter for Mil Spec Headgear and Helmet Mount
- Hard Case
- Sacrificial Filter
- Demist Shield
- AA Battery
- Limited 2-Year USA Warranty
- Limited 1-Year International Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Sentry 14 1x 3rd Generation Night Vision Monocular & Head Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NG-P14-F3G Specs | Intensifier Tube | 3rd generation
64-72 lp/mm
Filmless
Autogated | | Magnification | 1x | | Angle/Field of View | 40° | | Linear Field of View | 2094' @ 1000 yd (698 @ 1000 m) | | Lens System | 26mm, f/1.2 | | Minimum Focus Distance | 10" (25 cm) | | Eye Relief | 27 mm | | Dioptric Correction | +2 to -6 | | Infrared Illuminator | Built-in | | Battery / Runtime | 1 x AA battery / 40 h | | Weatherproofing | Waterproof to 66' (20.1 m) | | Temperature Ranges | -4 to 122°F (-20 to 50°C) | | Dimensions | Monocular: 4.5 x 2.25 x 2" (114 x 57 x 51 mm)
Head Mount: 11.25 x 8" (286 x 203 mm) | | Weight | Monocular: 13.8 oz (391 g)
Head Mount: 6.2 oz (176 g) |
