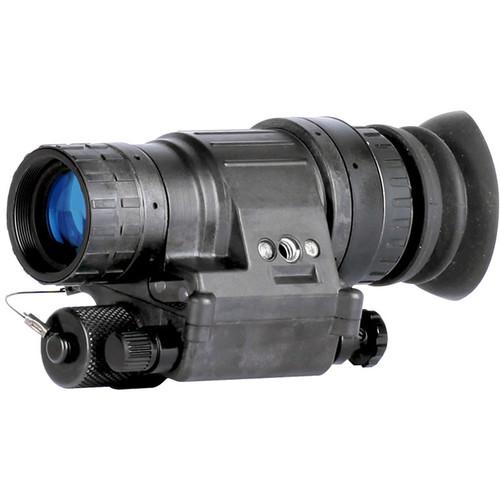

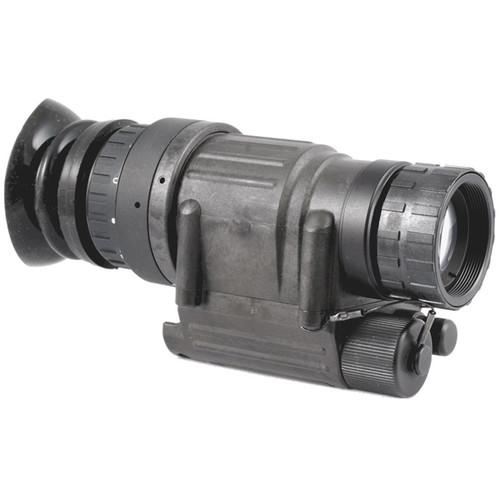

User Manual for Night Optics Sentry 14 1x 3rd Generation White Phosphor Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Night Optics Sentry 14 1x 3rd
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
 |
User manual for the Night Optics Sentry 14 1x 3rd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description Ideal for security surveillance, search and rescue, and tactical applications, the Sentry 14 1x 3rd Generation White Phosphor Night Vision Monocular from Night Optics is equally optimized for handheld, weapon-mounted, or headgear-mounted use. It features a 3rd generation filmless autogated image intensifier tube with resolution of 64-72 lp/mm and automatic brightness control. It will enable you to see brighter and clearer images than 1st and 2nd generation devices with similar optics. While the filmless microchannel plate improves signal-to-noise ratio and efficiency of the intensifier, the autogating greatly increases sensitivity in low-light and varying lighting conditions, protects against bright light burnout, and helps extend life. The tube is also enhanced with white phosphor technology for operators who prefer black and white images to green ones. You can adjust image brightness or detail with a manual gain control. To maximize image brightness in total darkness, the monocular carries a built-in IR illuminator that casts extra infrared light on your targets. To add convenience and stealth for tactical applications, the device offers activation status indicator and automatic off function when you turn it up or take of off your headgear. The 1x lens system, upgradable to higher magnifications with optional lenses, offers a wide 40° field of view and an ultra-short minimal focusing distance of 10".
The housing is made of lightweight and impact-resistant polymer and offers fogproof and waterproof performance, with a submersion rating of 66'. To provide extra protection and stability for optics, the lens's housing is made of aluminum. To prevent spill-over of light from the intensifier tube, offering a comfortable cushion between your eye and the eyepiece, the eyepiece has a wide rubber eye cup. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Night Vision Features
-
- 3rd generation
- 64-72 lp/mm resolution
- Filmless MCP offers reduces noise and improves SNR
- Autogating increases sensitivity, protects from bright light, and helps extend tube life
- White phosphor technology generates black and white images instead of green ones
- IR illuminator casts extra infrared light on targets for visibility in total darkness
- Optical Performance
-
- 1x magnification
- 40° angular field of view
- 26mm, f/1.2 lens system
- 10" minimum focus distance
- Camera adaptable for digiscoping
- Use and Handling
-
- Automatic brightness control
- Bright source protection
- Manual gain control
- Low-battery and IR-on indicators
- Momentary or constant-on infrared illumination modes
- Auto-off function when unmounted or in upright position

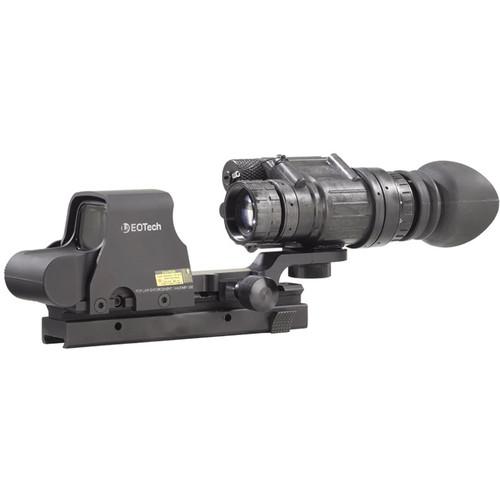

- Mountable to rifle or head mount with optional adapters
- 27mm eye relief
- +2 to -6 dioptric adjustment
- Construction Details
-
- Impact-resistant polymer body
- Knurled adjusters
- Wide rubber eye cup
- Waterproof to 66'
In the Box Night Optics Sentry 14 1x 3rd Generation White Phosphor Night Vision Monocular (Filmless, Autogated) Hard Case Sacrificial Filter Lens Tissue Demist Shield AA Battery Limited 2-Year USA Warranty Limited 1-Year International Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Sentry 14 1x 3rd Generation White Phosphor Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NM-P14F3BW Specs | Intensifier Tube | 3rd generation
64-72 lp/mm
Filmless
Autogated
White phosphor | | Magnification | 1x | | Angle/Field of View | 40° | | Linear Field of View | 2093.1' @ 1000 yd (698 @ 1000 m) | | Lens System | 26mm, f/1.2 | | Minimum Focus Distance | 10" (25 cm) | | Eye Relief | 27 mm | | Dioptric Correction | +2 to -6 | | Infrared Illuminator | Built-in | | Battery / Runtime | 1 x AA battery / 40 h | | Weatherproofing | Waterproof to 66' (20.1 m) | | Temperature Ranges | -4 to 122°F (-20 to 50°C) | | Dimensions | 4.5 x 2.25 x 2.0" (114.0 x 57.0 x 51.0 mm) | | Weight | 13.8 oz (391.2 g) |
