User Manual for Night Optics Sentry 2x Digital Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Night Optics Sentry 2x Digital Night
- Product category: NV Monoculars & Multi-Systems Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics NV Monoculars & Multi-Systems
 |
User manual for the Night Optics Sentry 2x Digital Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|

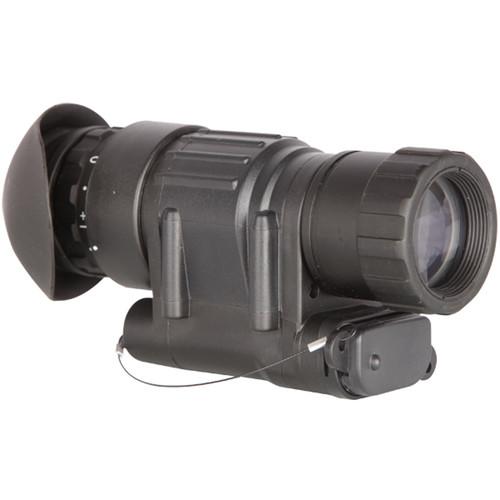

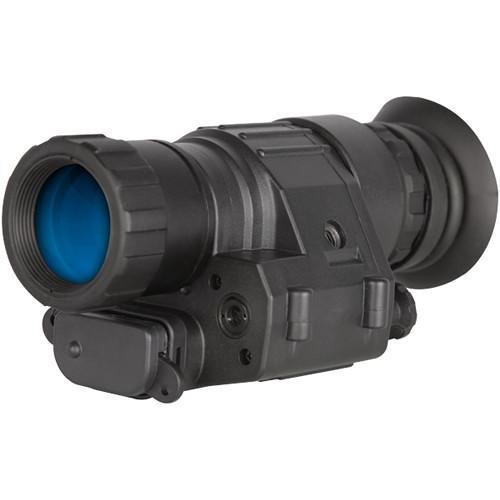

Product description Explore the night using the compact and water-resistant Sentry 2x Digital Night Vision Monocular from Night Optics. With a digital ¼" CMOS sensor and a 330 x 224 LED display, you obtain detailed color images during both day and night. To enable operation in complete darkness, the device also features an 850nm infrared illuminator with variable output. Compared to NVDs with intensifying tubes, the digital night vision sensor has nearly unlimited lifetime and unparalleled resistance to bright light. You don't have to worry about accidentally exposing it to daylight and burning it. With this device you get a notable 2x close-up, a 6.4° angular field of view, and a shorter-than-average minimum focus distance of 2.25'. The eyepiece has a diopter adjustment for fine-tuning image sharpness and a wide rubber eyecup to allow you to get a comfortable fit between the eyepiece and the orbit of your eye.
The PVS-14-inspired housing design allows you to use it in similar fashion as traditional PVS-14 night vision devices. The included mounts allow you to mount on headgear or a weapon. The housing also ensures water-resistant performance and flawless operation in extreme temperatures. Among many included items are two AA batteries and a storage pouch. - Optical Performance
-
- 2x optical magnification
- 28mm objective lens
- 6.4° field of view
- Sensor and Display
-
- Digital 1/4" CMOS sensor
- Horizontal resolution: 420 lines
- Color LED display: 330 x 224 pixels
- Day or night digital color images
- Resistant against exposure to daylight
- Use and Handling
-
- PVS-14 style housing design
- Built-in 852nm infrared illumination with variable output
- Wide rubber eye cup
- Weapon mount bracket
- Headgear mount
- Water-resistant

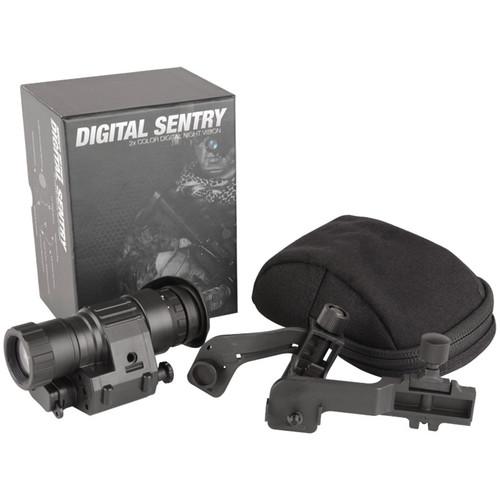

UPC: 029757001832 In the Box Night Optics Sentry 2x Digital Night Vision Monocular - Tactical Storage Pouch
- Rubber Eyecup
- Head Mount Bracket
- Weapon Mount
- 2 x AA Batteries
- Night Optics Decal
- Hook & Loop Morale Patch
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Sentry 2x Digital Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics DN-142BK Specs | Sensor | 1/4" CMOS | | Magnification | 2x | | Angular Field of View | 6.4° | | Linear Field of View | 336' @ 1000 yd / 112.1 m @ 1000 m | | Lens System | 28mm | | Minimum Focus Distance | 2.25' (0.69 m) | | Eye Relief | 14 mm | | Dioptric Correction | +5 to -5 | | Infrared Illuminator | 850 nm | | Battery / Runtime | 2 x AA batteries
Without IR: 3 h
With IR: 2 hr | | Weatherproofing | Water-resistant | | Temperature Ranges | -15 to 155°F (-26.1 to 68.3°C) | | Dimensions | 6.75 x 2.25 x 2.125" (171.5 x 57 x 54 mm) | | Weight | 10.9 oz (309 g) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 6.9 x 5.2 x 4.0" |
