User Manual for Night Optics Superlite 730 3.7x 2nd Generation White Phosphor Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Night Optics Superlite 730 3.7x 2nd
- Product category: Night Vision Riflescopes Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Night Vision Riflescopes
 |
User manual for the Night Optics Superlite 730 3.7x 2nd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|

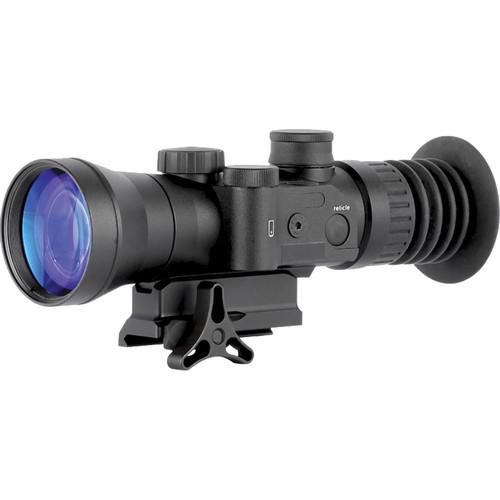

Product description Designed for tactical applications, the Superlite 730 3.7x 2nd Generation White Phosphor Night Vision Riflescope from Night Optics is optimized for weapon-mounted use. Its 2nd generation autogated intensifier tube offers resolution of 41-60 lp/mm and features white phosphor technology for operators who prefer black and white images to green ones. The autogating greatly improves sensitivity in low light and varying lighting conditions, protects against bright light burnout, and extends life. The optical system features high contrast, multi-coated lenses that deliver improved detail, resolution, and image clarity and brightness. The 85mm f/1.5 lens offers an adequate aperture for collecting light at night and enhancing visibility. It also provides a wide 8.5° field of view and a minimal focus distance of 33". To enable operation in total darkness by providing additional illumination for your targets, this night vision device can be used with an optional infrared illuminator. To help you get a precision shot, this night vision optic is equipped with a red-green Mil-Dot reticle with adjustable brightness.
The housing is made of lightweight and impact-resistant polymer and offers weather-resistant performance. Using the included quick-release mount, this device can be easily mounted on Picatinny or Weaver-style rails. To prevent spillover of light from the intensifier tube and to offer a comfortable cushion between your eye's orbit and the eyepiece, the eyepiece has a wide rubber eyecup. Also included are a carrying case and one CR-123 battery. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARbtyvfzfqucrztazdsyfz), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Night Vision Features
-
- 2nd generation
- 41-60 lp/mm resolution
- Autogating increases sensitivity, protects from bright light, and extends tube life
- White phosphor technology generates black and white images instead of green ones
- Optical Performance
-
- Notable 3.7x magnification
- Multi-coated optics improve transmission of light
- 8.5° angular field of view
- 85mm, f/1.6 lens system
- 33' minimum focus distance
- Reticle
-
- Red-green Mil-Dot reticle
- Variable brightness
- Use and Handling
-
- 1/4 MOA impact point correction
- +3 to -3 dioptric adjustment
- Construction Details
-
- Impact-resistant housing
- Knurled adjusters
- Quick-release Picatinny/Weaver mount
- Wide rubber eyecup
- Weather-resistant

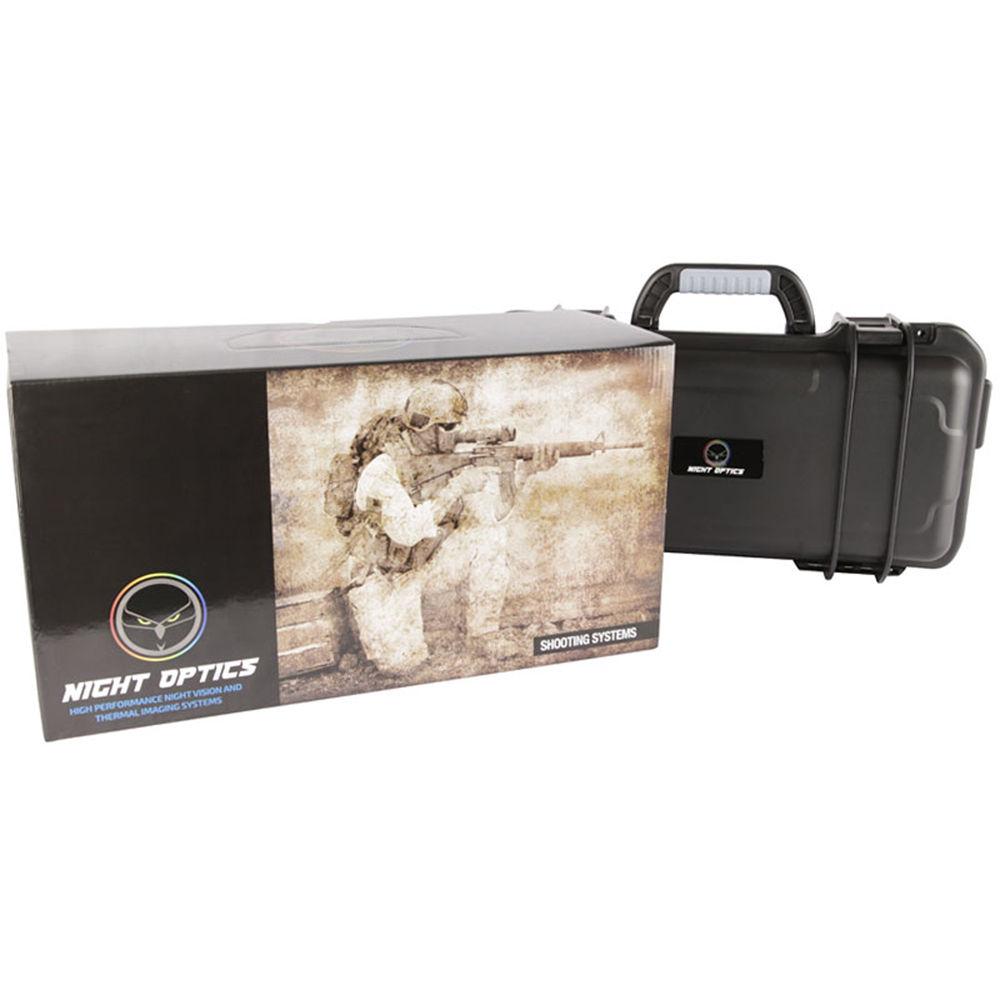

UPC: 029757002556 In the Box Night Optics Superlite 730 3.7x 2nd Generation White Phosphor Night Vision Riflescope (Autogated, Red-Green Mil-Dot Reticle) - Hard Case
- CR-123 Battery
- Limited 2-Year USA Warranty
- Limited 1-Year International Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Superlite 730 3.7x 2nd Generation White Phosphor Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics NS-730-2BW Specs | Intensifier Tube | 2nd generation | | Resolution | 41-60 lp/mm | | Magnification | 3.7x | | Field of View | 8.5° | | Lens System | 85mm, f/1.6 | | Minimum Focus Distance | 33' (10 m) | | Dioptric Correction | ±3 | | Impact Point Correction | 1/4 MOA | | Infrared Illuminator | Optional | | Power Supply | 1 x CR-123 (3V) / 60 h | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 122°F (-40 to 50°C) | | Waterproofing | Weather-resistant | | Dimensions | 6.6 x 1.7 x 1.7" (167.6 x 43.2 x 43.2 mm) | | Weight | 19.8 oz (561 g) |
