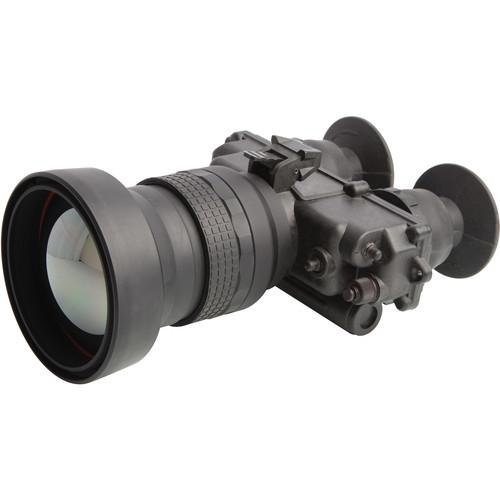

User Manual for Night Optics Vulkan 640 Thermal Biocular with 75mm Germanium Objective Click to enlarge the picture
Contents of the user manual for the Night Optics Vulkan 640 Thermal Biocular
- Product category: Thermal Imagers Night Optics
- Brand: Night Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Optics Thermal Imagers
|
User manual for the Night Optics Vulkan 640 Thermal Biocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Optics product will considerably shorten its lifespan!
|
Product description The Vulkan 640 Thermal Biocular with 75mm Germanium Objective from Night Optics gives you the ability to observe heat sources of various origins during day or night. This long-wave infrared handheld thermal imager features a 640X480 VOx sensor with spectral range of 7-14 μm and sensitivity of 50mK. The optical system consist of 75mm focal length germanium lens system and offers 1x optical magnification, up to 4x digital zoom, and 9-12º angular field of view. The 800x600 dual OLED display has a refresh rate of 30 Hz and an output with different polarity modes: white hot, black hot, and sepia. A video-out port enables the use of optional external recording in PAL or NTSC format. Thermal imaging is extremely difficult to detect with other devices because they are passive and emit no energy, unlike laser targeting or near-infrared illumination used with NVDs.
Additionally, the Vulkan thermal biocular features water resistant housing, wide rim closed type eyecups for additional light insulation, a diopter and interpupillary adjustment. Also included with the main unit, are a soft case, a lanyard, a shoulder strap, a lens cleaning pad, a video cable, an external power cable, and three CR-123 batteries. - Imaging Performance
-
- Resolution: 640X480
- Spectral Range: 7-14 μm
- Sensitivity: <50mk
- Sensor Type: VOx
- Lens: 75mm germanium
- Optical Performance
-
- Magnification: 1x optical, 2x or 4x digital
- Lens focal length: 75mm
- Angular Field of View: 9-12º
- Minimum focus: 10'
- System Features
-
- 800x600 dual OLED High Definition (HD) display
- Selectable NTSC or PAL video-out
- Polarity options: black hot, white hot and sepia
- Refresh rate: 30Hz
- Use and Handling
-
- Center focus
- Diopter Adjustment: +2 to -6
- Eye Relief: 17 mm
- Construction
-
- Water resistant
- Rubber eyecups
- Aluminum lens housing
In the Box Night Optics Vulkan 640 Thermal Biocular with 75mm Germanium Objective - Soft Case
- Lanyard
- Lens Cleaning Pad
- Shoulder Strap
- Video Cable
- External Power Cable
- 3 x CR-123 (3V) Batteries
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Optics Vulkan 640 Thermal Biocular with 75mm Germanium Objective in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Optics TB-640-F75 Specs | Array Configuration | 640X480 | | Sensor | VOx | | Sensitivity | <50mK | | Spectral Response | 7-14 μm | | Magnification | Optical: 1x
Digital: 2x, 4x | | Field of View | 9-12º | | Lens System | 75mm focal length germanium lens | | Diopter Adjustment | +2 to -6 | | Eye Relief | 17 mm | | Minimum Focus Distance | 10' (3 m) | | Video Output | Pal, NTSC | | Refresh Rate | 30 Hz | | Display | 800x600, dual OLED | | Power Source | 3 x CR-123 (3V) / 4 hr max | | Weatherproofing | Water resistant | | Dimensions | 9.25 x 6 x 4" (235 x 152 x 101 mm) | | Weight | 33 oz (940 g) |
