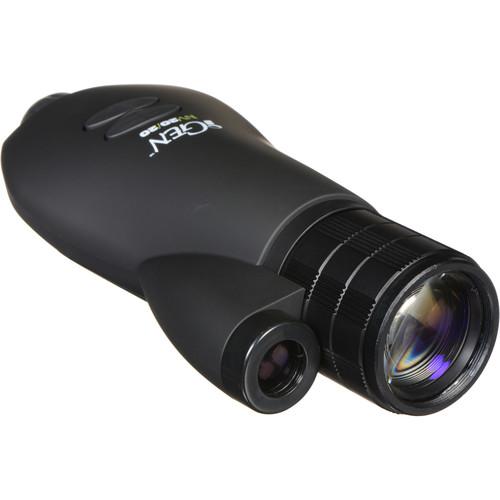

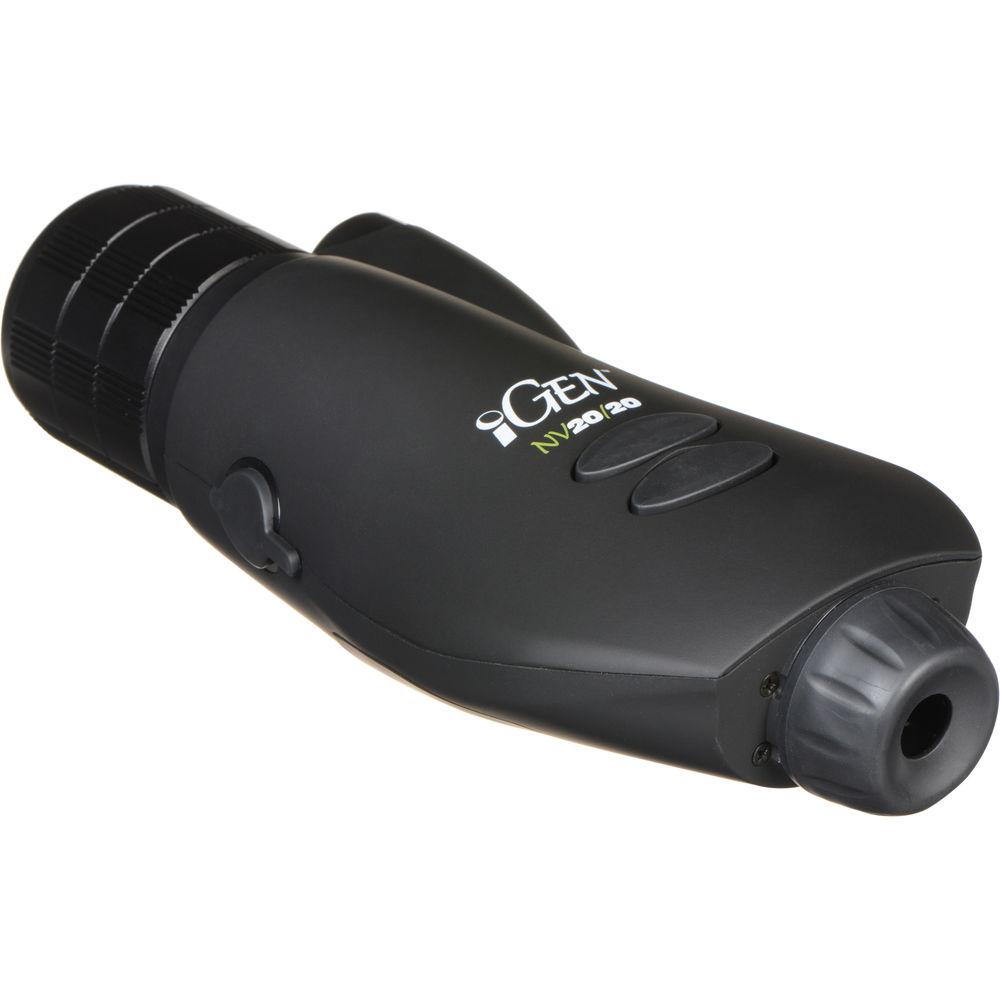

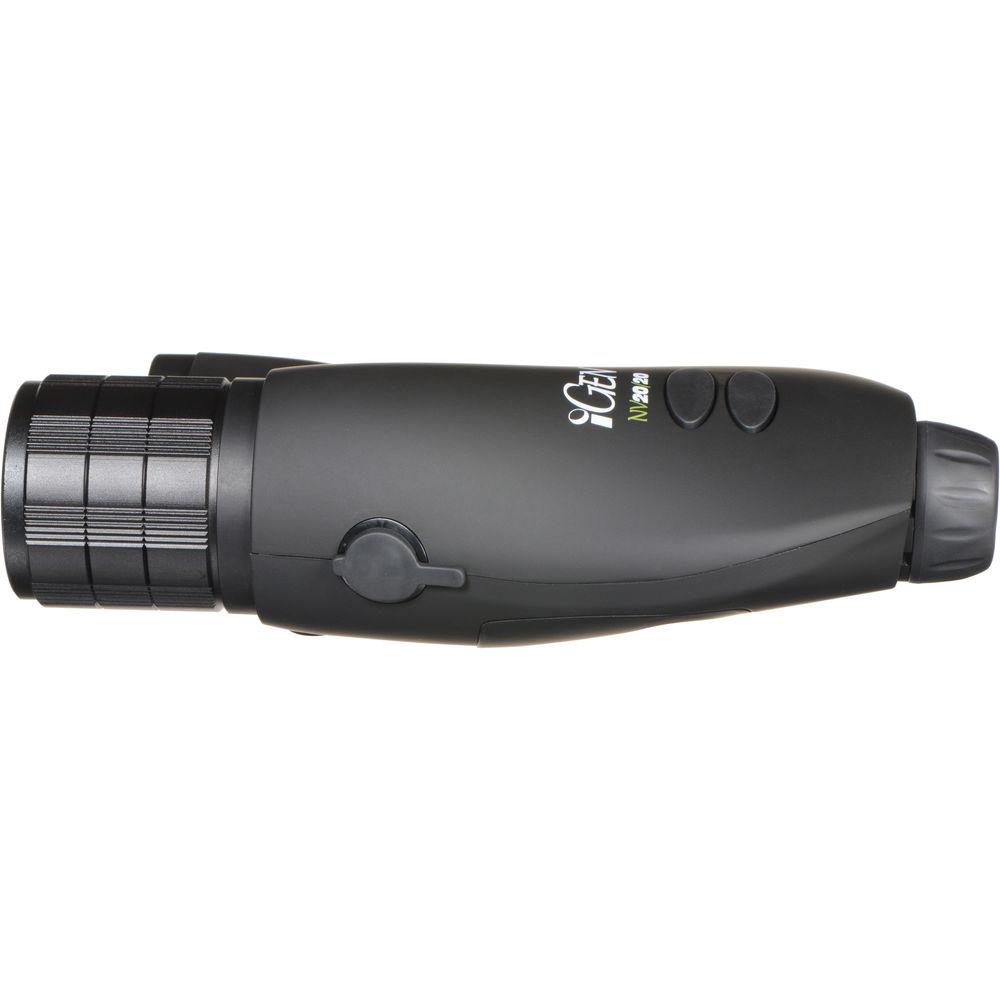

User Manual for Night Owl Optics 2.6x41 iGEN NV20 20 Digital Night Vision Monocular with Image Capture Click to enlarge the picture
Contents of the user manual for the Night Owl Optics 2.6x41 iGEN NV20
- Product category: NV Monoculars & Multi-Systems Night Owl Optics
- Brand: Night Owl Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Owl Optics NV Monoculars & Multi-Systems
 |
User manual for the Night Owl Optics 2.6x41 iGEN NV20 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Owl Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Owl Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Owl Optics product will considerably shorten its lifespan!
|
Product description Night Owl Optics combines a versatile optic with a digital NV system and image-capture capabilities to create their 2.6x41 iGEN NV20/20 Digital Night Vision Monocular. This device features a 30 lp/mm resolution with the ability to save images to an on-board card slot that accepts SD cards up to 32GB, or to an external device via its RCA video-out port. In low-light conditions, the digital intensifier system boosts available light for enhanced images, and under extreme darkness its built-in IR illuminator can provide a light source for the intensifier allowing it to pierce the darkest night outdoors or deepest corners inside.The fully selectable system features a single multi-directional navigation button that gives you access to the intuitive menu-driven programming functions. You have control over the auto-off time interval, gain, display brightness, exposure, image and text color, with the ability to quickly reset the entire system to factory default settings. The iGen has a 1/4"-20 tripod mount for long observation sessions or when the exposure is turned up, and it runs on four user-supplied AA batteries. - Optical Performance
-
- 2.6x magnification
- 41mm objective lens
- 16" close focus distance
- 12° angle of view
- 630' field of view at 1000 yd
- Night Vision
-
- Digital night vision system
- Selectable gain for increased light amplification
- 30 lp/mm resolution
- Day & night operation
- Integrated IR illuminator for extreme low-light conditions
- IR Intelligence: Automatic adjustment through 3 levels optimizes output based on ambient light
- Variable exposure rate from 2 to 30 fps
- Image Capture
-
- Selectable, NTSC or Pal
- Captures in black & white
- Images saved to SD cards up to 32GB. 2GB card included
- Selectable JPEG or TIFF image formats
- Record images to external source from RCA output port
- Variable frame rate from 2 to 30 fps
- Use and Handling
-
- Single multi-directional button for easy navigation, selection and customization
- Front objective focus ring to focus image on display
- Rear dioptric adjustment focuses eyepiece on display
- Programmable auto-off function from 1 to 45 minutes
- Selectable display brightness
- Image Display Color: White, red, green, blue
- Selectable Text Color: Black/white, red, green, amber
- 1/4"-20 tripod mount
- Runs on four user-supplied AA batteries
UPC: 635328171110 In the Box Night Owl Optics 2.6x41 iGEN NV20/20 Digital Night Vision Monocular with Image Capture 2 GB SD Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Owl Optics 2.6x41 iGEN NV20 20 Digital Night Vision Monocular with Image Capture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Owl Optics NOIGM3X-IC Specs | Intensifier Tube | None. Digital night vision system | | Resolution | 30 lp/mm, edge-to-edge | | Magnification | 2.6x | | Angle of View | 12° | | Field of View | 630' @ 1000 yd / 210 m @ 1000 m | | Objective Lens | 41 mm | | Minimum Focus Distance | 16" / 41 cm | | Eye Relief | Not specified by manufacturer | | Infrared Illuminator | Built-in, 12° beam angle | | Battery | 4 x AA | | Runtime | 4.5 hr, continuous use
2.3 hr, continuous use with IR on High | | Memory | SD card, up to 32 GB | | Weatherproofing | Not specified by manufacturer | | Dimensions | 8.8 x 3.9 x 2.5" / 22.4 x 9.9 x 6.4 cm | | Weight | 21.0 oz / 595.3 g | | | | Package Weight | 1.705 lb | | Box Dimensions (LxWxH) | 9.85 x 4.85 x 3.15" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
