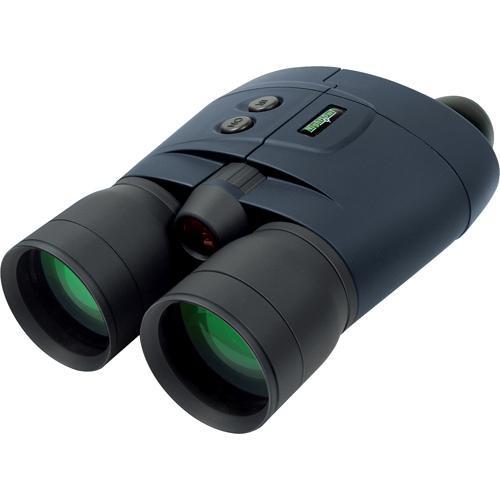

User Manual for Night Owl Optics 5x50 NOB5X 1st Generation Night Vision Binocular Click to enlarge the picture
Contents of the user manual for the Night Owl Optics 5x50 NOB5X 1st
- Product category: Night Vision Binoculars Night Owl Optics
- Brand: Night Owl Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Owl Optics Night Vision Binoculars
|
User manual for the Night Owl Optics 5x50 NOB5X 1st contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Owl Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Owl Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Owl Optics product will considerably shorten its lifespan!
|
Product description Night Owl Optics's NOB5X 5x50 1st Generation Night Vision Binocular features two 1st generation intensifier tubes to deliver true binocular vision with 3-dimensional perception of depth. To enable observation in total darkness, or extremely low light, the binocular also carries a built-in infrared illuminator. To bump up light gathering capacity and image brightness even more, the binocular features 50mm objectives. The optical system combines all-glass lenses, a notable 5x magnification, and a wide 15° angular field of view. For convenience and comfort, the device provides an adjustable interpupillary distance, center focusing, and diopter adjustment.
The water-resistant housing is durable and offers a rubberized covering for a non-slip grip. The menu buttons are conveniently located on top, within easy reach of your fingertips. - Intensifier Tube and IR Illuminator
-
- Two 1st generation tubes
- 35 lp/mm resolution
- 400 - 900nm spectral sensitivity
- Integrated infrared illuminator
- Optical Performance
-
- Binocular vision
- 5x magnification
- 50mm objectives
- All-glass optics
- 15º angular field of view
- Interpupillary adjustment
- Adjustable diopter: +4 to -4
- Manual center focusing
- Minimum focusing distance: 6.6'
- Construction Details
-
- Ergonomic polymer housing
- Rubberized covering
- Impact-resistant molded thermoplastic lens housings
- Water resistant
- Rubberized eyecups
UPC: 635328171240 In the Box Night Owl Optics 5x50 NOB5X 1st Generation Night Vision Binocular (Blue-Black) - 2 x Objective Lens Covers
- Carry Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Owl Optics 5x50 NOB5X 1st Generation Night Vision Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Owl Optics NOB5X Specs | Intensifier Tube | 1st generation tube
Resolution: 35 lp/mm
Spectral Range: 400-900 nm | | Objective Diameter | 50mm | | Magnification | 5x | | Linear Field of View | 785' at 1000 yd / 261.8 m at 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Diopter Adjustment | +4 to -4 | | Interpupillary Distance | 2.27-2.95" / 57.7-75.0 mm | | Eye Relief | Not specified by manufacturer | | Infrared Illuminator | Yes, integral | | Battery / Runtime | 1 x CR123A battery (not included)/ 40-80 h | | Weatherproofing | Weather-resistant | | Dimensions | 7.8 x 5.8 x 2.9" / 198 x 147 x 74 mm | | Weight | 38.8 oz / 1.1 kg | | | | Package Weight | 2.73 lb | | Box Dimensions (LxWxH) | 9.7 x 7.2 x 3.8" |
