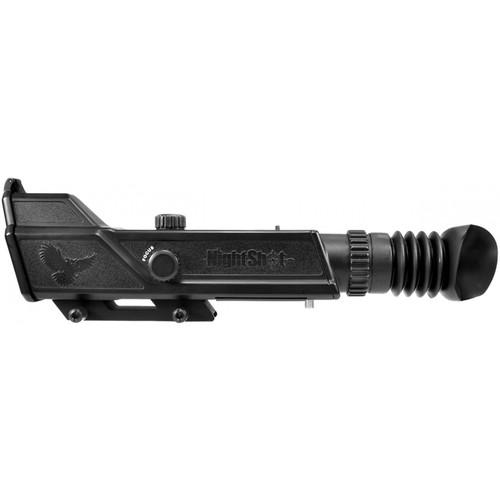

User Manual for Night Owl Optics NightShot 3x Digital Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Night Owl Optics NightShot 3x Digital
- Product category: Night Vision Riflescopes Night Owl Optics
- Brand: Night Owl Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Owl Optics Night Vision Riflescopes
|
User manual for the Night Owl Optics NightShot 3x Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Owl Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Owl Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Owl Optics product will considerably shorten its lifespan!
|
Product description Hunt your game using the NightShot 3x Digital Night Vision Riflescope from Night Owl Optics. The scope is ready to use right out of the box and can be attached to your firearm via its built-in Picatinny/Weaver mount. It is built around a 640 x 480 CMOS digital night vision sensor, whose sensitivity extends from 900nm (infrared region) all the way to 400nm (edge of blue light spectrum). This wide sensitivity range allows you to use the scope both at night or during the day. The 30 fps video can be viewed through a 640x480 LCD display located in the eyepiece. To help extend your visibility range and to improve image brightness and detail in total darkness, the rifle scope also features a built in 1.0W infrared LED illuminator. Other highlights of this NVD are its 8x magnification, three digital reticles, windage and elevation adjustments, and a 10' minimum focus distance. The water- and impact-resistant housing has an attached flip-up objective cap and a rubber eyecup with 2.7" eye relief. The scope is rated for use with non-magnums and calibers lower than .30. - Sensor, IR, and Display
-
- 640 x 480 CMOS imaging sensor
- Spectral response: 0.4-0.9μm
- Built-in 1.0W IR LED illuminator
- 640 x 480 LCD display operates at 30 fps
- Optical Performance
-
- 3x magnification
- 42mm objective
- 52mm focal length
- Angular field of view: 5.6°
- Minimum focus distance: 10'
- Digital Reticle
-
- Crosshair
- German #4 style
- Circle Dot
- Selectable black or white reticle backgrounds
- Use and Handling
-
- In-view menu and status indicators
- 1/4 MOA impact point correction
- Not for use with magnums
- Rated for calibers lower than .30
- Construction Details
-
- Built-in Picatinny/Weaver mount
- One full diameter cross-bold mounting screw
- One flat cross-bold mounting screw
- Built-in flip-up objective cover
- Screw socket for optional IR illuminator or other accessories
- Powered by four user-supplied AA batteries
- Rubber eyecup
- Water-resistant
UPC: 635328171196 In the Box Night Owl Optics NightShot 3x Digital Night Vision Riflescope (3 Digital Black-White Reticles, Matte Black) - Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Owl Optics NightShot 3x Digital Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Owl Optics NIGHTSHOT Specs | Image Sensor | 640 x 480 CMOS sensor | | Display | 640 x 480 LCD display (VGA) | | Frame Rate | 30 fps | | Magnification | 3x | | Objective Diameter | 40mm | | Lens Focal Length | 52mm | | Angle of View | 5.6° | | Minimum Focus Distance | 10' / 3.0 m | | Eye Relief | 2.7" / 68.5 mm | | Dioptric Correction | ±4 | | Windage/Elevation Adjustment | Yes | | Impact Point Correction | 1/2" at 100 yd (1/2 MOA) | | Infrared Illuminator | Type: LED
Power: 1.0 W
Divergence: 15°
Wavelength: 850 nm | | Battery / Runtime | 4 x AA batteries / 3 hours | | Weatherproofing | Weather-resistant | | Maximum Recoil | .30 caliber
Not for magnums | | Dimensions | 13.2 x 4.0 x 2.7" / 33.5 x 10.2 x 6.9 cm
Height above Rail: 1.5" / 3.8 cm | | Weight | 17.6 oz / 500.0 g (without batteries)
20.8 oz / 589.7 g (with batteries) | | | | Package Weight | 1.46 lb | | Box Dimensions (LxWxH) | 14.8 x 5.25 x 3.05" |
