User Manual for Night Owl Optics NOB3X 3x42 1st Generation Night Vision Binocular Click to enlarge the picture
Contents of the user manual for the Night Owl Optics NOB3X 3x42 1st
- Product category: Night Vision Binoculars Night Owl Optics
- Brand: Night Owl Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Night Owl Optics Night Vision Binoculars
|
User manual for the Night Owl Optics NOB3X 3x42 1st contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Night Owl Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Night Owl Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Night Owl Optics product will considerably shorten its lifespan!
|

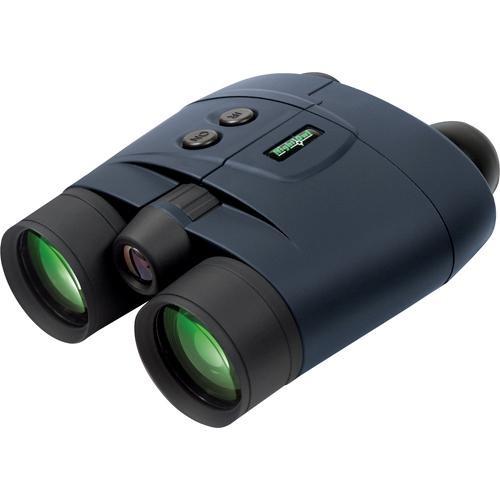

Product description Night Owl Optics's NOB3X 3x42 1st Generation Night Vision Binocular features two 1st generation intensifier tubes to deliver true binocular vision with a 3-dimensional perception of depth. To enable observations in total darkness or extremely low light, the binocular also carries a built-in infrared illuminator. To bump up light gathering capacity and image brightness even more, the binocular features 42mm objectives. The optical system combines all-glass lenses, a notable 3x magnification, and a wide 19.7° angular field of view. For convenience and comfort, the device provides an adjustable interpupillary distance, center focusing, and diopter adjustment.
The water-resistant housing is durable and offers a rubberized covering for a non-slip grip. The menu buttons are conveniently located on top, within easy reach of your fingertips. - Intensifier Tube and IR Illuminator
-
- Two 1st generation tubes
- 35 lp/mm resolution
- 0.4 - 0.9µm spectral sensitivity
- Integrated infrared illuminator
- Optical Performance
-
- Binocular vision
- 3x magnification
- 42mm objectives
- All-glass optics
- 19.7º angular field of view
- Interpupillary adjustment
- Adjustable diopter: +4 to -4
- Manual center focusing
- Construction Details
-
- Ergonomic polymer housing
- Soft-touch rubberized covering
- Impact-resistant molded thermoplastic lens housings
- Water resistant
- Rubberized eyecups
- Lens caps and a carry bag
UPC: 635328171233 In the Box Night Owl Optics NOB3X 3x42 1st Generation Night Vision Binocular (Blue-Black) - Carry Bag
- 2 x Lens Caps
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Night Owl Optics NOB3X 3x42 1st Generation Night Vision Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNight Owl Optics NOB3X Specs | Intensifier Tube | 1st generation
Resolution: 35 lp/mm
Spectral sensitivity: 0.4 to 0.9µm | | Magnification | 3x | | Objective Diameter | 42mm | | Linear Field of View | 1034' @ 1000 yd / 343 m @ 1000 m | | Angular Field of View | 19.7º | | Minimum Focus Distance | 6.6' / 2 m | | Dioptric Correction | +4 to -4 | | Interpupillary Adjustment | 2.3 - 3" / 58 - 75 mm | | Infrared Illuminator | Yes, built-in | | Battery / Runtime | 1 x CR-123A battery / 40 - 80 h | | Weatherproofing | Weather-resistant | | Temperature Ranges | Not specified by manufacturer | | Dimensions | 6.7 x 5.8 x 2.5" / 170.2 x 147.3 x 63.5 mm | | Weight | 30.6 oz / 867.5 g (without batteries) | | | | Package Weight | 2.605 lb | | Box Dimensions (LxWxH) | 9.75 x 7.2 x 3.8" |
