User Manual for Nightstick NSR-9514XL Multi-Function Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nightstick NSR-9514XL Multi-Function Rechargeable LED Flashlight
- Product category: Handheld Flashlights Nightstick
- Brand: Nightstick
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nightstick Handheld Flashlights
|
User manual for the Nightstick NSR-9514XL Multi-Function Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nightstick product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nightstick user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nightstick product will considerably shorten its lifespan!
|

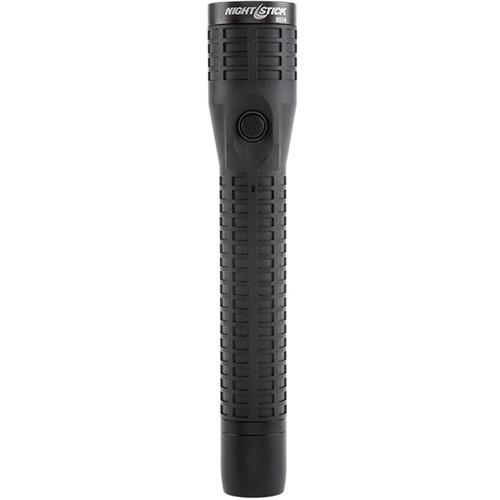

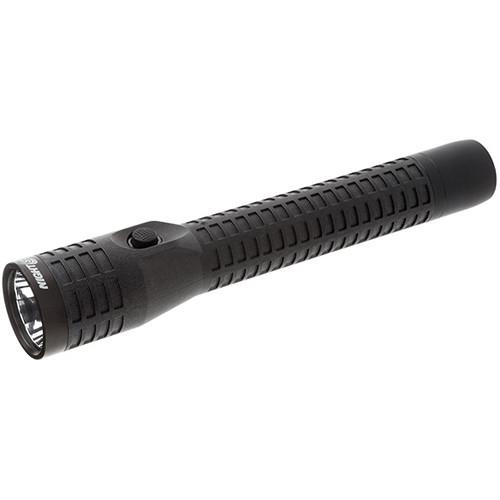

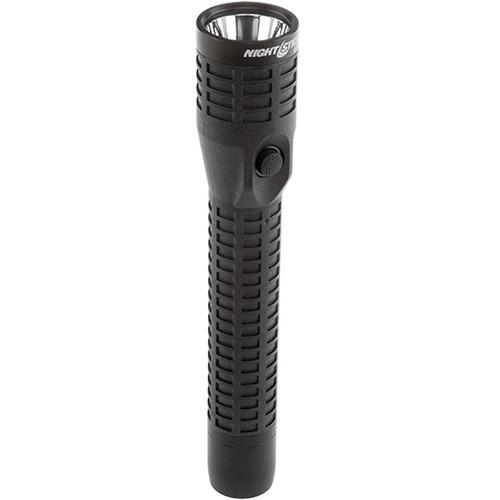

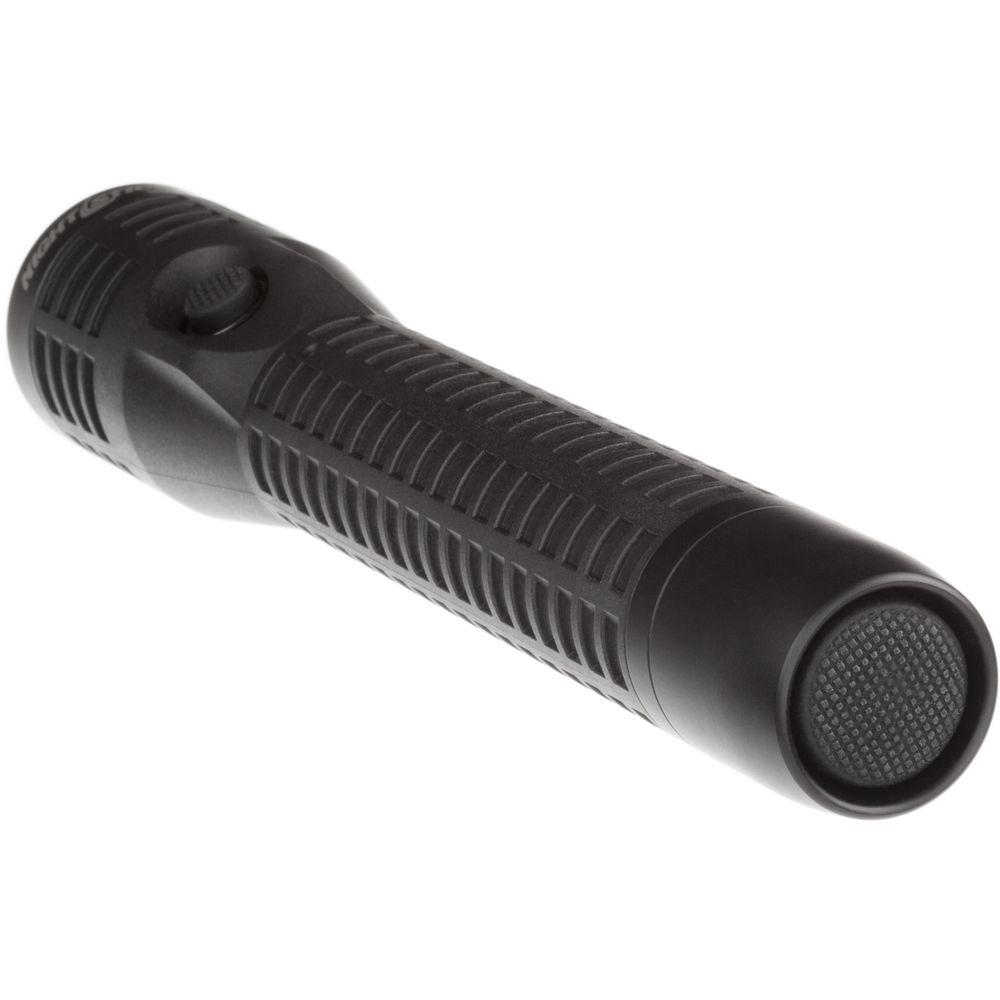

Product description Whether you're a tactical professional, first responder, technician, mechanic, or camper, having a reliable light ready to go at all times is critical—and the Nightstick NSR-9514XL Multi-Function Rechargeable LED Flashlight is up to the job. Boasting three outputs from 50 lumens up to a darkness-piercing 650 lumens, there's a brightness that is appropriate for every occasion, and a strobe mode can be used to signal your location or to disorient any threat. It is outfitted with two push buttons, one on the body and another on the tailcap, so you can easily activate and control the intensity and mode no matter how you hold the light.Creatively engineered, the body is made of a reinforced polymer plastic that is impact and chemical resistant. It is also temperature resistant and stays a neutral temperature even in cold weather, unlike aluminum, so it's comfortable to hold no matter how cold it is. To withstand the rigors of daily use, the tailcap is made of anodized aluminum and the front bezel on the head is anodized steel. The whole body is impact resistant to 6.6' and sealed to an IPX7 rating, making it waterproof and submersible to 3.3' for up to 30 minutes. A lithium-ion battery can be charged in the light when inserted into the charging base. The base comes with 110 VAC wall outlet and 12 VDC car/vehicle plug power adapters so you can keep fully charged at home, or in between calls in your cruiser. - Performance
-

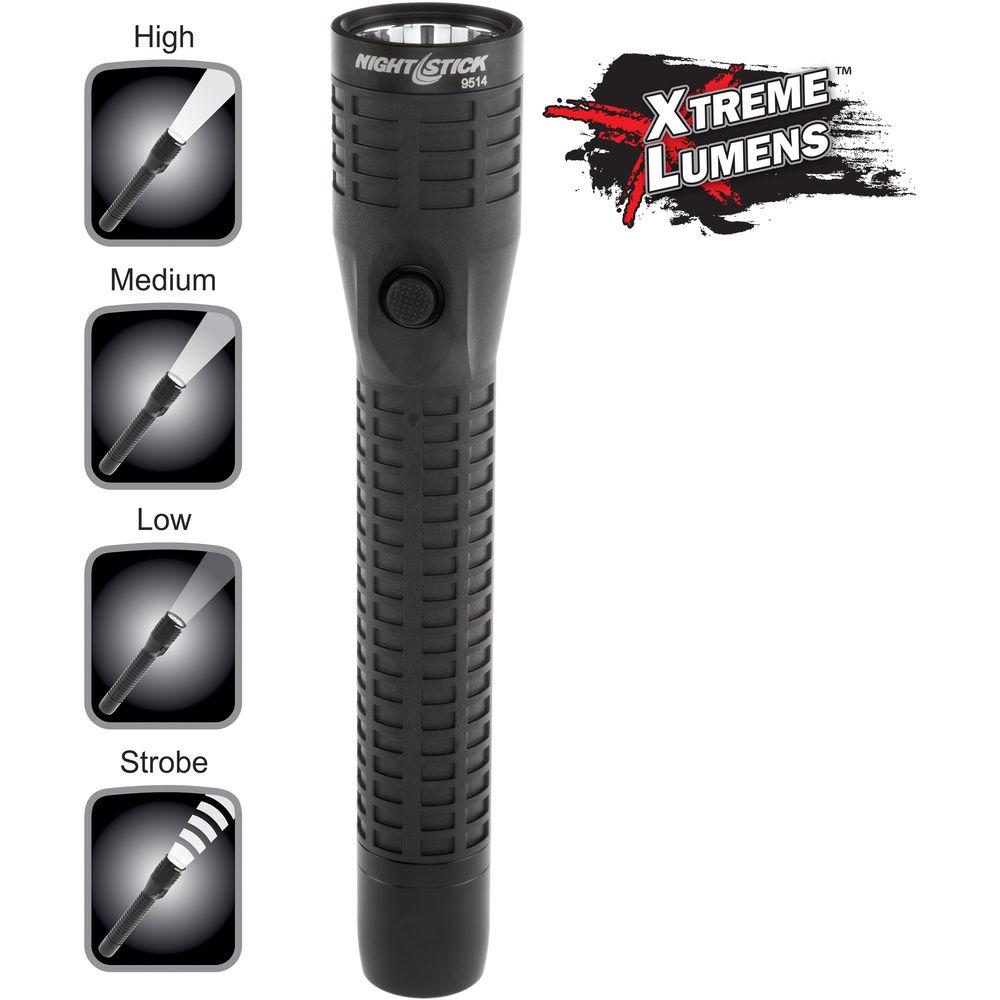

- Low 50-lumen output
- Medium 200-lumen output
- Darkness-piercing high 650-lumen output
- One white Cree LED
- Deep and smooth reflector produces a beam that is sharp and clear to maximize the throw
- Strobe mode can be used to disorient threats or signal location
- Switching
-
- Type: Push button
- Location: Tailcap and body
- Momentary and constant-on activation
- Access all outputs and functions from either button for added convenience
- Textured rubber push-button boots add slip resistance for positive switch control and tactile feel
- Recessed buttons prevent accidental activation
- Construction
-
- Body made of lightweight reinforced polymer nylon to be temperature/corrosion/impact resistant
- Tailcap made of durable 6061-T6 aluminum with Type III hard anodized finish
- Bezel is made of strong and durable 316 stainless steel with Type III anodized finish to withstand drops and impacts
- IPX7-rated waterproof to a depth of 3.3' (1m) for up to 30 minutes
- Impact resistant to 6.6'

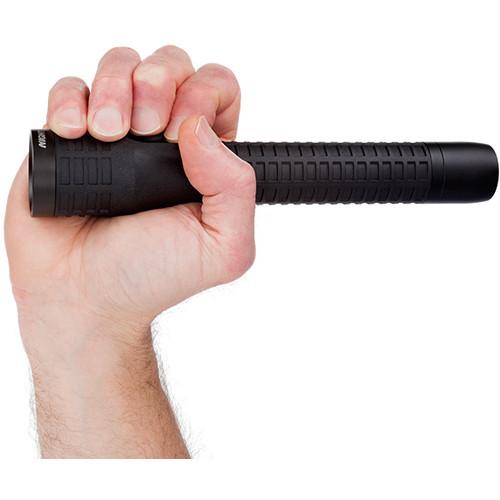

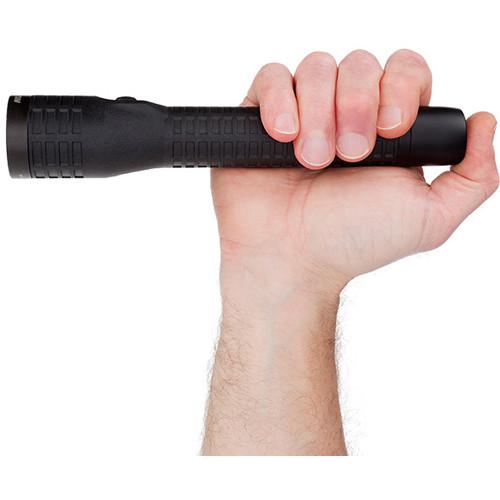

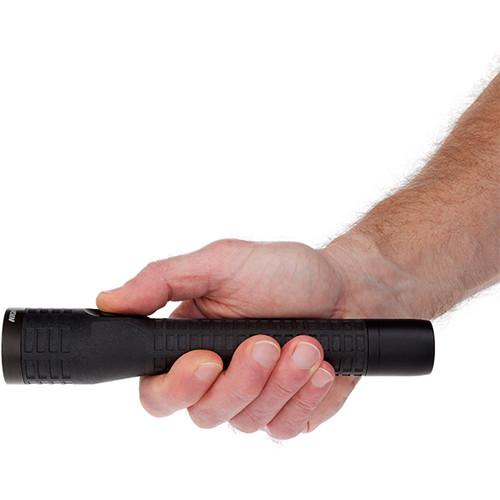

- Deep texture on handle and head for a slip-resistant grip in cold and wet weather
- Charging
-
- Charge battery in the flashlight
- Rechargeable lithium-ion (Li-ion) battery
- Wall or vehicle mountable charging base
- Includes 110 VAC wall outlet and 12 VDC car/vehicle plug power adapters
- 4-hour charge time
- LED charging/charged indicator on base: Red = Charging, Green = Charged

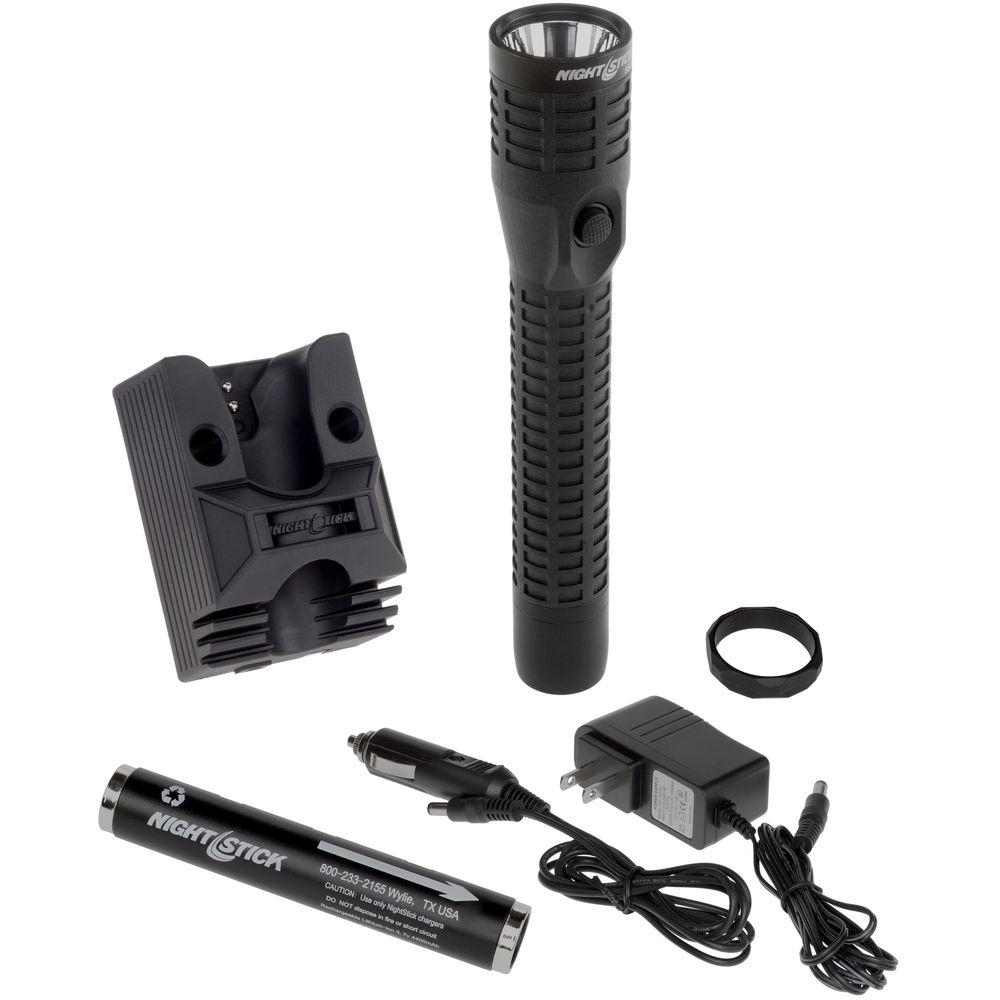

UPC: 017398803045 In the Box Nightstick NSR-9514XL Multi-Function Rechargeable LED Flashlight Li-Ion Battery Anti-Roll Ring 110 VAC Wall Outlet Power Adapter 12 VDC Power Supply Charger Mount Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nightstick NSR-9514XL Multi-Function Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNightstick NSR-9514XL Specs | Lumen Output | Low: 50 Lumens Medium: 200 Lumens High: 650 Lumens | Illumination Source | 1 x White LED | | Estimated Runtime | Low: 12 Hours Medium: 9 Hours High: 6.5 Hours Strobe: 5.5 Hours | Battery Type | 1 x Rechargeable Pack Lithium-Ion | Charging Time | 4 Hours | | Lens Material | Polycarbonate | Material of Construction | Aluminum, Nylon | Water Resistance | Waterproof, IPX7 | Impact Resistance | Yes, 6.6' / 2.0 m | Bezel Diameter | 1.6" / 4.1 cm | Dimensions |
