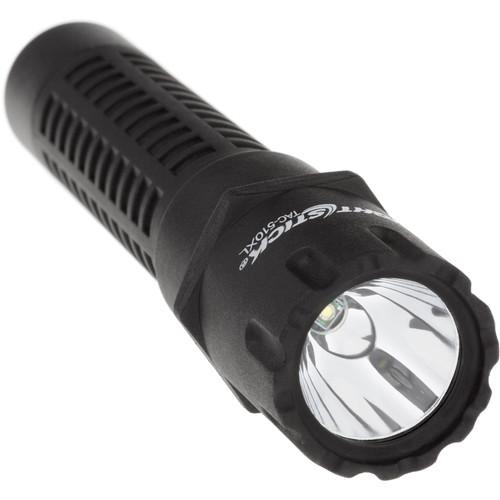

User Manual for Nightstick TAC-510XL Xtreme Lumens Multi-Function Tactical Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nightstick TAC-510XL Xtreme Lumens Multi-Function Tactical
- Product category: Handheld Flashlights Nightstick
- Brand: Nightstick
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nightstick Handheld Flashlights
 |
User manual for the Nightstick TAC-510XL Xtreme Lumens Multi-Function Tactical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nightstick product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nightstick user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nightstick product will considerably shorten its lifespan!
|
Product description Whether you're a tactical professional, first responder, technician, mechanic, or camper, having a reliable light ready to go at all times is critical—and the Nightstick TAC-510XL Xtreme Lumens Multi-Function Tactical Rechargeable LED Flashlight is up to the job. Boasting three outputs from 140 lumens up to a darkness-piercing 800 lumens, there's a brightness that is appropriate for every occasion, and a strobe mode can be used to signal your location or to disorient any threat. It is outfitted with a single push-button tailcap switch that gives you access to all outputs and modes.The body is made of a reinforced polymer nylon that is impact and chemical resistant. It is also temperature resistant and stays a neutral temperature even in cold weather, unlike aluminum, so it's comfortable to hold no matter how cold it is. It is impact resistant to 6.6' and sealed to an IPX7 rating, making it waterproof and submersible to 3.3' for up to 30 minutes. The lithium-ion battery can be charged in the light when inserted into the charging base. The base comes with 110 VAC wall outlet and 12 VDC car/vehicle plug power adapters so you can keep fully charged at home, or in-between calls in your cruiser. If your light runs out of charge, you can use two CR123 batteries to keep you going. - Performance
-

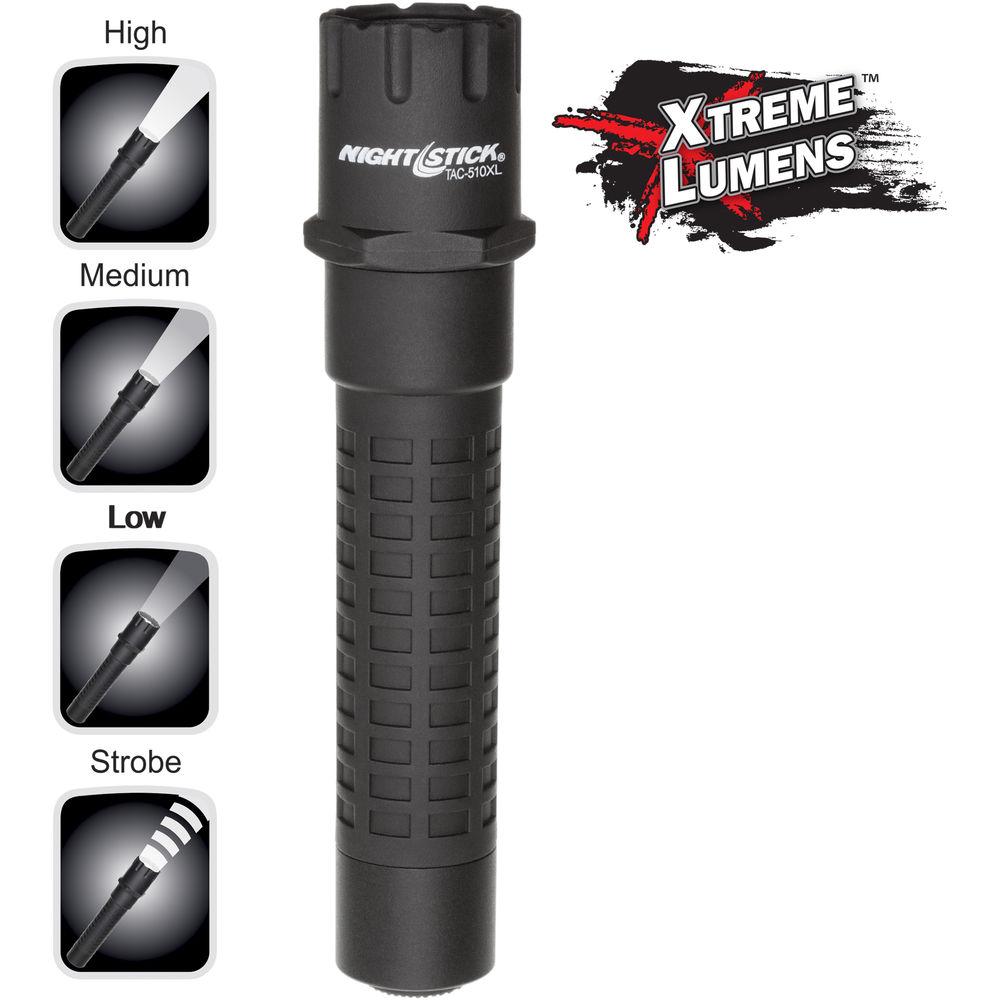

- Low 140-lumen output
- Medium 350-lumen output
- Darkness-piercing high 800-lumen output
- One white Cree LED
- Deep and smooth reflector produces a beam that is sharp and clear to maximize the throw
- Strobe mode can be used to disorient threats or signal location
- Switching
-
- Type: Push button

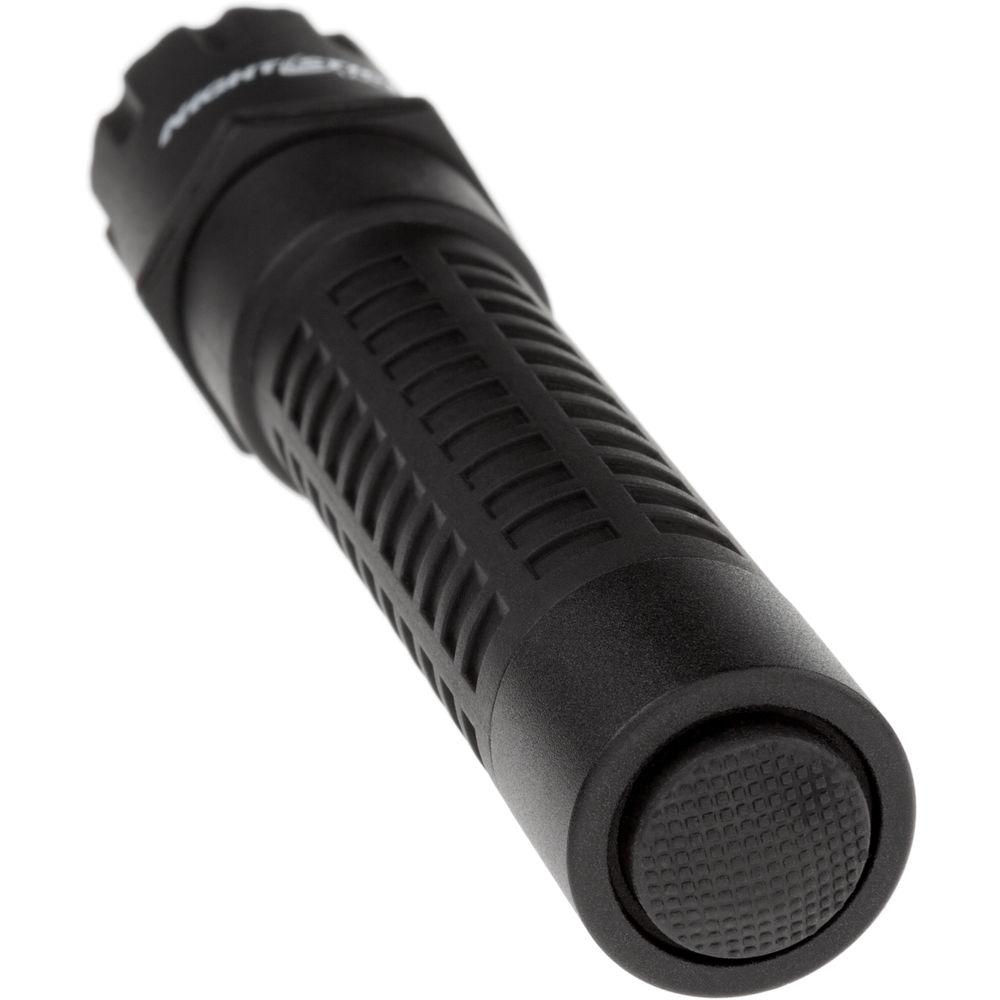

- Location: Tailcap
- Momentary and constant-on activation
- Textured rubber push button boot adds slip resistance for positive switch control and tactile feel
- Construction
-
- Lightweight reinforced polymer nylon is temperature, corrosion, and impact resistant
- IPX7-rated waterproof to a depth of 3.3' (1m) for up to 30 minutes
- Impact resistant to 6.6'
- Deep texture on handle and head for a slip-resistant grip in cold and wet weather
- Anti-roll collar on the head
- Light 5.1-ounce weight
- Charging
-
- Runs on one included rechargeable lithium-ion (Li-ion) battery
- Capable of running on two user-supplied CR123 batteries using the included battery cartridge
- Charge battery in the flashlight

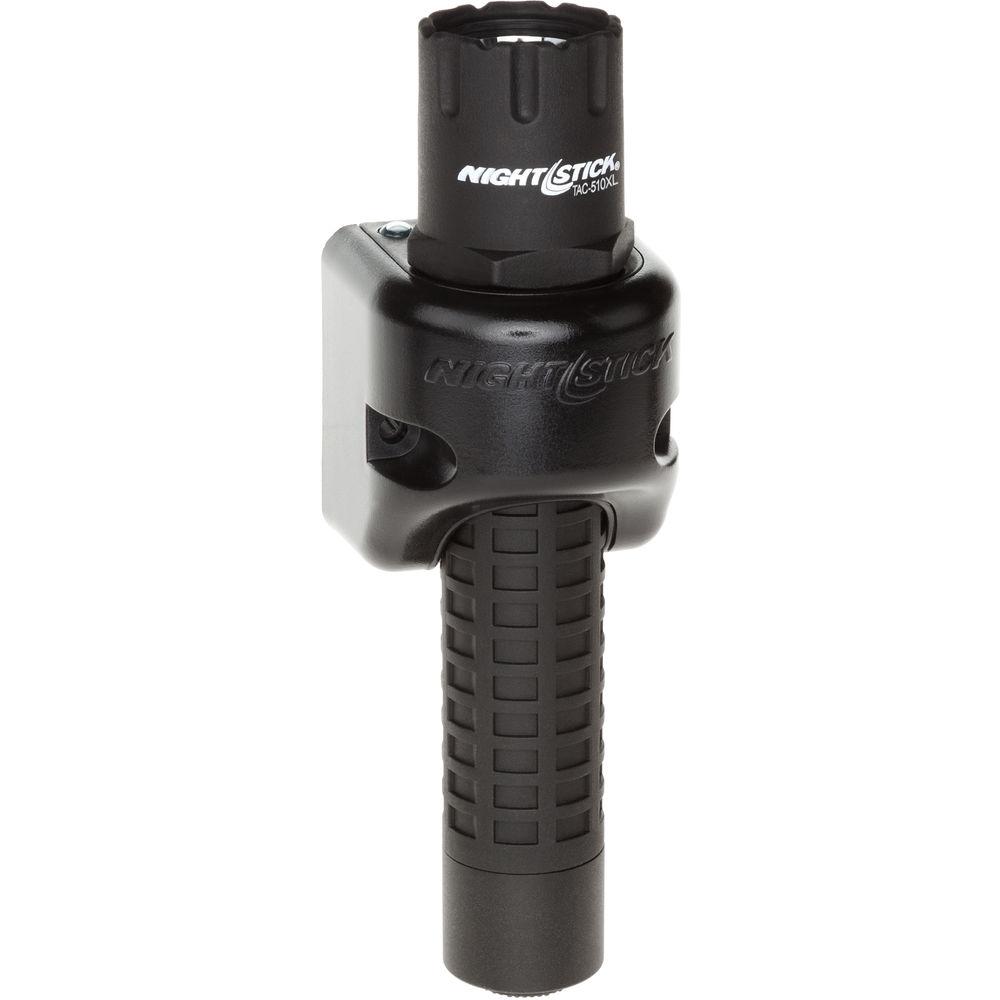

- Wall- or vehicle-mountable charging base
- Includes 110 VAC wall outlet and 12 VDC car/vehicle plug power adapters
- 4-hour average charge time
- LED charging/charged indicator on base: Red = charging, green = charged

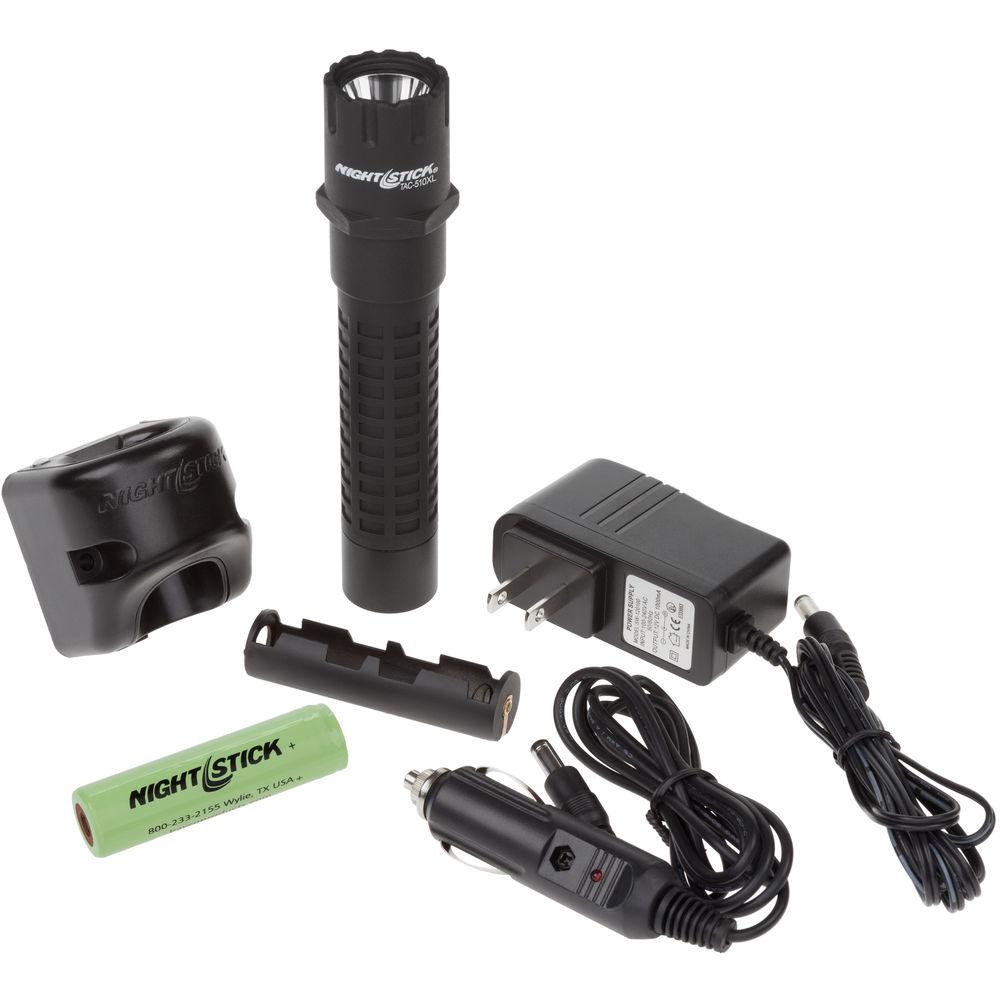

UPC: 017398804196 In the Box Nightstick TAC-510XL Xtreme Lumens Multi-Function Tactical Rechargeable LED Flashlight (Black) Battery Cartridge Lithium-Ion Battery 110 VAC Wall Outlet Power Adapter 12 VDC Power Supply Charger Mount Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nightstick TAC-510XL Xtreme Lumens Multi-Function Tactical Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

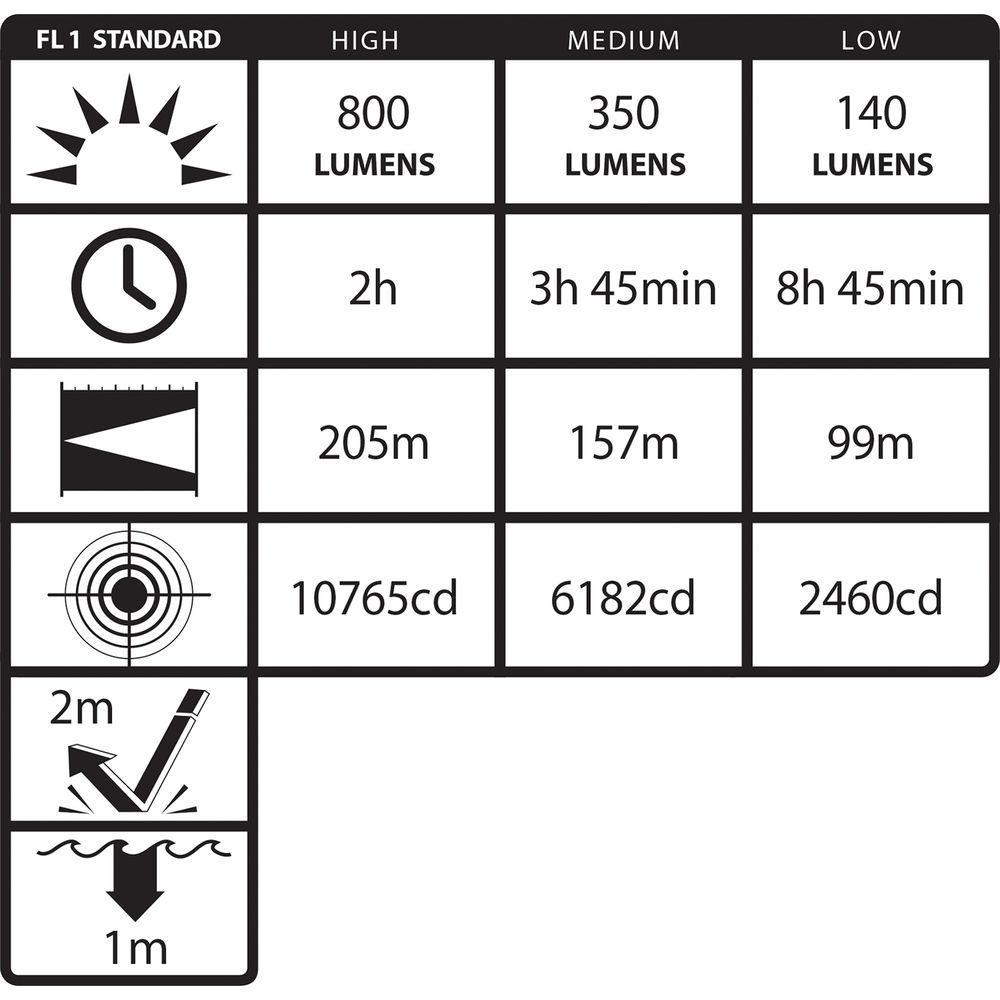

Technical parametersNightstick TAC-510XL Specs | | | Lumen Output | Low: 140 Lumens
Medium: 350 Lumens
High: 800 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | Low: 8.75 Hours
Medium: 3.75 Hours
High: 2 Hours
Strobe: 3.25 Hours | | Battery Type | 1 x Rechargeable Pack Lithium-Ion | | Charging Time | 4 Hours | | | | Lens Material | Polycarbonate | | Material of Construction | Nylon | | Water Resistance | Waterproof, IPX7 | | Impact Resistance | Yes, 6.6' / 2.0 m | | Bezel Diameter | 1.3" / 3.2 cm | | Dimensions |
