User Manual for Nightstick XPP-5566RX INTRANT Intrinsically Safe Permissible Dual-Light Right-Angle LED Light Click to enlarge the picture
Contents of the user manual for the Nightstick XPP-5566RX INTRANT Intrinsically Safe Permissible
- Product category: Handheld Flashlights Nightstick
- Brand: Nightstick
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nightstick Handheld Flashlights
 |
User manual for the Nightstick XPP-5566RX INTRANT Intrinsically Safe Permissible contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nightstick product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nightstick user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nightstick product will considerably shorten its lifespan!
|

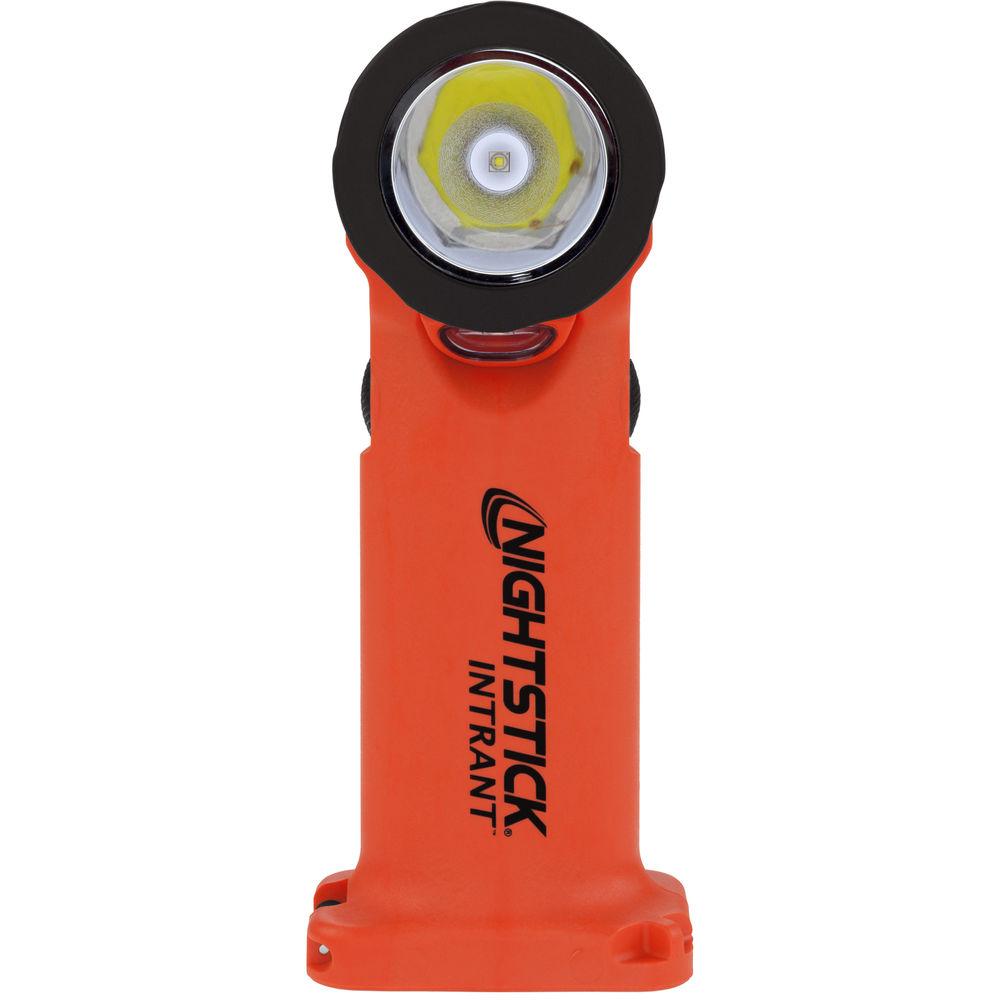

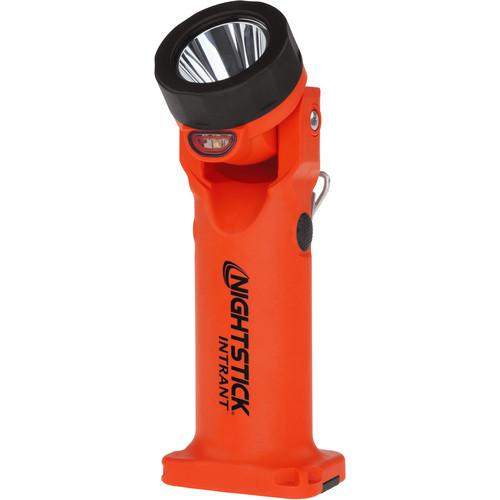

Product description From industrial applications to firefighting, mining, and other professions that require you to go into potentially hazardous environments, you need a reliable and powerful light that won't accidentally cause fires or explosions—and the Nightstick XPP-5566RX INTRANT Intrinsically Safe Permissible Dual-Light Right-Angle LED Light is designed to be that light. Holding multiple safety certifications, the light is completely sealed and mechanically locked with a locking screw.The head is set at a right angle to the handle, so it can be attached to your chest by various methods and light the way ahead without having to hold it, and it pivots up to 90° for precise beam placement or to have the head in-line with the handle so you can hold it like a conventional flashlight. Its primary LED has three outputs from 60 to 200 lumens with a strobe mode that can be used to signal your location. For added safety and visibility, there is an auxiliary LED set on the bottom of the head and angled 45° downward so that you can have light directly in front of you for either navigation or reading (or both). The secondary light moves when the head moves, so its placement relative to the primary beam stays the same. As an added bonus, you have the option of having both LEDs run at the same time. For additional safety and convenience, each LED is controlled by separate dedicated push-button switches.The light's body is made of a high-visibility engineered polymer nylon that is impact and chemical resistant. It is also temperature resistant and stays a neutral temperature even in cold weather, unlike aluminum, so it's comfortable to hold no matter how cold it is. When properly locked, the light is IP67-rated to be dustproof, waterproof, and submersible to 3.3' for up to 30 minutes. It is also impact rated to 6.6', so it will hold up to the rigors of daily use and abuse. To make it easy to carry, the light features a large spring-loaded clip so you can attach it to your belt, a strap, or a harness or secure it in a pocket, as well as a D-ring that allows you to hang it from a lanyard, rope, or carabiner. - Certified for Use in Hazardous Environments
-
- CE, cULus, Atex, IECEx, and NFPA certified as Intrinsically Safe Permissible
- Designed to be safe to use in potentially explosive atmospheres or environments, including methane-air mixture
- Light is mechanically locked with a locking screw to ensure the case remains sealed for safe use
- To prevent ignition in a hazardous atmosphere, the batteries must only be exchanged in an area known to be nonhazardous
- Certified for use with optional Bayco model 5568-BATT Li-ion battery pack or the included battery cartridge and three AA Energizer Type EN91 or E91 batteries ONLY
- Do not use any other brand or model of batteries
- Performance
-

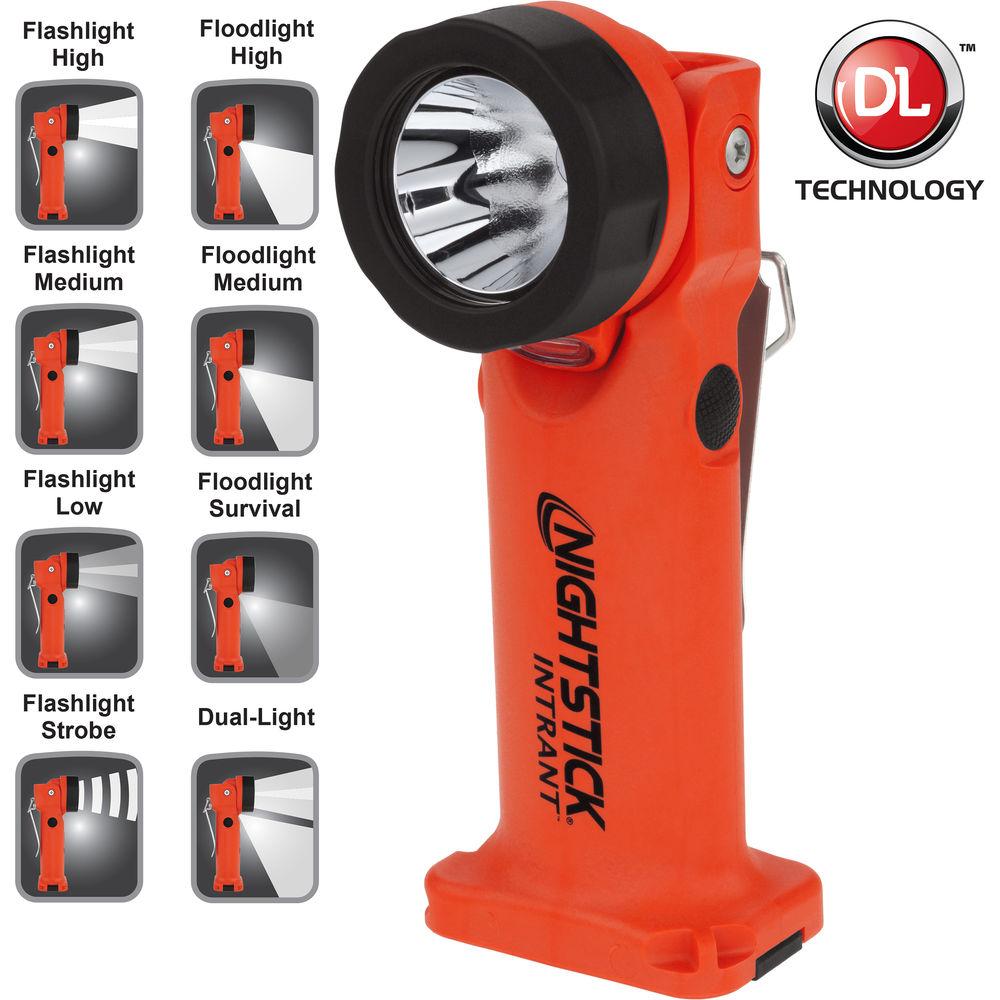

- Primary LED has three outputs: Low, medium, high
- Secondary floodlight LED has three lower-output options
- Deep parabolic reflector is designed to produce an ultra-tight beam that is optimized to cut through smoke and to light objects far ahead
- Head set at a right angle to handle/body for hands-free use when clipped/strapped to the body, harnesses, or other gear
- Head pivots up to 90° for precise beam placement or to use it in a conventional flashlight-like configuration
- Secondary LED points down at a 45° angle to head to illuminate directly in front for safe navigation or to more easily read maps and floor plans
- Turn both flashlight and floodlight on to produce 205 lumens of mixed illumination for near and far light needs
- Dual light runtime is 11 hours
- Strobe mode can be used to improve your visibility to others or mark your location
- Light Source Options
- Primary LED:
- Low 60-lumen output
- Medium 110-lumen output
- High output of 200 lumens
Secondary LED:- Set at a 45° angle to primary beam to provide light down and in front
- Low 20-lumen "survival mode" provides important illumination while maximizing battery life to 33 hours
- Medium 40-lumen output
- 100-lumen high output
- Switching
-
- Type: Dual push buttons
- Location: Left and right sides of handle
- Both lights go to high output when turned on
- Exposed and textured, the switch boots are easy to find by touch and use with either hand and while wearing gloves
- Construction
-
- Engineered reinforced nylon polymer is impact/chemical/temperature resistant
- Maintains a neutral temperature, even in hot, cold, and wet weather
- IP67-rated to be dustproof, waterproof, and submersible to 3.3' for up to 30 minutes
- Impact resistant to 6.6'

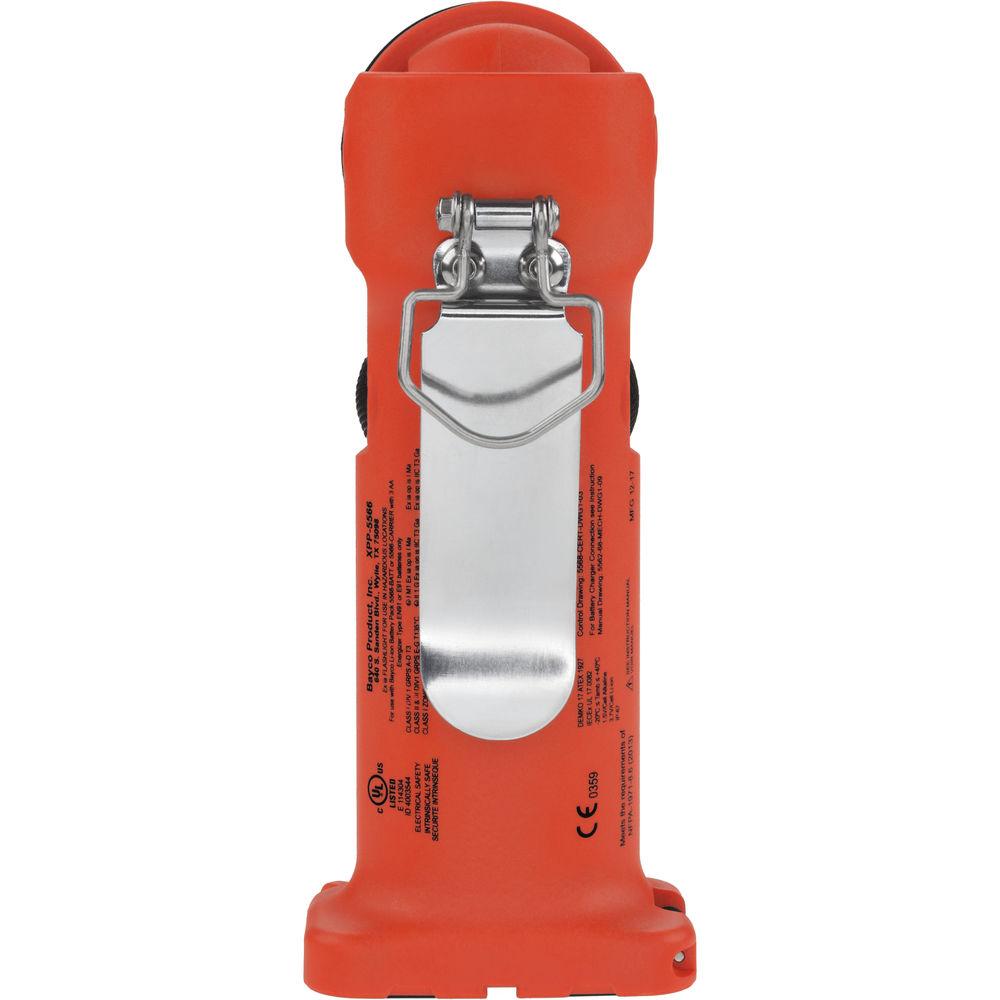

- Large steel clip enables it to be attached to pockets, harnesses, straps, and duty belts
- Large steel loop for a lanyard, carabiner, strap, or rope
- Can be upgraded with the optional rechargeable Lithium-ion battery pack and charger
- Runs on three included AA batteries with an optional rechargeable battery pack available separately

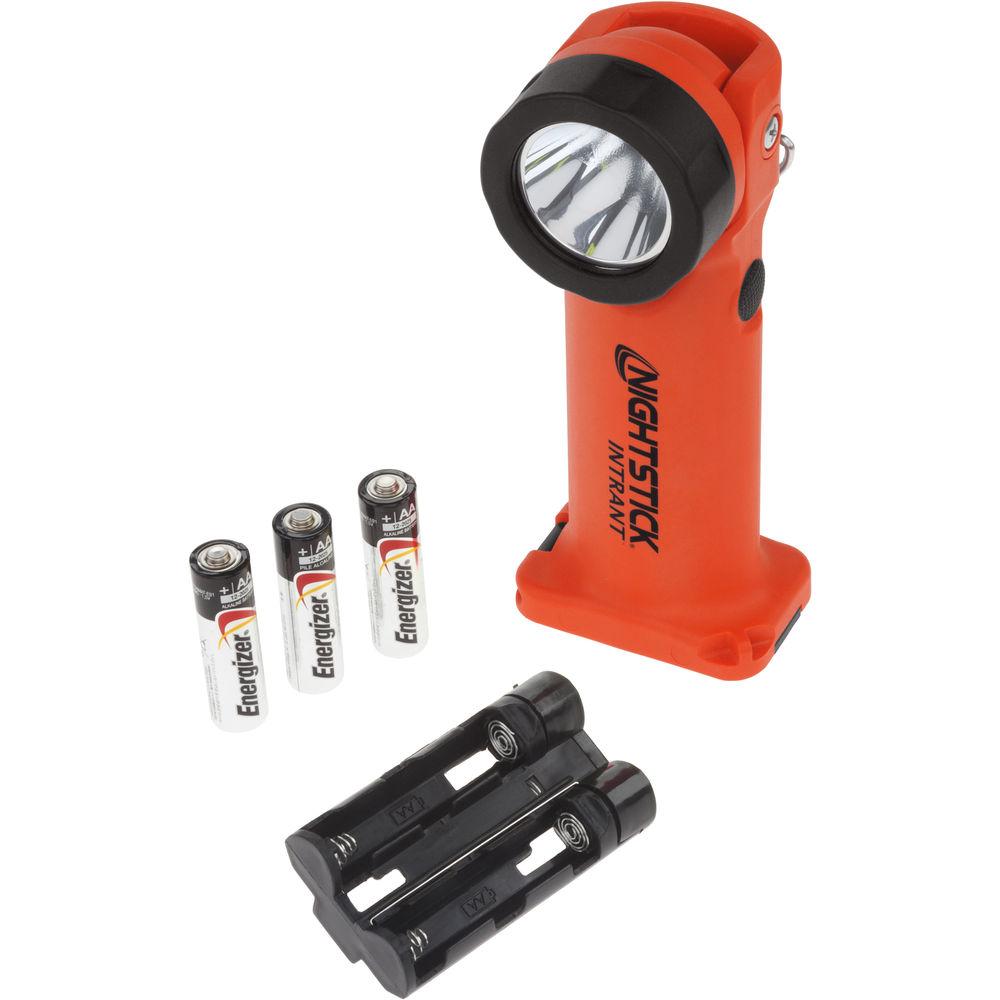

UPC: 017398806299 In the Box Nightstick XPP-5566RX INTRANT Intrinsically Safe Permissible Dual-Light Right-Angle LED Light (Red) AA Battery Cartridge 3 x AA Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nightstick XPP-5566RX INTRANT Intrinsically Safe Permissible Dual-Light Right-Angle LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

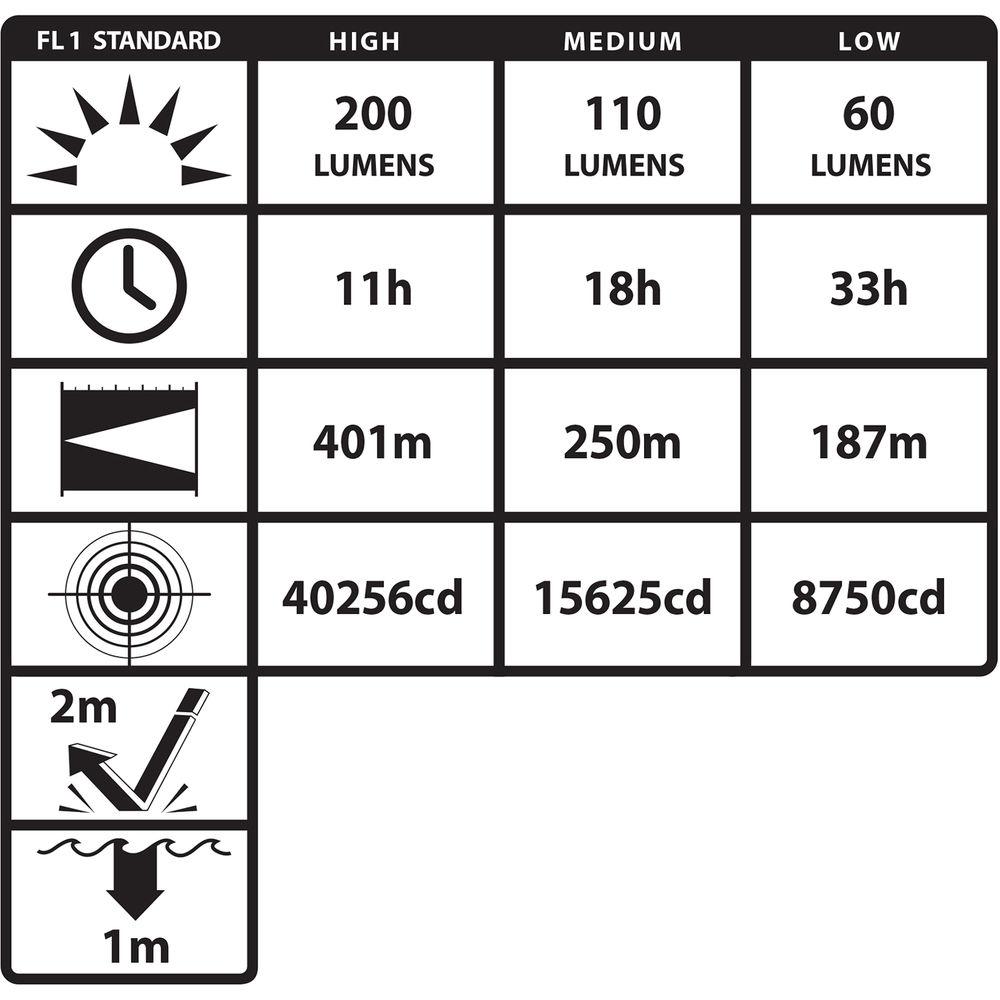

Technical parametersNightstick XPP-5566RX Specs | | | Lumen Output | Low: 60 Lumens
Medium: 110 Lumens
High: 200 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | Low: 33 Hours
Medium: 18 Hours
High: 11 Hours | | Battery Type | 3 x AA Alkaline | | | | Lens Material | Polycarbonate | | Material of Construction | Nylon | | Water Resistance | Waterproof, IP67 | | Impact Resistance | Yes, 6.6' / 2.0 m | | Bezel Diameter | 2.1" / 5.3 cm | | Dimensions | H: 2.6 x W: 2.6 x L: 6.6" / H: 6.6 x W: 6.6 x L: 16.8 cm | | Weight | 11.11 oz / 315.0 g (With Batteries) |
