User Manual for Nikon 10x25 Travelite Binocular Click to enlarge the picture
Contents of the user manual for the Nikon 10x25 Travelite Binocular
- Product category: Binoculars Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon Binoculars
 |
User manual for the Nikon 10x25 Travelite Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|

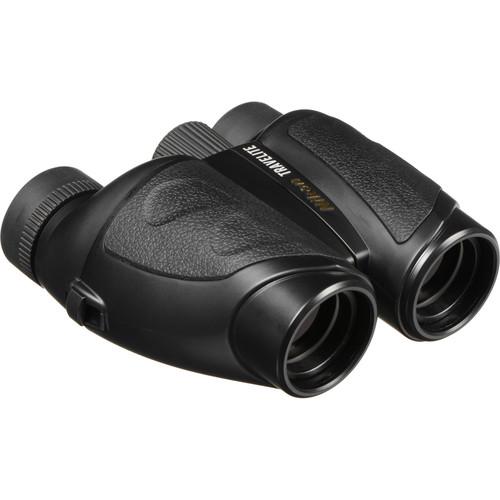

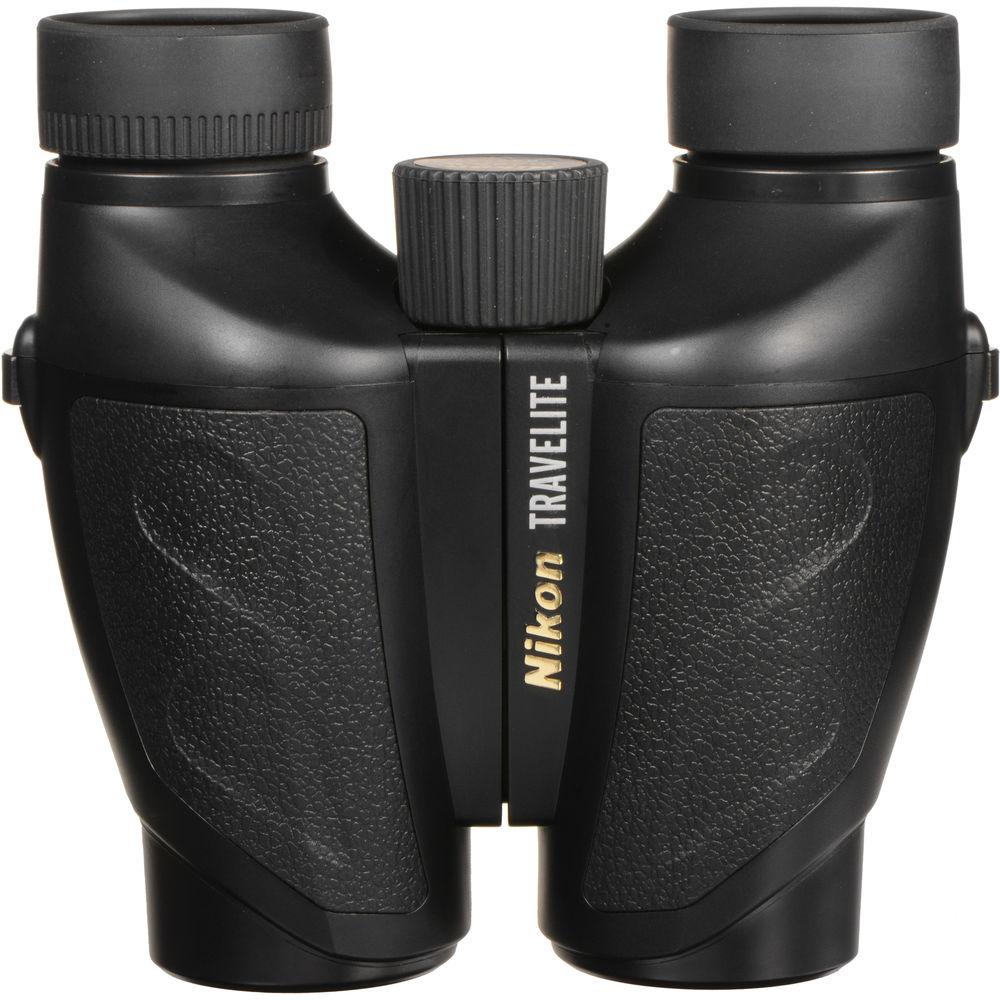

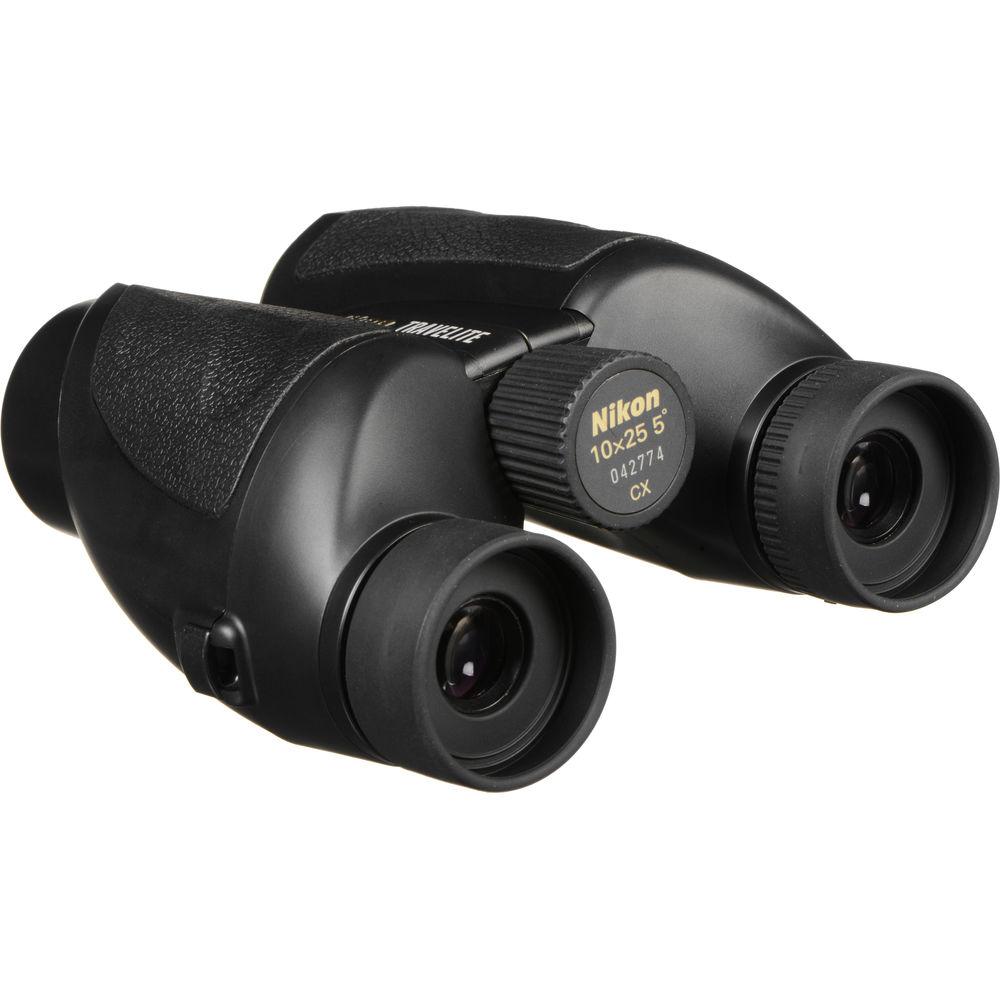

Product description The B&H Binocular Buying Guide Read More The 10x25 Travelite Binocular from Nikon is a lightweight and compact optic with a powerful magnification to bring distant subjects up close for detailed observations. It features a fully multi-coated optical path and an ergonomic housing—making it an ideal companion for outdoor enthusiasts, sports spectators, and city sightseers alike. Complementing the travel-friendly size are aspherical lenses that reduce the curvature that can distort the field of view as well as BAK4 reverse Porro prisms that work together to present flat high-contrast images with lifelike color and consistent center-to-edge sharpness. Combined with a 10' close focus distance, this 10x25 binocular is ready for almost any mid- to long-range glassing task. Responsibly sourced and containing no lead or arsenic, Nikon's Eco-Glass is used in all the lenses and prisms, to be ecologically friendly. - Optical Performance
-
- Powerful 10x magnification allows for detailed observations of distant objects
- Compact 25mm diameter objective lenses help to maintain a small form factor for easier handling and packing
- Space-saving reverse Porro prism design keeps the chassis small
- BAK4 prism glass delivers a round exit pupil and a crisp and clear image with limited edge distortion
- Aspherical lens design minimizes field curvature, especially at the edges, and enhances sharpness
- Environmentally friendly prisms and lenses feature Eco-Glass that is made without lead and arsenic
- Fully multi-coated optics reduce glare and improve light transmission, color rendition, and contrast
- 262-foot field of view at 1000 yards
- Use and Handling
-
- Textured center focus wheel is easy to manipulate, even while wearing gloves
- Right-eye dioptric correction helps to compensate for individual optical prescriptions to achieve tack-sharp focusing without wearing corrective lenses
- 56-72mm interpupillary distance
- Fold-down rubber eyecups for comfortable use with or without eyewear
- 11.1mm eye relief
- 2.5mm exit pupil
- Construction Details
-
- Ergonomic contoured body has a natural feel in the hand
- Slip-resistant rubber armoring improves grip security
- Enhanced texture and finger indents add grip strength
- Compact 4.6x4.3" design
- Light 9.5-ounce weight
UPC: 018208072781 In the Box Nikon 10x25 Travelite Binocular Carrying Case Neck Strap Eyepiece Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 461.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon 10x25 Travelite Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon 7278 Specs | Prism Type | Porro | | Magnification | 10 x | | Objective Lens Diameter | 25 mm | | Angle of View | 5.0° (Actual) | | Field of View | 262.0' @ 1000 yd / 87.0 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 2.5 mm | | Eye Relief | 11.1 mm | | Interpupillary Adjustment | 56 to 72 mm / 2.2 to 2.8" | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 4.6 x 4.3" / 11.7 x 10.9 cm | | Weight | 9.5 oz / 269.3 g | | | | Package Weight | 0.96 lb | | Box Dimensions (LxWxH) | 6.45 x 5.55 x 2.9" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
