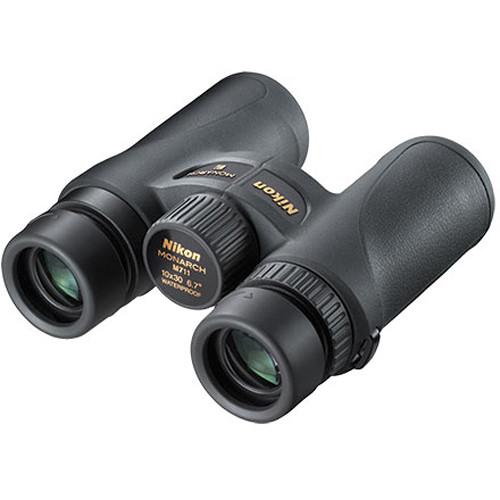

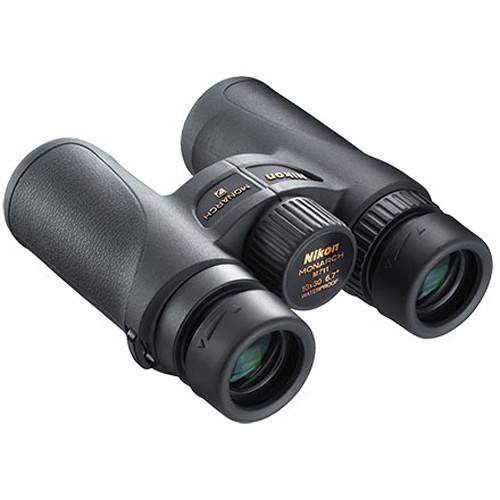

User Manual for Nikon 10x30 Monarch 7 ATB Binocular Click to enlarge the picture
Contents of the user manual for the Nikon 10x30 Monarch 7 ATB Binocular
- Product category: Binoculars Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon Binoculars
 |
User manual for the Nikon 10x30 Monarch 7 ATB Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|

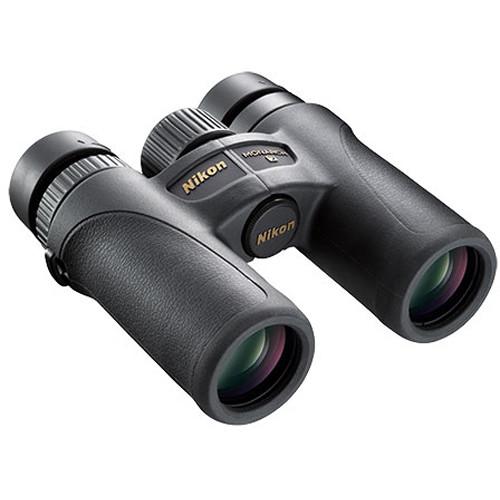

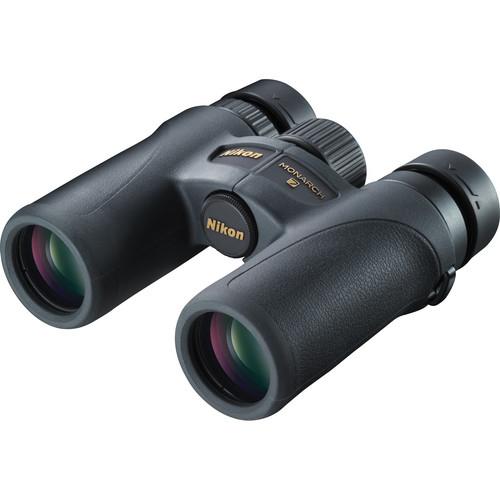

Product description The B&H Binocular Buying Guide Read More Nikon's 10x30 Monarch 7 ATB Binocular takes the features of the 42mm models and puts them into a smaller and lighter chassis to create a highly portable optic engineered for performance in all weather.Outfitted with anti-reflection, fully multi-coated, extra-low dispersion glass elements and highly reflective dielectric-coated and phase-corrected roof prisms, the images produced are bright and clear with high-contrast and accurate color rendition and minimal color fringing across the entire wide field of view. Its wide 61° apparent angle of view helps to offset the distracting hand shake that often accompanies high-power optics such as this, allowing users to make detailed observations of distant subjects easily. The 30mm objectives boost its light-gathering ability versus compact models, without the bulk and weight of full-sized ones that can cause fatigue while hanging around the neck or when held up to the face. With the combination of spacious field of view and glass, prism, and optical coatings, users can enjoy a comfortable and immersive observational experience while on the move in the field or sightseeing around town.Complementing the optical performance are construction details that make this binocular durable and comfortable to use. It has a lightweight and durable reinforced polycarbonate ATB chassis and is protected by rubberized armor that is accented with indented palm rests to give it a secure non-slip grip. The optical tubes are nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature variations and environmental conditions. A one-piece ocular rainguard covers the eyecups as the binocular hangs around the neck and prevents rain and spraying water from filling them, and the objective lens caps are also tethered to keep them safe from being lost on the forest floor. The exterior lens surfaces are treated with a clear armor coating that helps to prevent scratches and abrasions, while allowing dirt, debris, oils, and saps to be more easily cleaned off without leaving residues.From birdwatching, to orienteering, to sightseeing, the 10x30 Monarch 7 is built to be your constant companion for all your glassing needs. - Optical Performance
-
- High 10x power enables detailed observations of distant subjects
- 30mm objective lenses improve light-gathering ability versus compact models without the bulk or weight of full-sized ones
- Roof prism light path ensures optical tubes remain thin for a compact form factor
- Extra low-dispersion glass reduces chromatic and spherical aberrations for increased contrast, improved color rendition, and sharpness without distortion across the entire field of view
- Phase-corrected prism coatings reduce internal interference to improve light transmission, contrast, and resolution
- Anti-reflection fully multi-coated optics maximize light transmission across the entire visible spectrum for accurate color rendition and improved contrast and clarity
- Highly reflective dielectric prism multi-layer coatings boost internal reflection to >99% to maintain image brightness and improve contrast and clarity
- Wide 61° apparent angle of view reduces the appearance of the distracting hand shake that is common when holding high-power optics and provides an immersive observational experience
- 351' field of view at 1000 yards
- Use and Handling
-
- Closed-bridge configuration provides a solid and stable platform for the internal focusing mechanism
- Large slip center focus wheel allows for precise focus control, even while wearing gloves
- Right eye dioptric adjustment collar helps to compensate for individual eye prescription
- 56-72mm interpupillary distance range allows easy use by a wide variety of people
- Twist-up/click-stop rubber eyecups for use with or without eyewear
- Tripod mountable with optional adapter for hands-free use
- 15.8mm eye relief helps to reduce eyestrain and improves viewing comfort
- 3mm exit pupil
- Construction Details
-
- Environmentally friendly Eco-Glass is made without lead or arsenic
- Protective lens coating on external surfaces to prevent scratches and abrasions, and to make cleaning them easier without leaving residues behind
- Lightweight and durable fiberglass-reinforced polycarbonate chassis
- Chassis material is temperature resistant, preventing the expansion and contraction that is common with metal, which can cause the optical components to move out of alignment over time and prevent sharp focus
- Textured protective rubber armoring provides a slip-resistant grip, especially in cold and wet weather
- Indents on the sides of the optical tubes are ergonomically placed where the hands naturally fall for a more comfortable feel in the hand and a more secure grip
- Nitrogen filled and O-ring sealed to be waterproof and submersible to 3.3' (1m) for up to 10 minutes and resistant to internal fogging when moving through extreme temperature changes and environmental conditions
- One-piece tethered ocular rainguard protects eyecups from water pooling in them from rain or spraying water when hanging from the neck

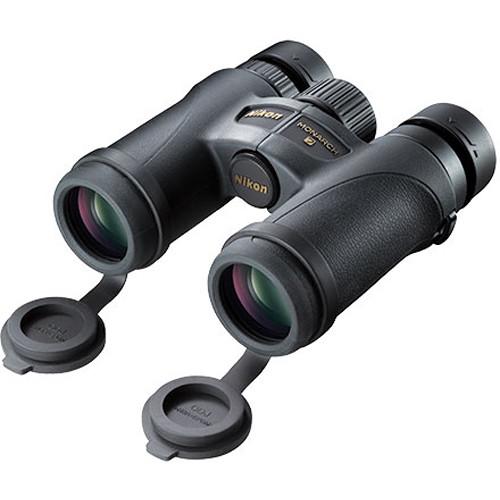

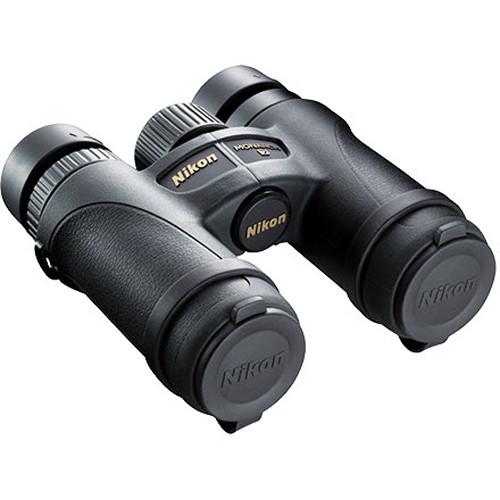

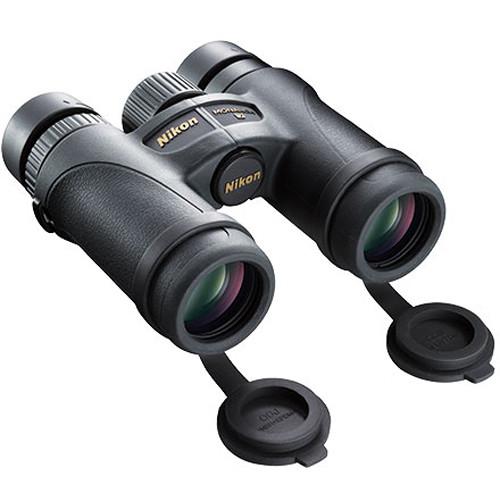

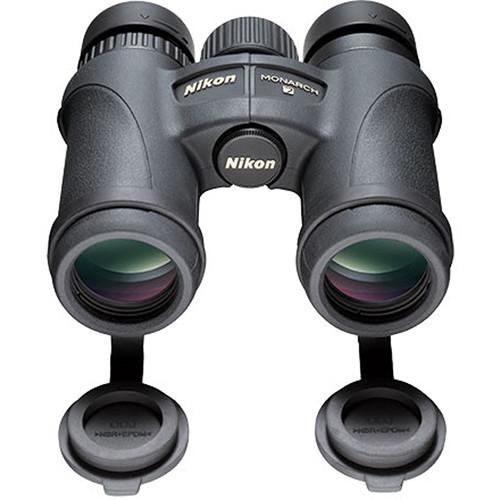

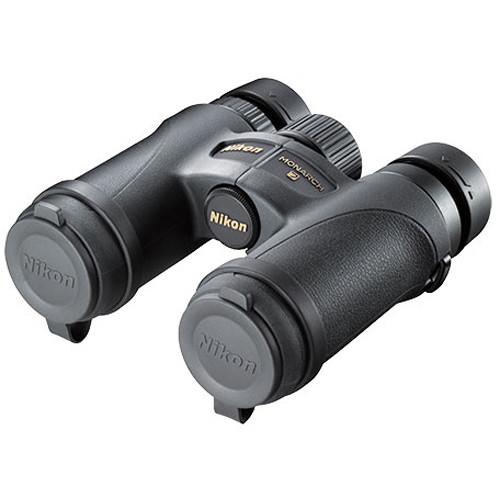

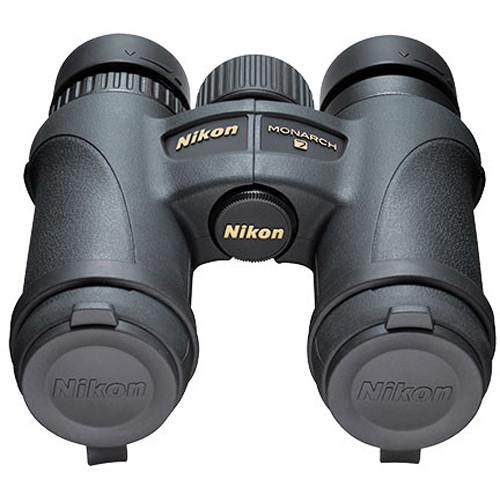

- Tethered fold-down objective lens caps prevents losing them during observation sessions
- Weight: 15.5 ounces
UPC: 018208075805 In the Box Nikon 10x30 Monarch 7 ATB Binocular (Black) Neck Strap Carrying Case One-Piece Ocular Rainguard 2 x Objective Lens Cap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon 10x30 Monarch 7 ATB Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon 7580 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 30 mm | | Angle of View | 6.7° (Actual) | | Field of View | 351.0' @ 1000 yd / 116.5 m @ 1000 m | | Minimum Focus Distance | 6.5' / 2 m | | Exit Pupil Diameter | 3 mm | | Eye Relief | 15.8 mm | | Interpupillary Adjustment | 56 to 72 mm / 2.2 to 2.8" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 4.8 x 4.7" / 12.2 x 11.9 cm | | Weight | 15.5 oz / 440.0 g | | | | Package Weight | 1.515 lb | | Box Dimensions (LxWxH) | 6.7 x 6.55 x 3.15" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
