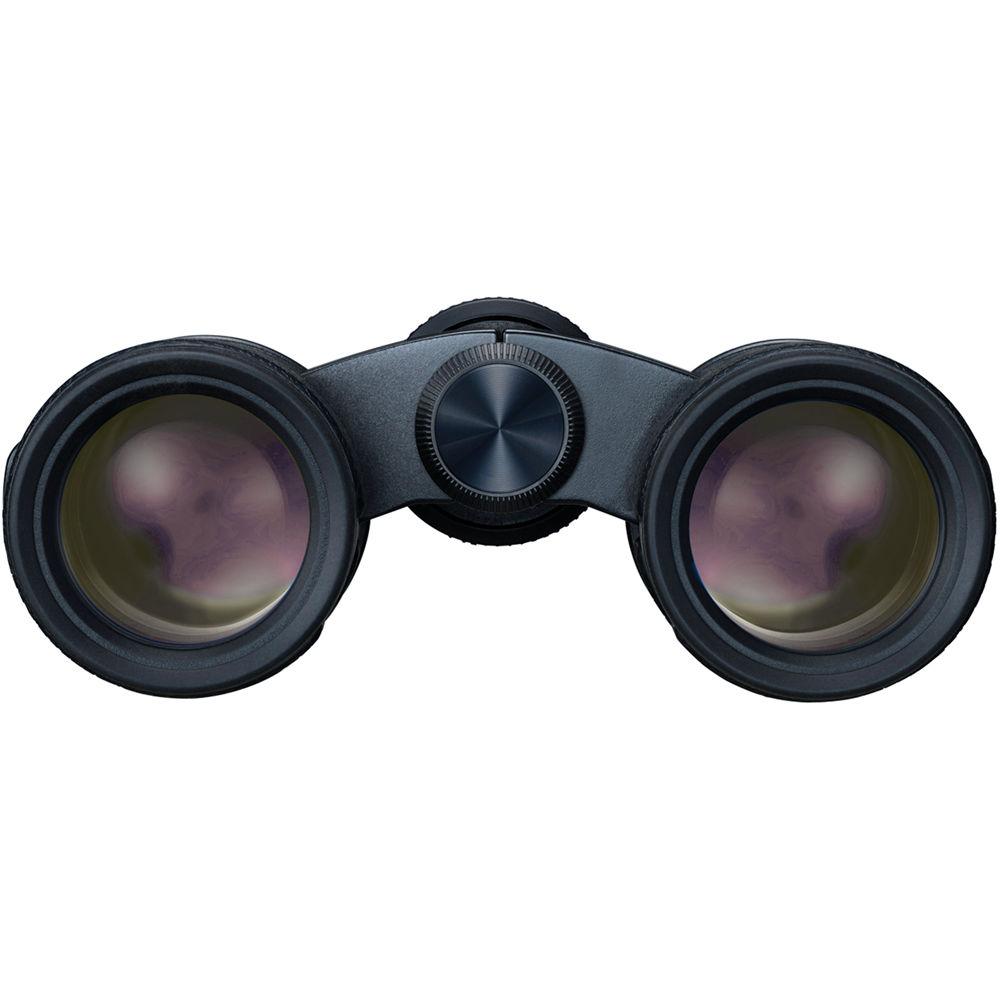

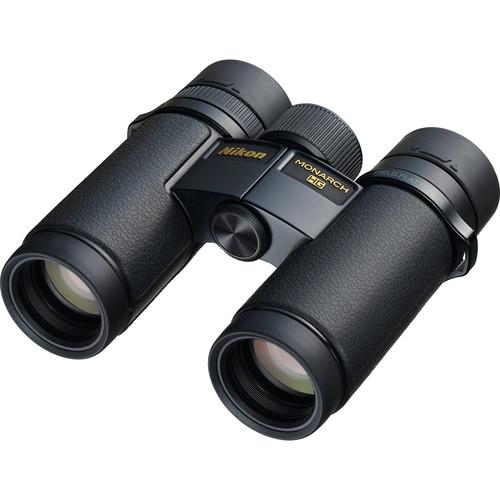

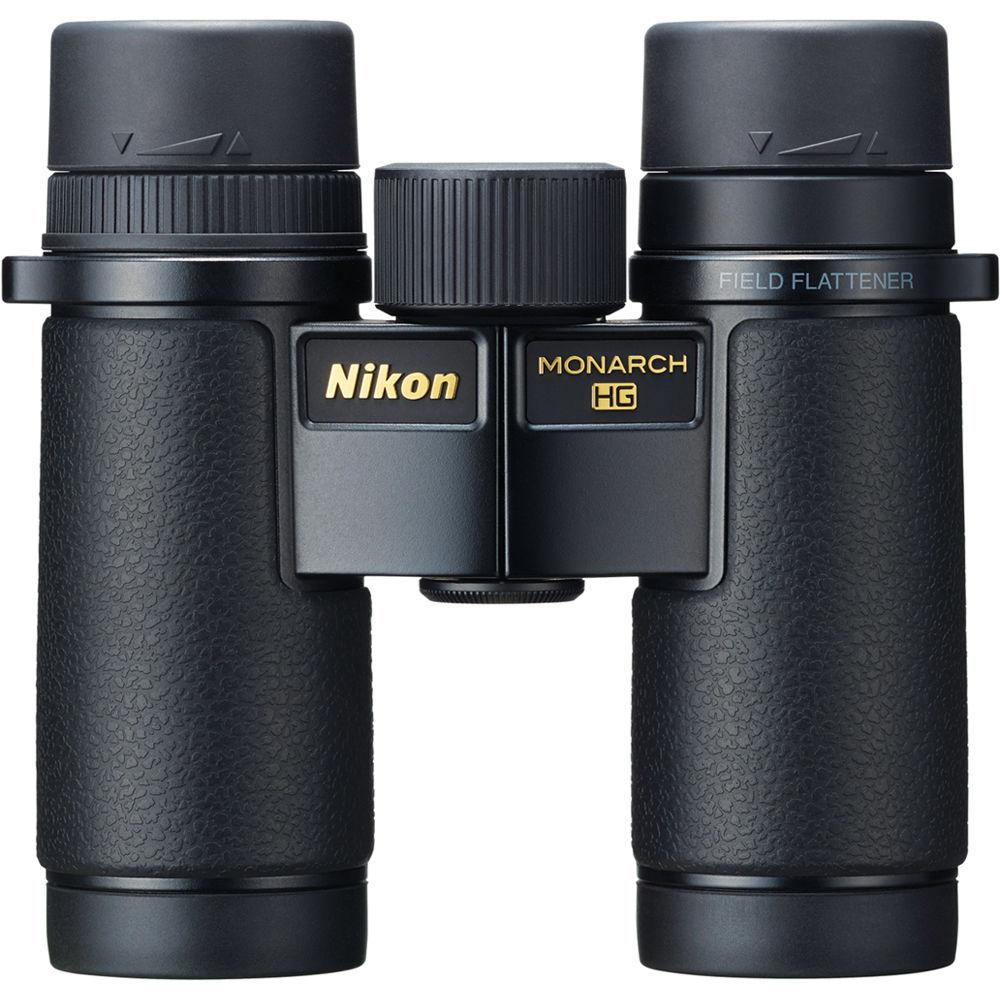

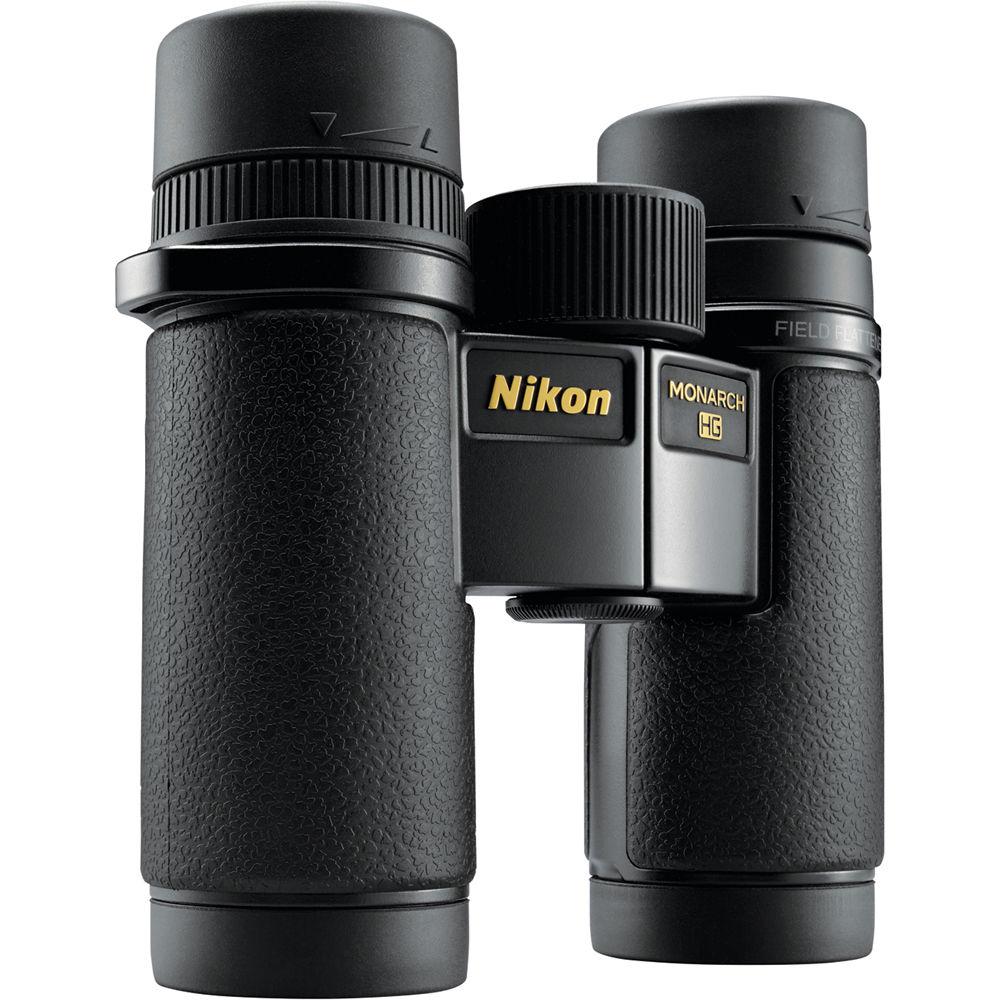

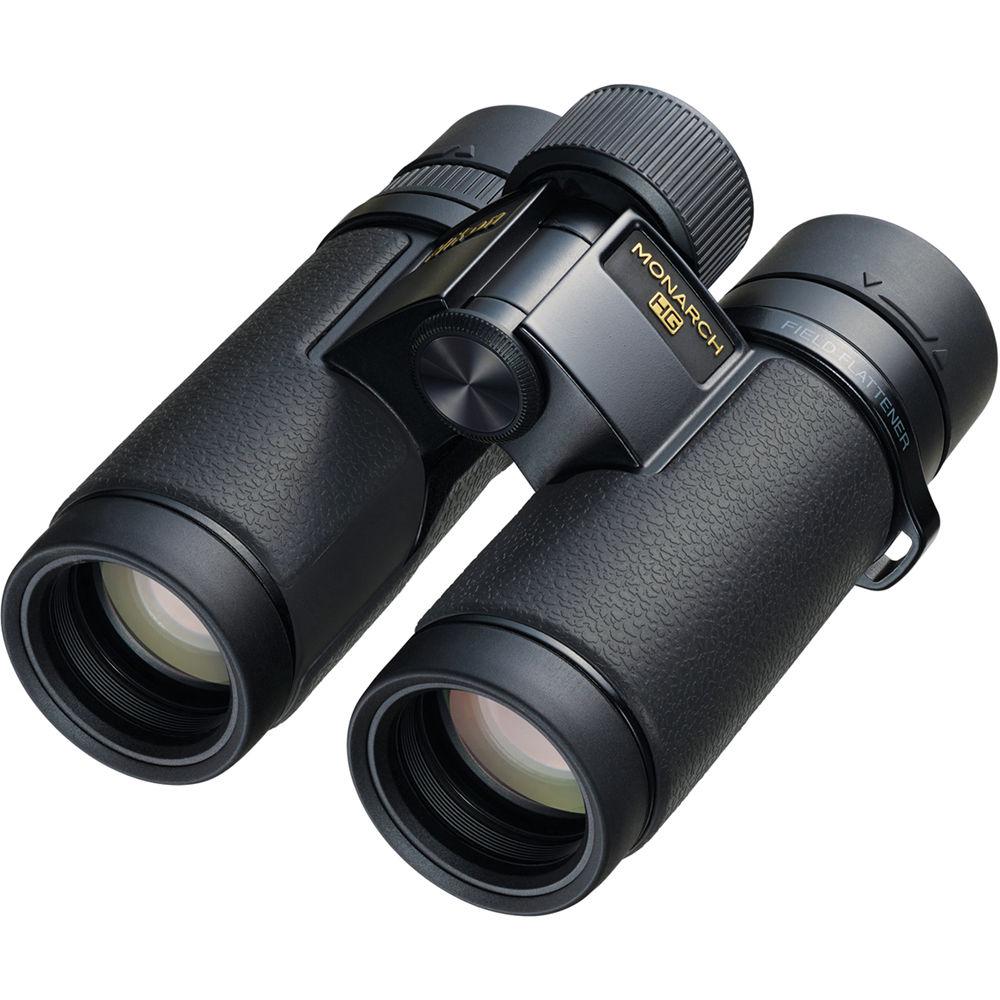

User Manual for Nikon 10x30 Monarch HG Binoculars Click to enlarge the picture
Contents of the user manual for the Nikon 10x30 Monarch HG Binoculars
- Product category: Binoculars Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon Binoculars
 |
User manual for the Nikon 10x30 Monarch HG Binoculars contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Taking its place among Nikon's flagship series, the 10x30 Monarch HG Binocular is an ideal alternative to the larger 42mm models for those who need to move fast and light, but don't want to compromise performance. Like all HG models, the 10x30 is engineered with a powerful magnification for observing distant subjects such as large game or marker buoys and complementary technologies that produce an optic built to perform in all light conditions and survive the harshest environments.First of these technologies is the use of lead- and arsenic-free extra-low dispersion (ED) glass in the lens elements to correct chromatic and spherical aberrations. Next are phase-corrected and dielectric-coated roof prisms, which further limit internal light loss and interference and improve image contrast. The optical path is fully multi-coated with anti-reflection coatings, which increase light transmission, image contrast, and sharpness and provide true color rendition. Finally is the use of Nikon's field-flattener lens system, which eliminates the distortion common at the edges of the lenses, producing crisp details along the far periphery of the wide field of view. This all translates to bright and clear, high-contrast images with accurate color across the spacious field of view with a reduced appearance of visible hand shake—especially at low light such as early morning and late evening, and under heavily overcast skies.The chassis is built with a short bridge design, which provides more gripping surface and helps to reduce the overall weight—this is especially important on an optic that measures just 4.7" in length. Made to survive use outdoors, the optical tubes are nitrogen filled and O-ring sealed to make them not only fogproof when moving between extreme temperature changes, but also waterproof and submersible. The exterior has textured, rubberized panels that protect against knocks and drops and offers a slip-resistant grip for sure handling in cold and wet conditions. Nikon includes tethered objective lens covers to ensure they cannot be lost easily and are ready for use at a moment's notice.Engineered for durability and performance, the 30mm Monarch HG is an excellent choice for those who are looking to reduce the size and weight of their binocular without compromising performance. - Optical Performance
-
- High 10x magnification draws distant subjects in close for detailed observations on land and sea
- Smaller 30mm objective lens diameter reduces the overall form factor and weight versus larger objective models without significantly compromising light gathering or performance
- Roof prism light path helps to maintain a slim profile for easier and more comfortable handling
- Extra-low dispersion glass reduces chromatic and spherical aberrations for increased contrast and improved color rendition and sharpness without distortion across the entire field of view
- Highly reflective dielectric prism coatings minimize internal light loss to maintain image brightness and improve contrast and clarity
- Phase-corrected prisms eliminate internal interference in the light path to improve contrast and resolution
- Anti-reflection, fully multi-coated optics produce bright, high-resolution images
- Field-flattener lens system corrects lens-edge distortion for clearer views at the edge of the field of view
- Wide 62° apparent angle of view produces an immersive observational experience with less disorientation when used on rough or rolling seas and minimized appearance of visible hand shake common when holding high-power optics
- Generous 362' field of view at 1000 yards
- Use and Handling
-
- Short bridge provides a solid and stable platform for the internal focusing mechanism
- Large slip-resistant center focusing wheel is easy to manipulate, even while wearing gloves
- Locking right-eye diopter allows users to firmly set adjustment to compensate for individual optical prescription and improve focus sharpness
- Broad 56-74mm interpupillary distance adjustment range enables easy use by a wide variety of users
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter enables hands-free use and reduces vibrations and arm fatigue
- 15.2mm eye relief makes viewing more comfortable with less eyestrain, especially during long-duration glassing sessions
- 3mm exit pupil
- Construction Details
-
- Environmentally friendly lead- and arsenic-free Eco-Glass used in all lenses and prisms
- Bridge configuration presents more surface area for hands to give it a more comfortable feel in the hand and a more secure grip
- Lightweight and strong magnesium-alloy chassis helps to reduce fatigue when wearing the binocular around the neck or holding it up to the eyes
- Slim body profile, short bridge, and protective rubber panels provide ample room for a secure and comfortable grip in all conditions
- Scratch-resistant coatings on objective and eyepiece lenses protect lenses from blowing sand, dirt, and debris
- Nitrogen filled and O-ring sealed to make it waterproof and submersible to a depth of 16.4' (5m) for up to 10 minutes, while being resistant to internal fogging when moving through extreme changes in temperature or environmental conditions such as at low-pressure altitudes
- Tethered objective lens caps ensure protection without the chance of losing them
Lightweight design weighs less than 1 pound

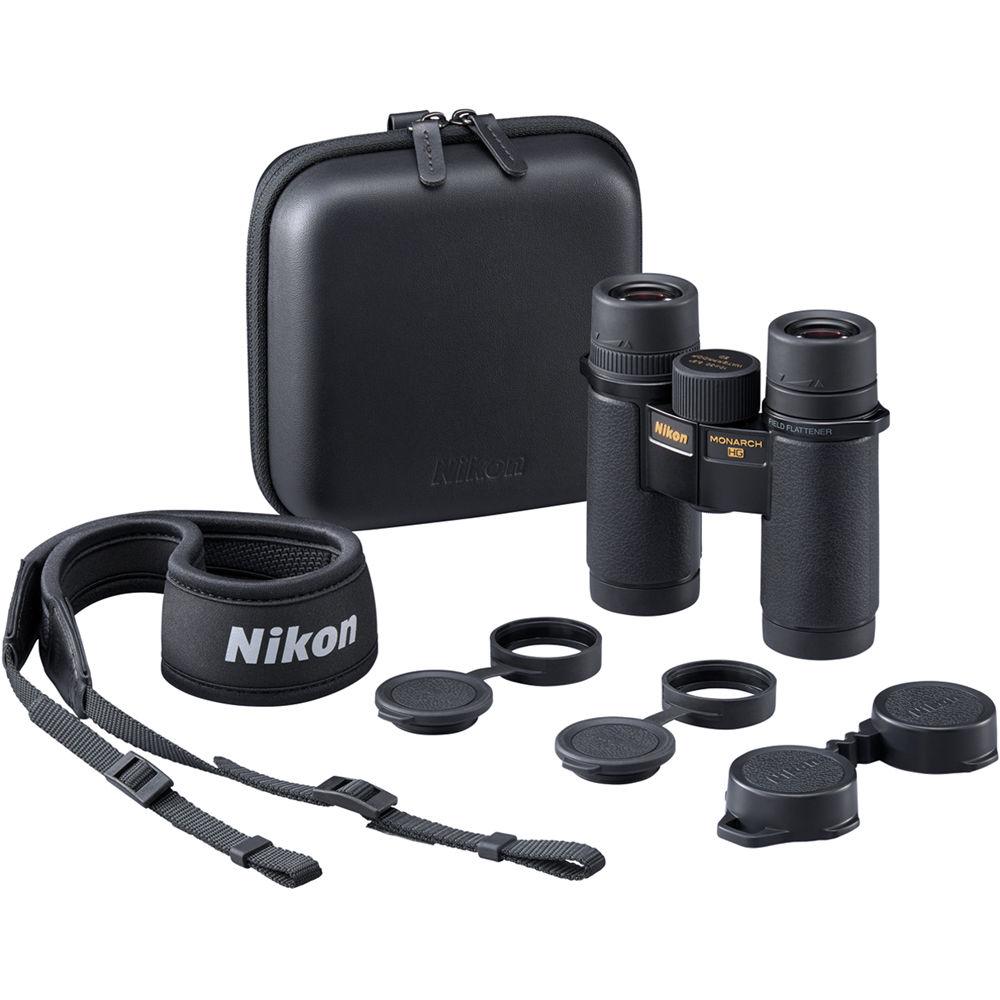

UPC: 018208165766 In the Box Nikon 10x30 Monarch HG Binoculars Carrying Case Neoprene Neck Strap 2 x Tethered Objective Lens Cover Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 tycrwxacferbrxcydrwsue A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon 10x30 Monarch HG Binoculars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon Monarch HG Specs | Prism Type | Roof | | Magnification | 10x | | Objective Lens Diameter | 30 mm | | Angle of View | 6.9° (Actual) | | Field of View | 362.0' @ 1000 yd / 120.2 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 3 mm | | Eye Relief | 15.2 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 4.7 x 5.0" / 11.9 x 12.6 cm | | Weight | 15.87 oz / 450.0 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 9.2 x 6.5 x 3.6" |
