User Manual for Nikon 10x42 LaserForce Rangefinder Binocular Click to enlarge the picture
Contents of the user manual for the Nikon 10x42 LaserForce Rangefinder Binocular
- Product category: Laser Rangefinders Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon Laser Rangefinders
 |
User manual for the Nikon 10x42 LaserForce Rangefinder Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|

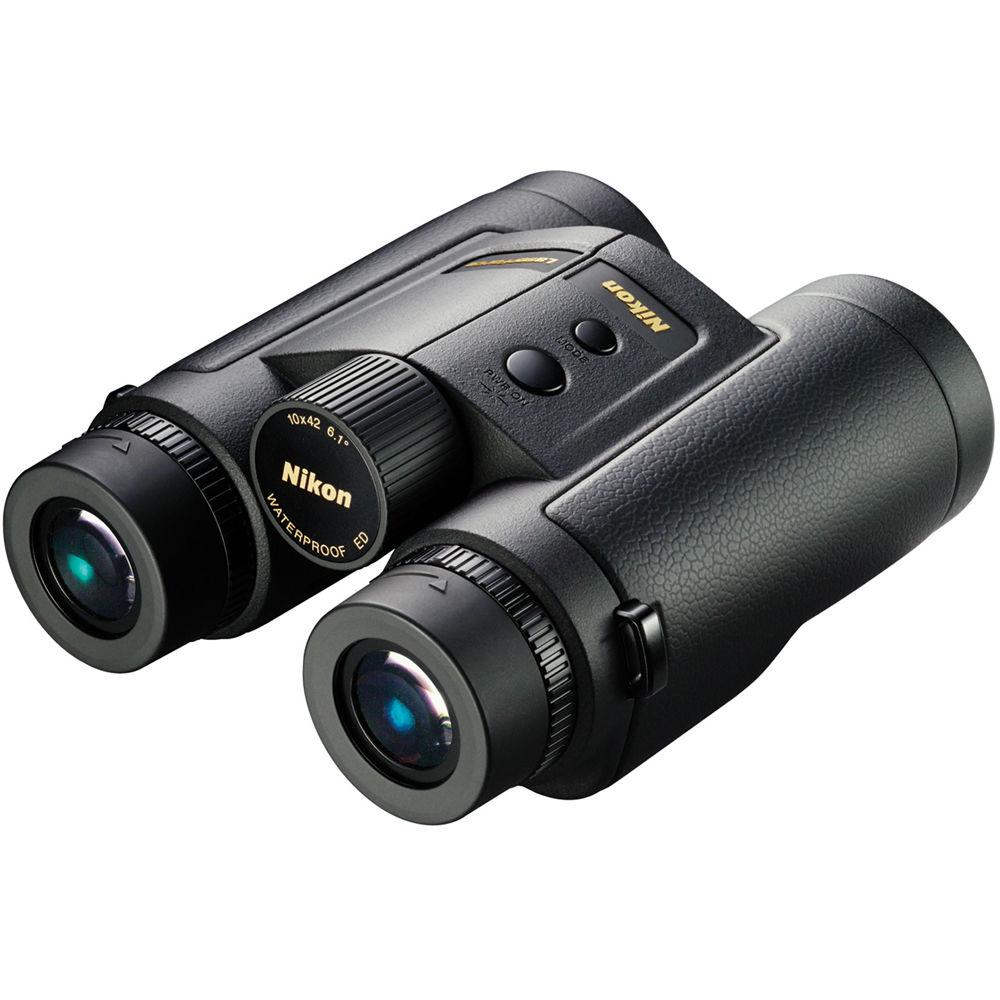

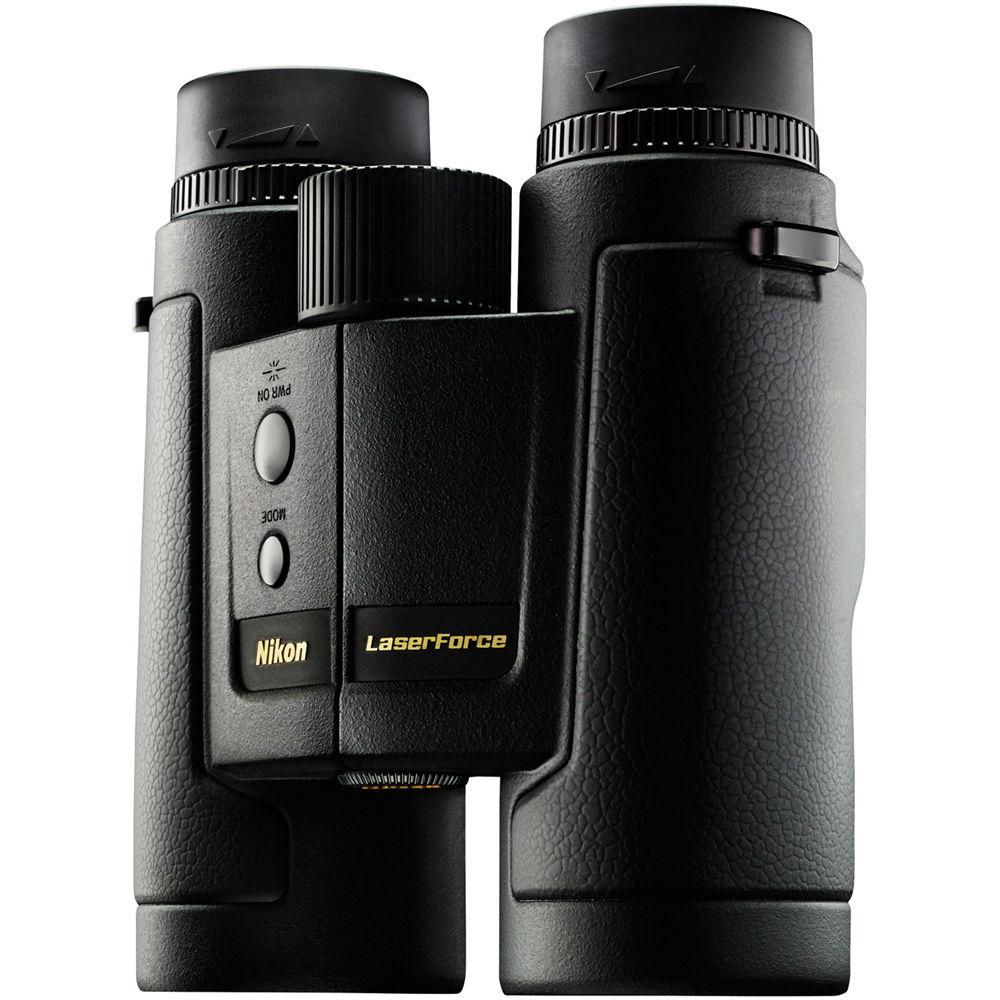

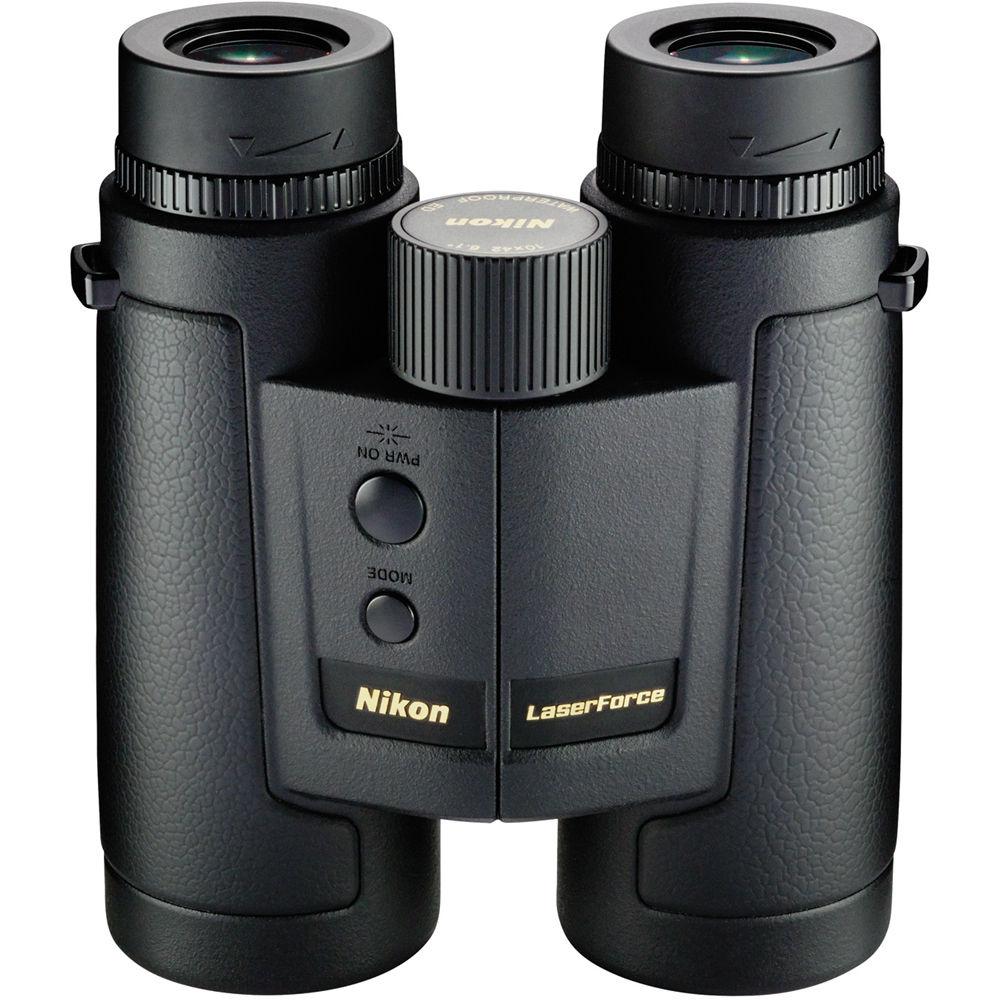

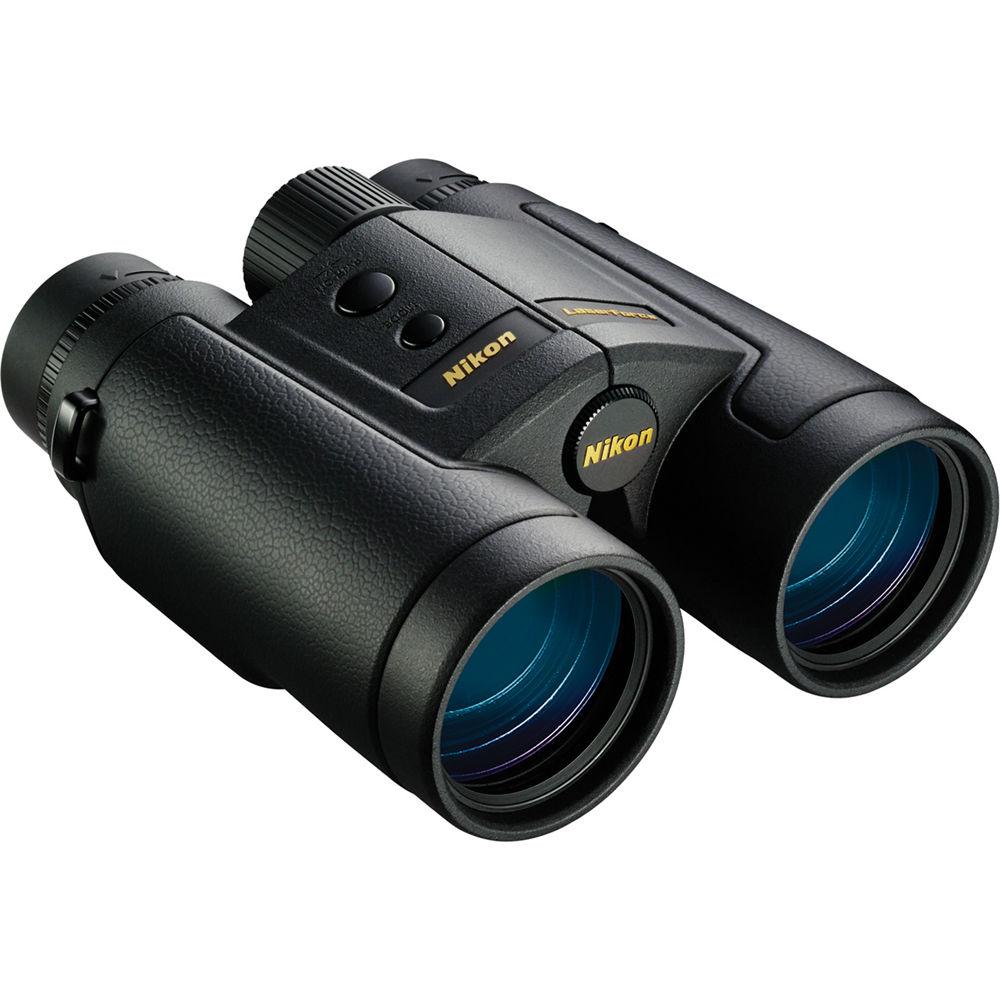

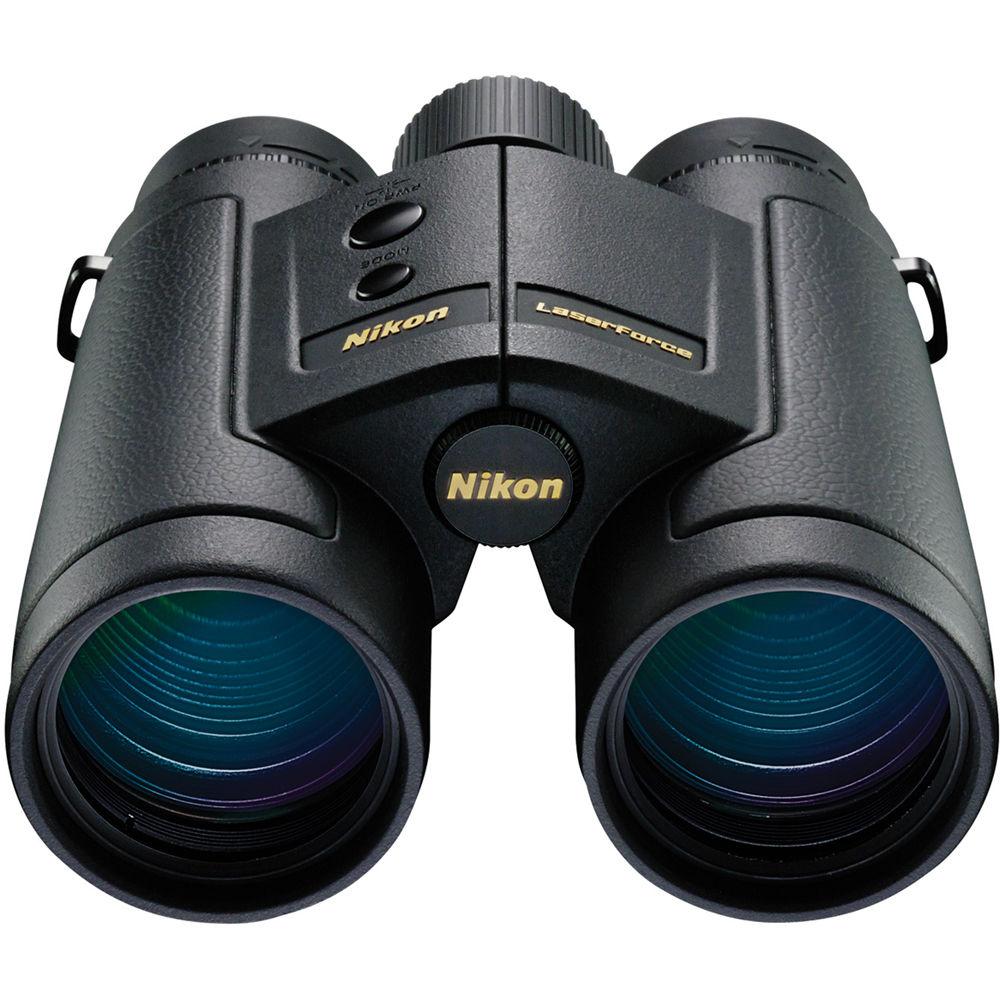

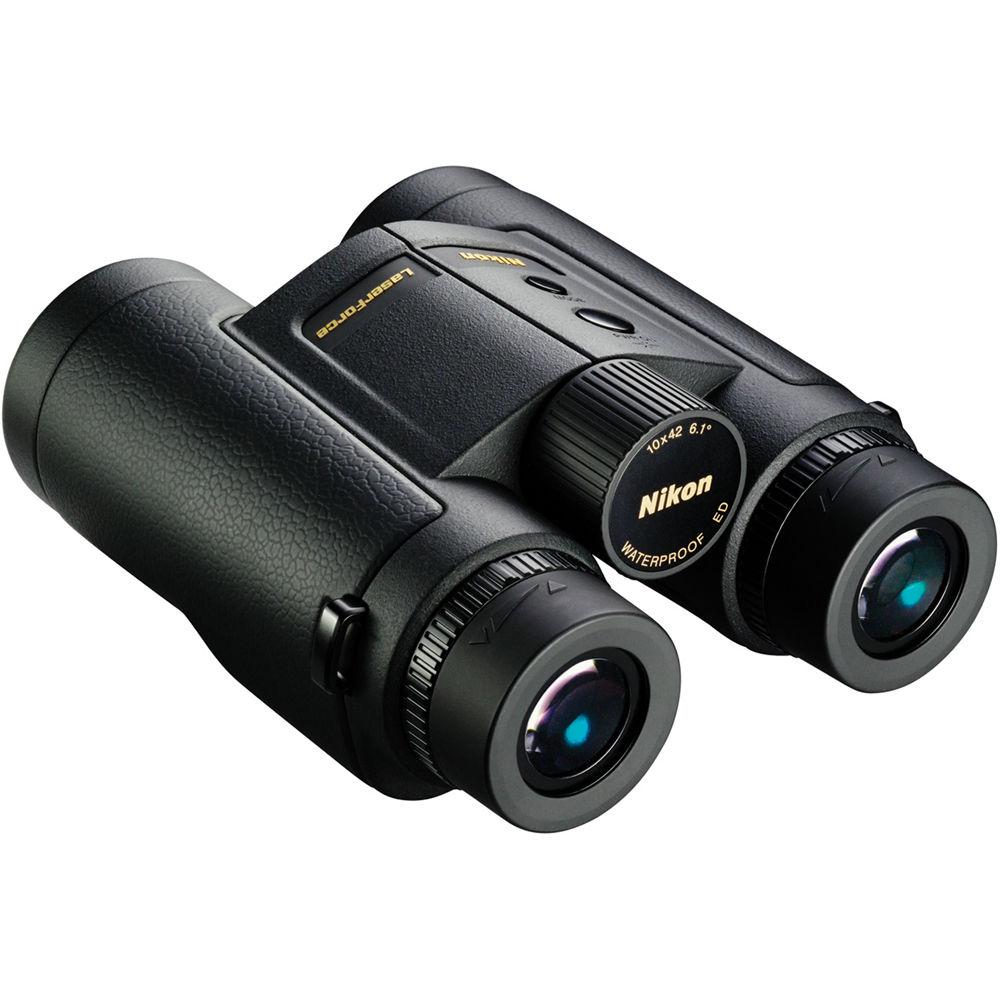

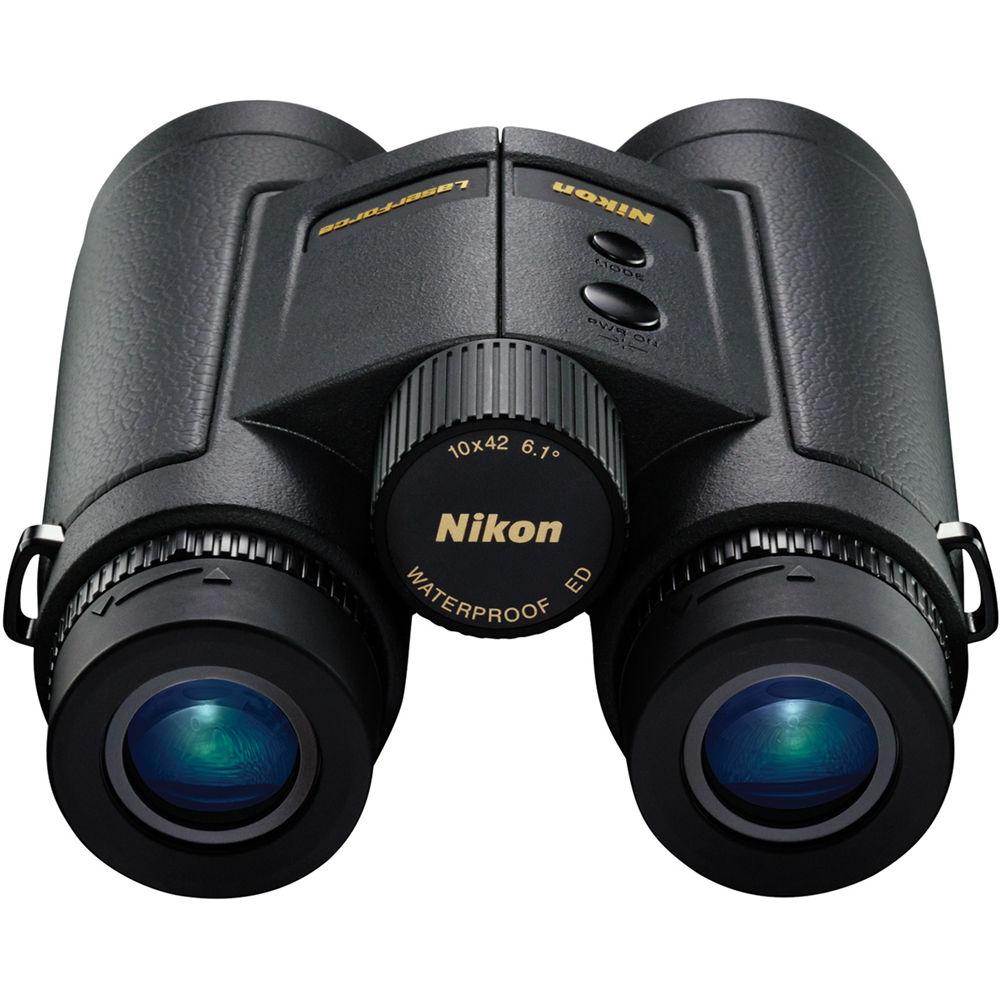

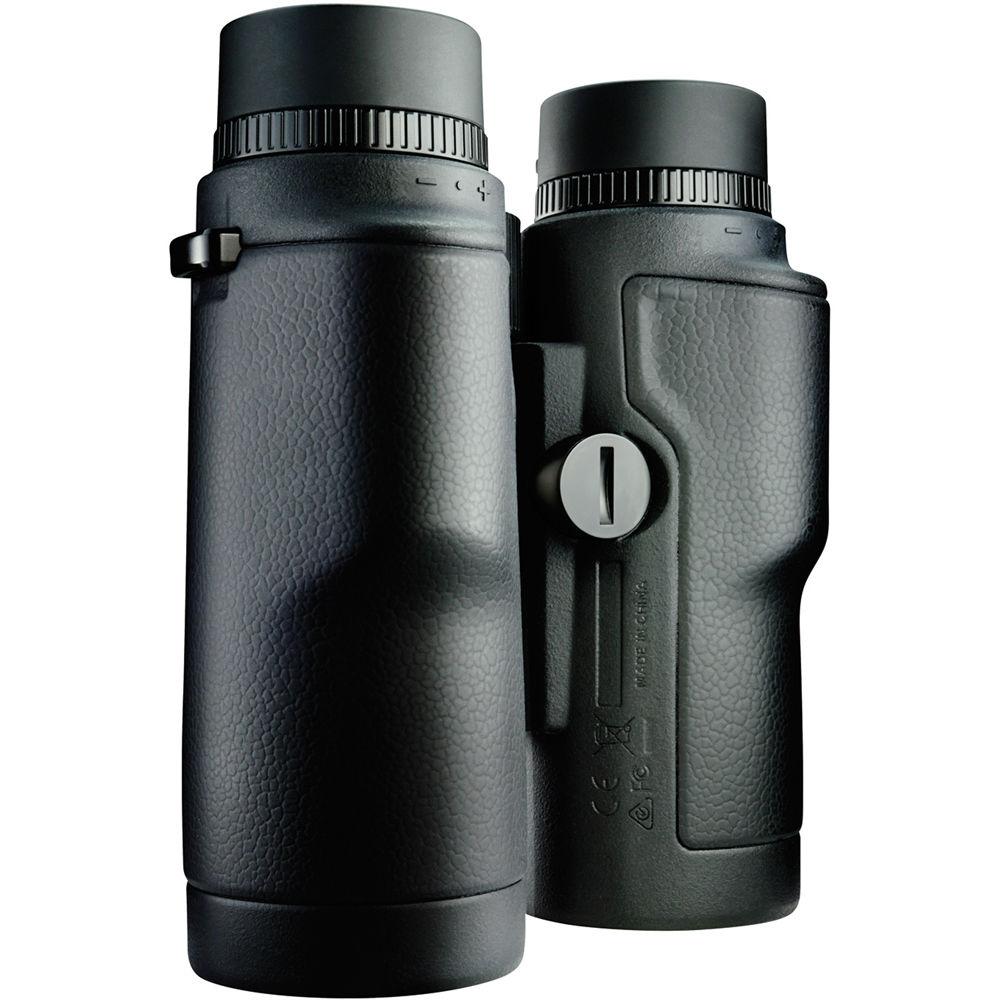

Product description Combining a powerful ranging tool with an all-weather optic, the Nikon 10x42 LaserForce Rangefinder Binocular is a multi-tasker that will be a valuable addition to your hunting kit. The integrated rangefinder measures distances from 10 to 1900 yards in less than a second, and displays it directly in your line of sight. A built-in inclinometer measures the relative angle to your target and can calculate an adjusted distance to increase your shot precision. To range a single subject the LaserForce has a spot feature, and for moving targets or to range multiple targets quickly, simply hold the laser button down for continuous measurements.Optically, the LaserForce is configured with the popular combination of 10x magnification and 42mm objectives. This combination allows you to make detailed observations at distance with competent low-light capability, without being too large and bulky. Equipped with lead and arsenic-free extra low-dispersion (ED) glass elements and anti-reflection multi-coatings on all lens surfaces, images are crisp and clear with accurate color rendition and increased contrast. A long eye relief, comfortable exit pupil, and wide viewing angle provide an easy and immersive observational experience.Engineered to survive in extreme conditions, the LaserForce has a lightweight and durable aluminum alloy chassis that is nitrogen-filled and O-ring sealed to be water and fogproof. The optical tubes are wrapped in protective rubberized armoring that provides a slip-resistant grip, especially in cold and wet weather. For long days in the field, the LaserForce can be tripod mounted with an optional adapter to reduce arm fatigue or to leave both hands free, and a large, knurled center focus wheel is easy to manipulate even while wearing gloves. - Optical Performance
-
- 10x magnification
- 42mm objectives
- Compact roof prism optical design
- Extra low-dispersion glass reduces chromatic and spherical aberrations for increased contrast and improved color rendition and sharpness without distortion across the entire field of view
- Anti-reflection fully multi-coated optics to produce bright, high resolution images
- 320' field of view at 1000 yards
- Wide 61° apparent angle of view
- Long 15.5mm eye relief
- Comfortable 4.2mm exit pupil
- Laser Rangefinder
-
- Displays distance in yards and meters
- Range: 10 to 1900 yd (41 to 1737m)
- Spot mode for range to single subject
- Scan mode for continuous measurement to multiple or moving targets
- Displays distance to 100 y/m in 0.1 y/m increments, and 1 y/m over 100 yd/m
- Class 1 eye-safe infrared laser
- Calculates and displays range in 0.8 sec
- Inclinometer measures the shooter's angle relative to the target ±89°
- Displays adjusted horizontal distance taking upward or downward angle into account for more precision
- Simple and intuitive two-button right-hand user interface
- Automatic shut-off after 8 seconds of non-use
- Runs on one CR123 battery
- Use and Handling
-
- Closed-bridge configuration
- Large knurled center focus wheel
- Right-eye dioptric correction
- 58-72mm interpupillary adjustment range
- Twist-up click-stop rubber eyecups for use with or without eyewear
- Tripod mountable with optional adapter
- Construction Details
-
- Lightweight aluminum alloy housing
- Slip-resistant and protective rubber armoring
- Nitrogen-filled and O-ring sealed for a water and fogproof performance
- Environmentally-friendly lead-and-arsenic-free glass used in all lenses and prisms
- 30.9-oz weight
UPC: 018208162123 In the Box Nikon 10x42 LaserForce Rangefinder Binocular Carrying Case Neck Strap 2 x Objective Caps One-Piece Ocular Raincap CR2 Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon 10x42 LaserForce Rangefinder Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon 16212 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.1° (Actual) | | Field of View | 320.0' @ 1000 yd / 106.2 m @ 1000 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 15.5 mm | | Interpupillary Adjustment | 58 to 72 mm / 2.3 to 2.8" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.8 x 5.2" / 14.7 x 13.2 cm | | Weight | 30.9 oz / 876 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 9.8 x 7.0 x 4.4" |
